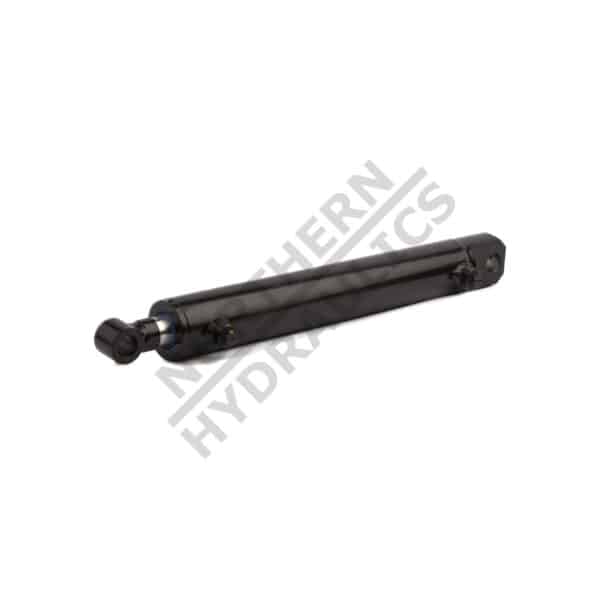

2.5" bore x 20" stroke hydraulic cylinder with 3500 PSI, heavy-duty welded design, ideal for various applications. Free shipping available!
Specifications
| Weight | 32 lbs |
|---|---|
| Dimensions | 32 × 4 × 4 in |
| Cylinder Bore | 2.5" |
| Cylinder Stroke Ranges | 20 |
| Cylinder Extended Length | 49 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 29 |
| Cylinder Port Size | ORB – 8 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.87 in |
| Cylinder Rod Diameter | 1.5 in |
| Cylinder Overall Length | 30.69 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 14,700 lbs |
| Cylinder Oil Volume | 1.7 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Narrow Tube |
| Cylinder Action | Double Acting |
Overview
- Dimensions: 2.5″ bore, 20″ stroke, with an overall length of 30.69″ and a retracted length of 29″.
- Weight: 32 LBs.
- Pressure Rating: 3500 PSI, suitable for heavy-duty tasks.
- Load Capacity: Column load of 14,700 LBs for demanding applications.
- Oil Volume: Requires 1.7 QTs of oil for optimal performance.
- Rod Type: Features a durable chrome-plated rod for enhanced longevity.
- Action: Double acting for efficient and versatile use.
- Style: Welded design ensures durability and reliability.
- Ports: Equipped with SAE 8 ports for easy connections.
- Rod End: Narrow tube configuration for easier installations.
NOTE: Proper measurements and application types are crucial to prevent misuse, which is not covered under warranty.
Same-Day Shipping: All orders placed by 3 PM are shipped the same day (excluding weekends and holidays).
Enjoy Free Ground Shipping within the Continental U.S.
All cylinders are Tariff-FREE and Made in Europe.
If you need assistance choosing the right hydraulic cylinder replacement, feel free to contact us at (800) 823-4937.
