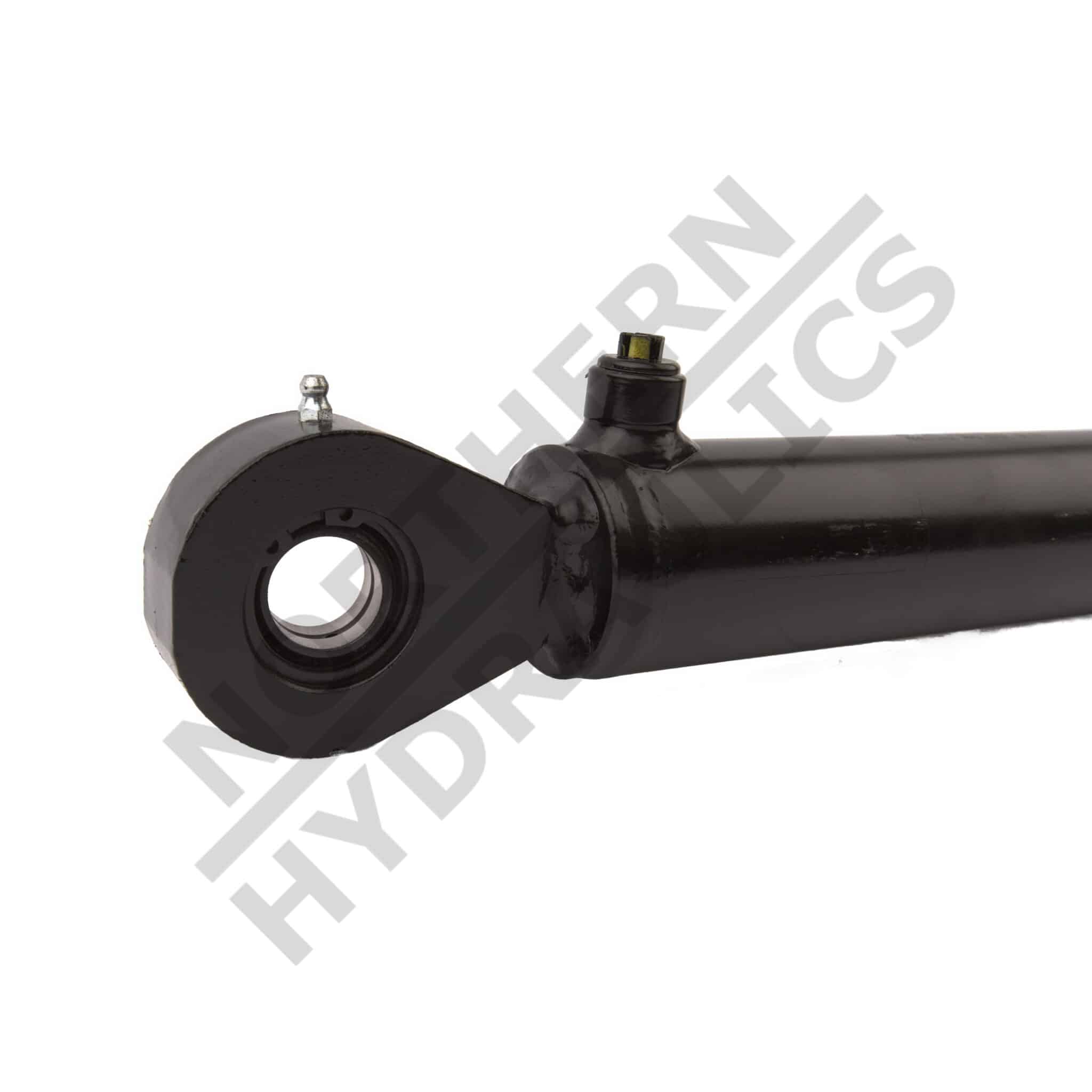

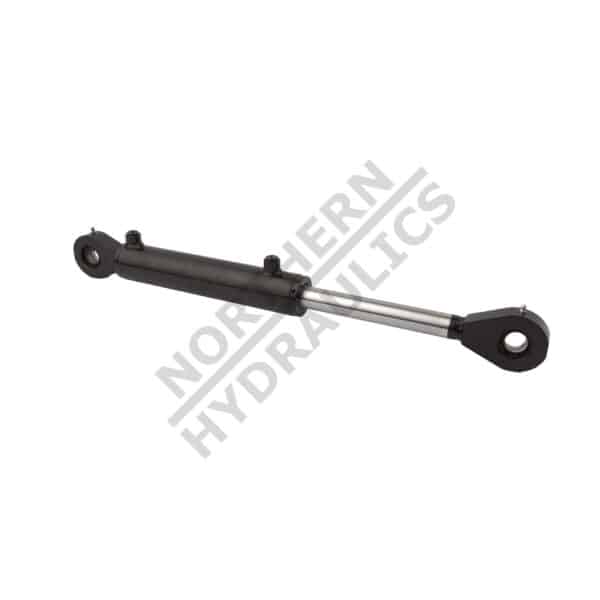

2.38″ bore x 8″ stroke double acting hydraulic cylinder rated at 3500 PSI. High performance, built for heavy-duty use. Free shipping on orders!
Specifications
| Weight | 16 lbs |
|---|---|
| Dimensions | 20 × 4 × 4 in |
| Cylinder Bore | 2" |
| Cylinder Stroke Ranges | 8 |
| Cylinder Extended Length | 26 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 18 |
| Cylinder Port Size | ORB – 6 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.38 in |
| Cylinder Rod Diameter | 1.25 in |
| Cylinder Overall Length | 20.87 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 9,400 lbs |
| Cylinder Oil Volume | 0.43 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Spherical Bearings |
| Cylinder Action | Double Acting |
Overview
- Product Name: Double Acting Hydraulic Cylinder
- Bore Size: 2.38 inches
- Stroke Length: 8 inches
- Pressure Rating: 3500 PSI
- Overall Length: 20.87 inches
- Extended Length: 26 inches
- Retracted Length: 18 inches
- Column Load: 9,400 lbs
- Oil Volume: 0.43 quarts
- Rod Type: Chrome Plated
- Rod Diameter: 1.25 inches
- Style: Welded
- Ports: SAE 6
- Unique Features: Spherical bearings for enhanced performance and durability in heavy-duty applications.
NOTE! Ensure you follow the correct specifications to avoid damage; warranty does not cover misuse.
Same-Day Shipping: All orders placed before 3 PM will be shipped the same day (excluding weekends and holidays).
Free Ground Shipping for Continental US!
Tariff-FREE cylinders, manufactured in Europe.
If you need assistance selecting the right hydraulic cylinder replacement, don’t hesitate to reach out to us at: (800) 823-4937
2.38″ Bore x 8″ Stroke Hydraulic Cylinder | Northern Hydraulics
SKU: WSEN2x8
$202.17 -8% $186.00
1+
$ 186.00/piece
4+
$ 176.70/piece
-5%
8+
$ 167.40/piece
-10%
33 viewed in the last 24 hours
In stock Expected delivery between Oct 13 - Oct 20
No sales tax
Free shipping
