3.5" bore x 20" stroke hydraulic cylinder, double acting 3500 PSI. Heavy-duty with 28,800 LBs load capacity. Free shipping across the Continental US!
| Weight | 43.0 lbs |
|---|---|
| Dimensions | 32 × 5 × 5 in |
| Cylinder Bore | 3.5" |
| Cylinder Stroke Ranges | 20 |
| Cylinder Extended Length | 48 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 28 |
| Cylinder Port Size | ORB – 8 |
| Manufacturer | MagisterHyd |
| Cylinder Outer Diameter | 3.86 in |
| Cylinder Rod Diameter | 1.75 in |
| Cylinder Overall Length | 29.7 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 28,800 lbs |
| Cylinder Oil Volume | 3.33 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Pin Hole |
| Cylinder Action | Double Acting |
Introducing the 3.5 Bore x 20 Stroke Hydraulic Cylinder:
Designed for performance and reliability, this robust hydraulic cylinder from Northern Hydraulics offers superior strength and durability for your industrial applications. With a double-acting design, this cylinder is engineered to handle heavy loads while ensuring seamless operation.
- Specifications:
- Bore Size: 3.5 inches
- Stroke Length: 20 inches
- Overall Length: 29.7 inches
- Extended Length: 48 inches
- Retracted Length: 28 inches
- Pressure Rating: 3500 PSI
- Column Load Capacity: 28,800 LBs
- Oil Volume: 3.33 QTs
- Unique Features:
- Chrome Plated Rod for enhanced durability.
- Double Acting action for better movement control.
- SAE 8 Ports for easy connection to hydraulic lines.
- Welded design for maximum strength and reliability.
- Pin Hole rod end for versatile applications.
NOTE! Ensure correct measurement and application to avoid bent rods, which are not covered under warranty!
Same-Day Shipping: All orders placed before 3 PM are shipped the same day (excluding weekends and holidays).
Free Ground Shipping: Enjoy free shipping across the Continental US.
Made in Europe: Quality craftsmanship and materials.
If you require assistance in choosing the right hydraulic cylinder replacement, feel free to contact us at (800) 823-4937.
Trusted Manufacturing Partnership
This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.

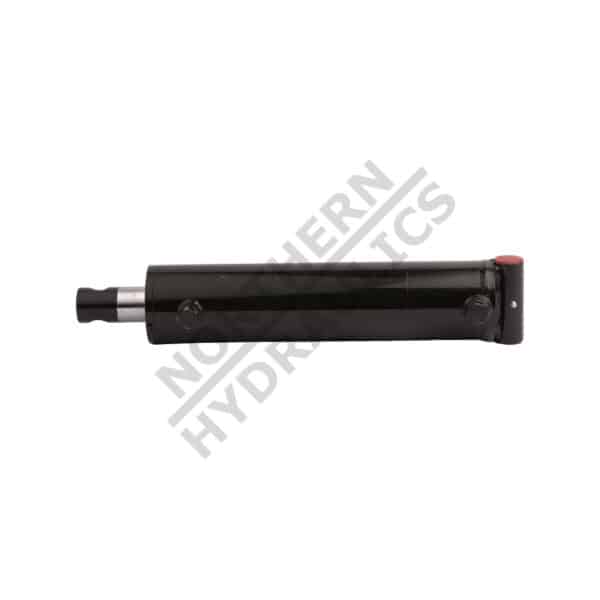

3.5 Bore x 20 Stroke Hydraulic Cylinder | Magister
