Specifications

Weight	2.42 lbs
Dimensions	6 × 4 × 4 in
Industrial Fittings	Pneumatic
Manufacturer	Pioneer

Overview

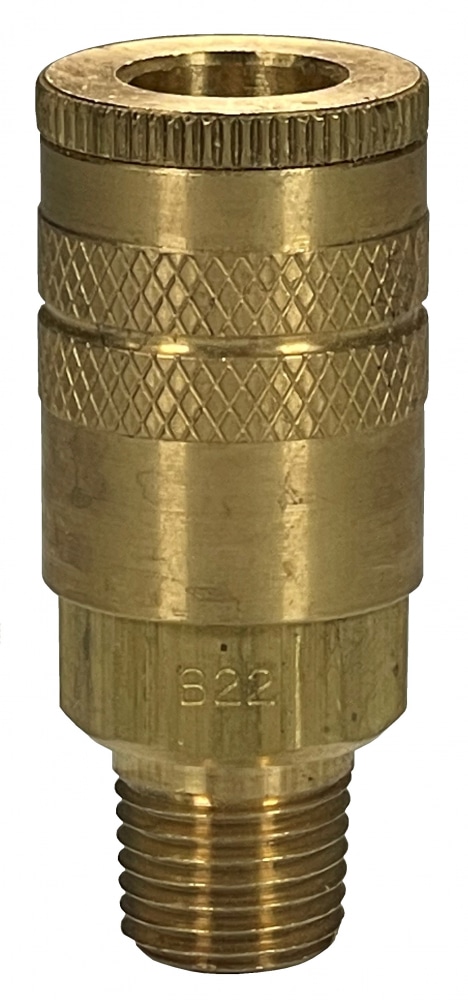

10 Series Couplers (pneumatic) up to 300 psi connect with 10 Series Nipples, Tru-Flate design, also known as the automotive interchange. They have manual sleeves and are single shut-off quick couplings. Couplers have an integral sleeve guard to resist accidental disconnection. The steel tubular valve delivers high airflow with minimal pressure drop. Couplers and Nipples are available in various sizes and materials to be versatile for multiple applications with air or fluid pressures up to 300 psi.

Specifications

Thread: 1/4″ MNPT

Body Size: 1/4″

Maximum Operating Pressure: 300 PSI

Temperature Min and Max: -40°F to 250°F

Seal Type: Nitrile

SKU: B22
