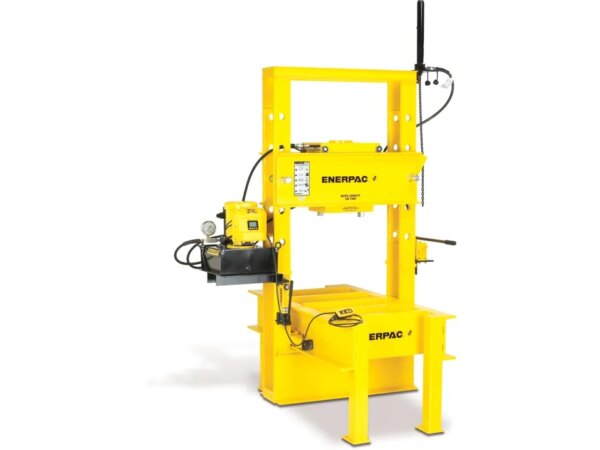

Enerpac IPR-Series 50 ton roll frame press.

Specifications
Weight 2535 lbs
Dimensions 129 × 86 × 88 in
Hydraulic Presses

Roll Frame Presses

Manufacturers

Enerpac

Overview

Contact Us For Current Availability



IPR-5075 Specifications:

Maximum Operating Pressure (psi): 10,000

Capacity (imperial tons): 50

Maximum Vertical Daylight (in): 37.12

Maximum Bed Width (in): 28.75

Pump Model Number: ZE4420SBN

Cylinder Model Number: RR5013

Cylinder Type: Double-Acting, Hydraulic Return

Cylinder Stroke (in): 13.13

Rapid Advance Speed Sec (in): 1

Pressing Speed Sec (in): 11.1

Vertical Daylight Minimum A (in): 6

Vertical Daylight Maximum A (in): 37.12

Weight (lbs): 1961


Enerpac IPR-Series Press Brochure

IPR-5075 Measurements:

  • Dimension (B)- 20.71 in. / 526 mm
  • Dimension (C)- 38.25 in. / 971 mm
  • Dimension (D)- 10.38 in. / 264 mm
  • Dimension (E)- 28.74 in. / 730 mm
  • Dimension (F)- 36.75 in. / 933 mm
  • Dimension (G)- 5 in. / 127 mm
  • Dimension (H)- 55.92 in. / 1420 mm
  • Dimension (J)- 64 in. / 1626 mm
  • Dimension (K)- 8 in. / 203 mm
  • Dimension (L)- 10.63 in. / 270 mm
  • Dimension (M)- 30 in. / 762 mm
  • Dimension (N)- 112.96 in. / 2870 mm

Enerpac IPR-10075 100 Ton Roll Frame Pres Scheme Dimensions

Enerpac IPR-5075 50 Ton Roll Frame Press
