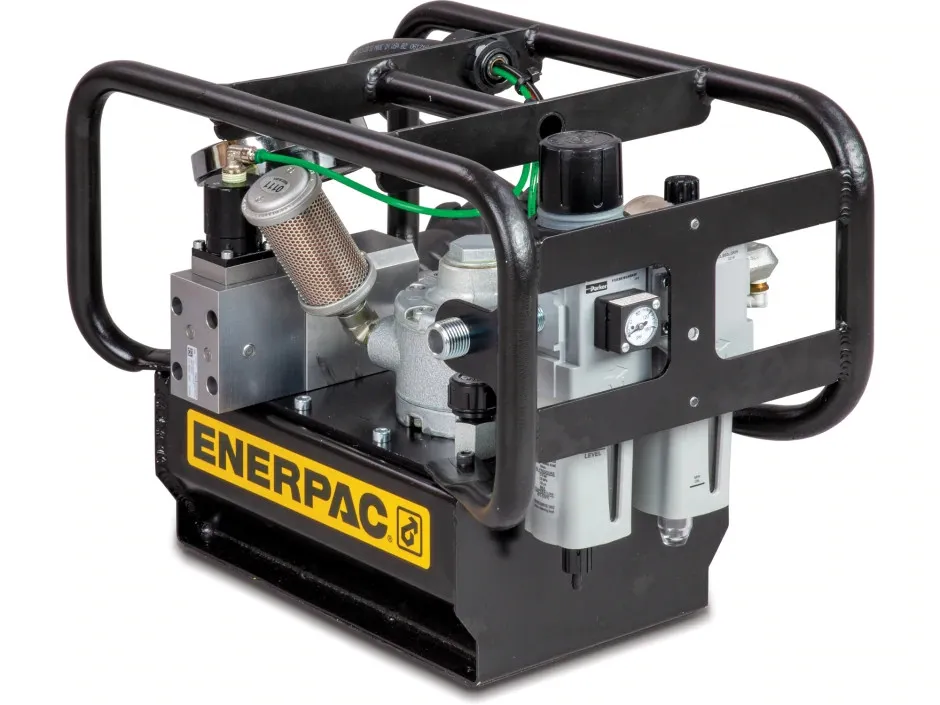

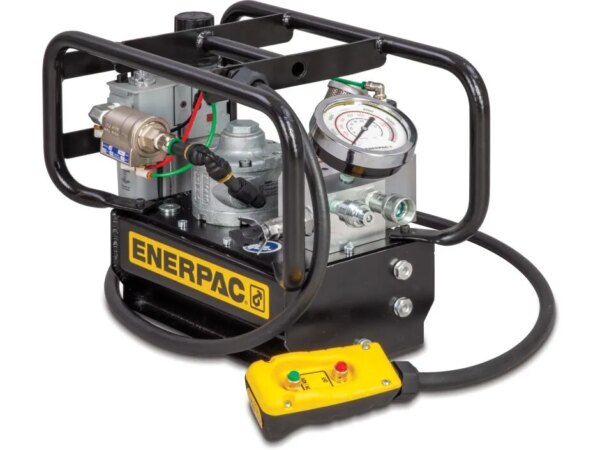

Enerpac LA2504TX-QR, Two Speed, Lightweight Air Hydraulic Torque Wrench Pump, 0.5 gal Usable Oil, For Use With Enerpac Hydraulic Torque Wrenches
Specifications
| Weight | 49 lbs |
|---|---|
| Dimensions | 18 × 10 × 15 in |
| Bolting Tools | Pneumatic Torque Wrenches |
| Manufacturers | Enerpac |
Overview
LAT-Series Air Powered Hydraulic Torque Wrench Pumps
LA2504TX-QR Specifications:
Maximum Operating Pressure (psi): 10,000
For USe With Torque Wrenches: For Use With All Enerpac Torque Wrenches
Reservoir Capacity (gal): 0.8
Usable Oil Capacity (gal): 0.5
Oil Flow per Outlet at 10,000 psi (in³/min): 25
Output Flow Rate (in³/min) at 0 psi: 214
Output Flow Rate (in³/min) at 100 psi: 214
Output Flow Rate (in³/min) at 5000 psi: 34
Output Flow Rate (in³/min) at 10000 psi: 25
Power Source: Air
Pump Control: Pendant
Air Pressure Range (psi): 65 – 100
Air Consumption (scfm): 65
Sound Level (dBa): 87 – 90
Relief Valve Adjustment Range (psi): 2,000 – 10,000
Packaging Dimensions (in): 23 x 22.14 x 18.09
Weight (lbs): 39.6
Dimensions:
- Dimension L x W x H (in): 17.1 x 9.8 x 14.8
Enerpac LA2504TX-QR, Two Speed, Lightweight Air Hydraulic Torque Wrench Pump, 0.5 gal Usable Oil, For Use With Enerpac Hydraulic Torque Wrenches
SKU: LA2504TXQR
$8,069.32 -12% $7,101.00
4 viewed in the last 72 hours
In stock Expected delivery between Sep 15 - Sep 22
No sales tax
Free shipping
