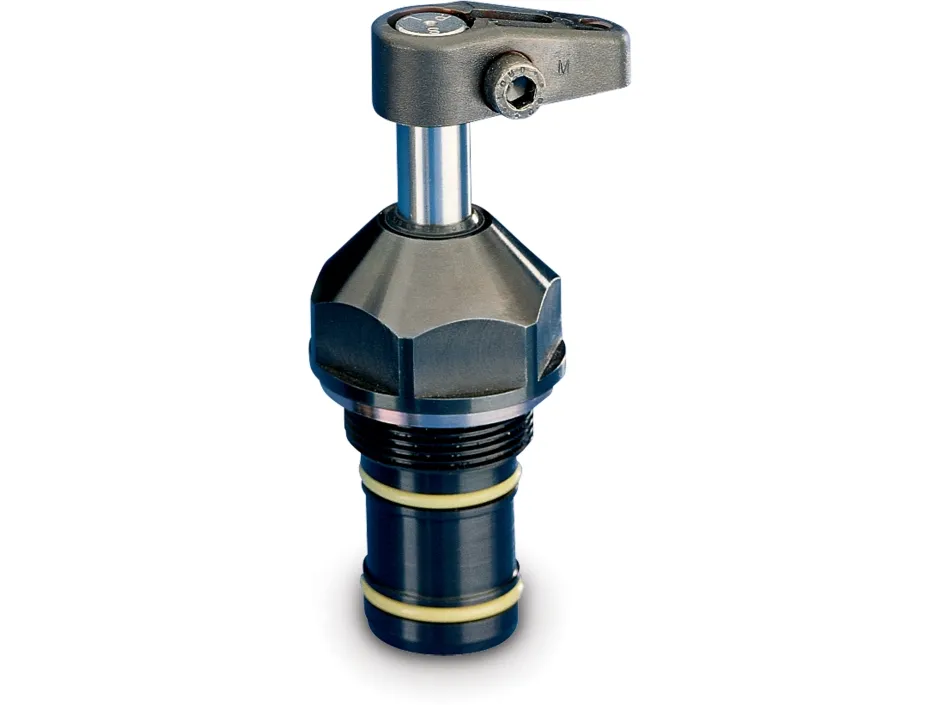

Enerpac SCRS-122 Cartridge Swing Clamp 2400 lbs Force Single Acting Right Turning

Specifications
Weight 5.5 lbs
Dimensions 8 × 4 × 4 in
Work Holding/Clamps

Swing Clamp

Manufacturers

Enerpac

Overview



SCRS-122 Specifications:

Maximum Operating Pressure (psi): 5000

Minimum Operating Pressure (psi): 500

Clamping Force (lbs): 2400

Stroke (in): 1.09

Stroke Clamping (in): 0.5

Mounting Style: Cartridge Model

Return Type: Single Acting

Rotation Direction: Right

Cylinder Effective Area Clamp (in2): 0.63

Oil Capacity Clamp (in3): 0.7

Maximum Oil Flow (in3/min): 100
Standard Clamp Arm: CAS121

Weight (lbs): 5.5

Enerpac SC-Series Swing Clamp Brochure

SCRS-122 Measurements:

  • Dimension (A)- 6.75 in. / 172 mm
  • Dimension (B)-  3.8 in. / 96.5 mm
  • Dimension (C)- 1.52 in. / 38.6 mm
  • Dimension (C1)- 2.61 in. / 66.3 mm
  • Dimension (C2)- 1.43 in. / 36.3 mm
  • Dimension (D1)- 2.99 in. / 75.9 mm
  • Dimension (D2)- 2.25 in. / 57.2 mm
  • Dimension (E)- 2.74 in. / 69.6 mm
  • Dimension (F)- 0.87 in. / 22.1 mm
  • Dimension (J)- M60 x 1.5
  • Dimension (J1)- 0.52 in. / 13.2 mm
  • Dimension (K)- 1.2 in. / 30.5 mm
  • Dimension (P)- 2.03 in. / 51.6 mm
  • Dimension (Q)- .375 – 16 unc
  • Dimension (T)- 2.44 in. / 62 mm
  • Dimension (W)- 2.95 in. / 74.9 mm
Enerpac SCLD-122 Cartridge Swing Clamp 2600 lbs Force Double Acting Left Turning Scheme Dimensions

Enerpac SCRS-122 Cartridge Swing Clamp 2400 lbs Force Single Acting Right Turning
