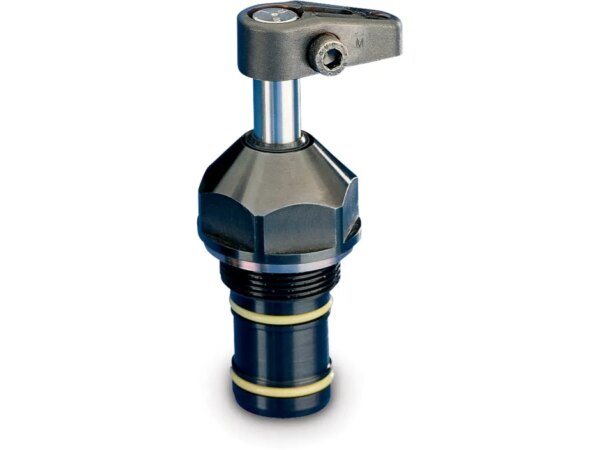

Enerpac SCSS-122 Cartridge Swing Clamp 2400 lbs Force Single Acting Straight Plunger
| Weight | 5.80000019 lbs |
|---|---|
| Dimensions | 8 × 4 × 4 in |
| Work Holding/Clamps | Swing Clamp |
| Manufacturer | Enerpac |
Â
SCSS-122 Specifications:
Maximum Operating Pressure (psi):Â 5000
Minimum Operating Pressure (psi):Â 500
Clamping Force (lbs):Â 2400
Stroke (in):Â 1.09
Stroke Clamping (in):Â 0.5
Mounting Style:Â Cartridge Model
Return Type:Â Single Acting
Rotation Direction:Â Straight
Cylinder Effective Area Clamp (in2):Â 0.63
Oil Capacity Clamp (in3):Â 0.7
Maximum Oil Flow (in3/min):Â 100
Standard Clamp Arm:Â CAS121
Weight (lbs):Â 5.5
Enerpac SC-Series Swing Clamp Brochure
SCSS-122 Measurements:
- Dimension (A)- 6.75 in. / 172 mm
- Dimension (B)-Â 3.8 in. / 96.5 mm
- Dimension (C)- 1.52 in. / 38.6 mm
- Dimension (C1)- 2.61 in. / 66.3 mm
- Dimension (C2)- 1.43 in. / 36.3 mm
- Dimension (D1)- 2.99 in. / 75.9 mm
- Dimension (D2)- 2.25 in. / 57.2 mm
- Dimension (E)- 2.74 in. / 69.6 mm
- Dimension (F)- 0.87 in. / 22.1 mm
- Dimension (J)- M60 x 1.5
- Dimension (J1)- 0.52 in. / 13.2 mm
- Dimension (K)- 1.2 in. / 30.5 mm
- Dimension (P)- 2.03 in. / 51.6 mm
- Dimension (Q)- .375 – 16 unc
- Dimension (T)- 2.44 in. / 62 mm
- Dimension (W)- 2.95 in. / 74.9 mm
 |
Enerpac SCSS-122 Cartridge Swing Clamp 2400 lbs Force Single Acting Straight Plunger
Contact us for pricing
Price on request
This item is quoted individually. Most quote requests are answered the same business day.
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
