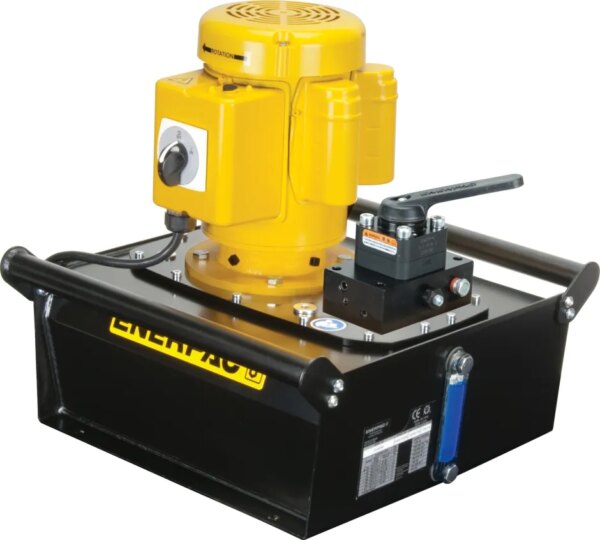

Enerpac ZE-3340MB Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 10 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V

Specifications
Weight 207.899994 lbs
Dimensions 30 × 30 × 28 in
10000 PSI Hydraulic Tools

Power Units

Manufacturers

Enerpac

Overview

 Contact Us For Current Availability

ZE-3340MB Specifications:

Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3): 2310
Usable Oil Capacity (gal): 10
Maximum Flow at Rated Pressure: 40 in3/min

Output Flow Rate (in3/min) 100 psi: 450

Output Flow Rate (in3/min) 700 psi: 385

Output Flow Rate (in3/min) 5000 psi: 42

Output Flow Rate (in3/min) 10000 psi: 40

Motor Size (hp): 1
Motor Size (rpm): 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph

Motor Voltage: 115 V

Valve Function: Advance / Hold / Retract
Valve Operation: Manual
Valve Type: 3 way, 3 position, Tandem Center
Valve Model: VM33

Power Source: Electric

Pump Control: Manual

Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz

Sound Level (dBa): 75

Relief Valve Adjustment Range (psi): 1000-10000

Weight (lbs): 183


Enerpac ZE-Series Pump Brochure

ZE-3340MB Measurements:

  • Dimension (A)- 10.6 in. / 270 mm
  • Dimension (B)- 15.7 in. / 399 mm
  • Dimension (C)- 19.9 in. / 505 mm
  • Dimension (D)- 22.7 in. / 577 mm
  • Dimension (D1)- 22.5 in. / 572 mm
  • Dimension (E)- 18.9 in. / 480 mm
  • Dimension (H)- 28.1 in. / 714 mm

  Enerpac ZE-3110DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box  Scheme Dimensions

Enerpac ZE-3340MB Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 10 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V

0.0 (0)
SKU: ZE3340MB
0.0 out of 5 Read reviews
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

$6,939.51 -8% $6,384.35

5 viewed in the last 72 hours
In stock Expected delivery between Nov 08 - Nov 15
No sales tax
Free shipping
