• ZE3208MB_S

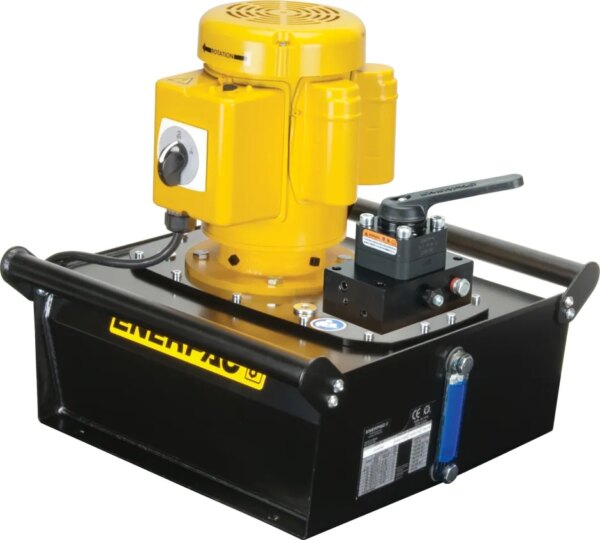

Enerpac ZE-3208MB Electric Hydraulic Pump 3/2 Manual Valve without Electric Box or LCD 2 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V

Specifications
Weight 123.599998 lbs
Dimensions 30 × 30 × 28 in
10000 PSI Hydraulic Tools

Power Units

Manufacturers

Enerpac

Overview

 Contact Us For Current Availability

ZE-3208MB Specifications:

Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3): 462
Usable Oil Capacity (gal): 2
Maximum Flow at Rated Pressure: 40 in3/min

Output Flow Rate (in3/min) 100 psi: 450

Output Flow Rate (in3/min) 700 psi: 385

Output Flow Rate (in3/min) 5000 psi: 42

Output Flow Rate (in3/min) 10000 psi: 40

Motor Size (hp): 1
Motor Size (rpm): 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph

Motor Voltage: 115 V

Valve Function: Advance / Retract
Valve Operation: Manual
Valve Type: 3 way, 2 position
Valve Model: VM32

Power Source: Electric

Pump Control: Manual

Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz

Sound Level (dBa): 75

Relief Valve Adjustment Range (psi): 1000-10000

Weight (lbs): 91


Enerpac ZE-Series Pump Brochure

ZE-3208MB Measurements:

  • Dimension (A)- 5.6 in. / 143 mm
  • Dimension (B)- 11 in. / 279 mm
  • Dimension (C)- 8.1 in. / 152 mm
  • Dimension (H)- 20.2 in. / 513 mm

  Enerpac ZE-3104DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box  Scheme Dimensions

Enerpac ZE-3208MB Electric Hydraulic Pump 3/2 Manual Valve without Electric Box or LCD 2 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V

0.0 (0)
SKU: ZE3208MB
0.0 out of 5 Read reviews
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

$5,504.48 -13% $4,788.90

7 viewed in the last 24 hours
In stock Expected delivery between Nov 10 - Nov 17
No sales tax
Free shipping
