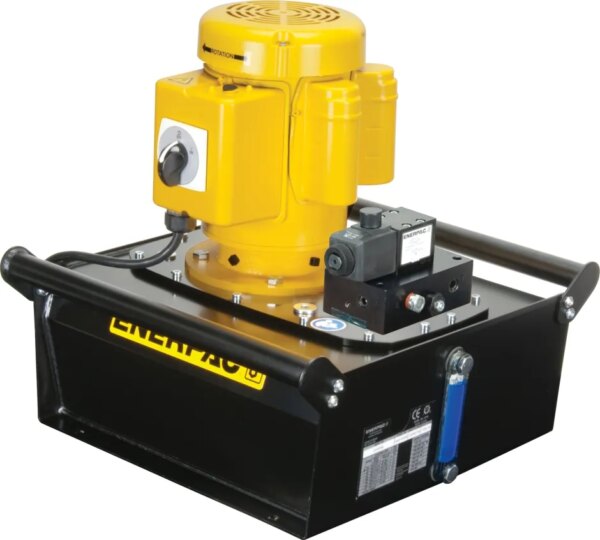

Enerpac ZE-4120DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box or LCD 5 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V
| Weight | 188.6999969 lbs |
|---|---|
| Dimensions | 30 × 30 × 28 in |
| 10000 PSI Hydraulic Tools | Power Units |
| Manufacturer | Enerpac |

ZE-4120DB Specifications:
Maximum Operating Pressure (psi):Â 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3):Â 1155
Usable Oil Capacity (gal):Â 5
Maximum Flow at Rated Pressure:Â 60 in3/min
Output Flow Rate (in3/min) 100 psi:Â 650Â
Output Flow Rate (in3/min) 700 psi:Â 600
Output Flow Rate (in3/min) 5000 psi:Â 62
Output Flow Rate (in3/min) 10000 psi:Â 60
Motor Size (hp):Â 1.5
Motor Size (rpm):Â 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph
Motor Voltage:Â 115 V
Valve Function:Â Advance / Retract
Valve Operation: Solenoid
Solenoid Valve Voltage: 24 VCC
Valve Type: 3 way, 2 position
Valve Model: VM32D
Power Source:Â Electric
Pump Operation: Dump
Pump Control:Â Pendant
Motor Electrical Specification:Â 115 V, 1 Ph, 50/60 Hz
Sound Level (dBa):Â 75
Relief Valve Adjustment Range (psi):Â 1000-10000
Weight (lbs):Â 149
Enerpac ZE-Series Pump Brochure
ZE-4120DB Measurements:
- Dimension (A)- 7.1 in. / 180 mm
- Dimension (B)- 16.5 in. / 419 mm
- Dimension (C)- 16.6 in. / 422 mm
- Dimension (D)- 19.7 in. / 500 mm
- Dimension (D1)- 19.2 in. / 488 mm
- Dimension (E)- 15.6 in. / 396 mm
- Dimension (H)- 24.6 in. / 625 mm
|
|

Enerpac ZE-4120DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box or LCD 5 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V
$12,532.93
In stock
No sales tax
Expected delivery Jul 18 - Jul 22
