Overview

 Contact Us For Current Availability

ZE-6340MG Specifications:

Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3): 2310
Usable Oil Capacity (gal): 10
Maximum Flow at Rated Pressure: 200 in3/min

Output Flow Rate (in3/min) 100 psi: 900

Output Flow Rate (in3/min) 700 psi: 890

Output Flow Rate (in3/min) 5000 psi: 210

Output Flow Rate (in3/min) 10000 psi: 200

Motor Size (hp): 7.5
Motor Size (rpm): 3450
Motor Hertz: 50/60 Hz
Motor Phases: 3 Ph

Motor Voltage: 208-240 V

Valve Function: Advance / Hold / Retract
Valve Operation: Manual
Valve Type: 3 way, 3 position, Tandem Center
Valve Model: VM33

Power Source: Electric

Pump Control: Manual

Motor Electrical Specification: 208-240 V, 3 Ph, 50/60 Hz

Sound Level (dBa): 80

Relief Valve Adjustment Range (psi): 1000-10000

Weight (lbs): 225


Enerpac ZE-Series Pump Brochure

ZE-6340MG Measurements:

  • Dimension (A)- 10.6 in. / 270 mm
  • Dimension (B)- 15.7 in. / 399 mm
  • Dimension (C)- 19.9 in. / 505 mm
  • Dimension (D)- 22.7 in. / 577 mm
  • Dimension (D1)- 22.5 in. / 572 mm
  • Dimension (E)- 18.9 in. / 480 mm
  • Dimension (H)- 28.1 in. / 714 mm

  Enerpac ZE-3110DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box  Scheme Dimensions

0.0 (0)
SKU: ZE6340MG
0.0 out of 5 Read reviews
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

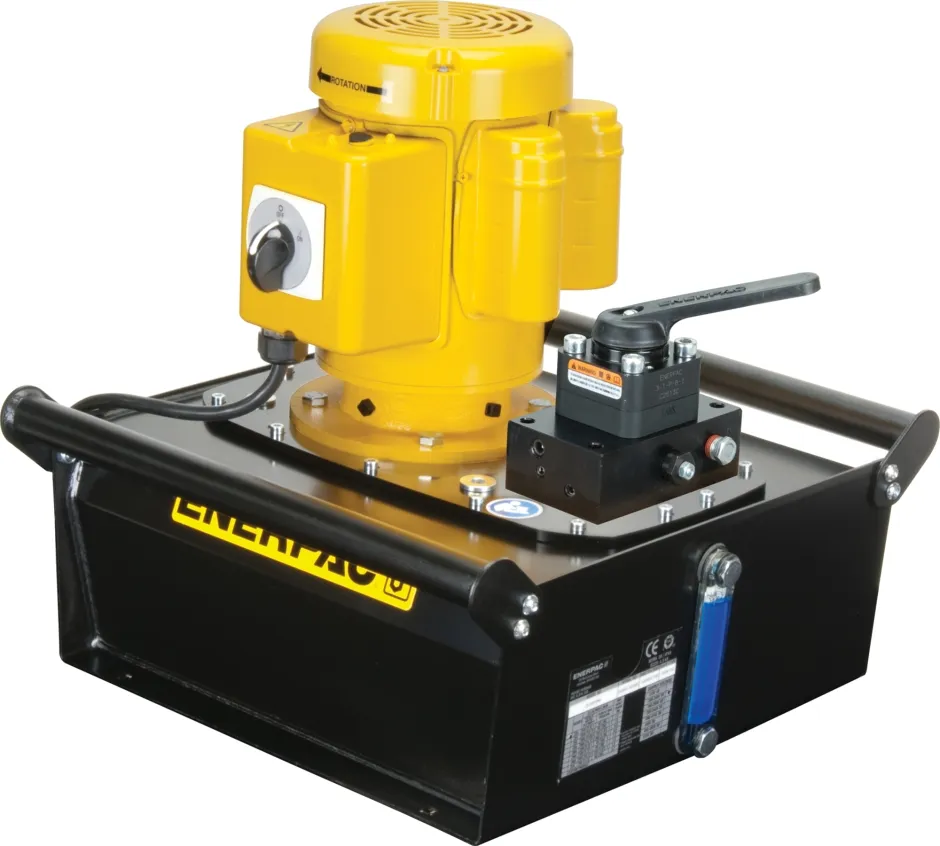

Enerpac ZE-6340MG Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 10 gal Usable Oil 200 in3/min oil flow at 10,000 psi 208-240 V

$18,957.00

No sales tax

Enerpac ZE-6340MG Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 10 gal Usable Oil 200 in3/min oil flow at 10,000 psi 208-240 V

Specifications
Weight 281.5 lbs
Dimensions 30 × 30 × 28 in
