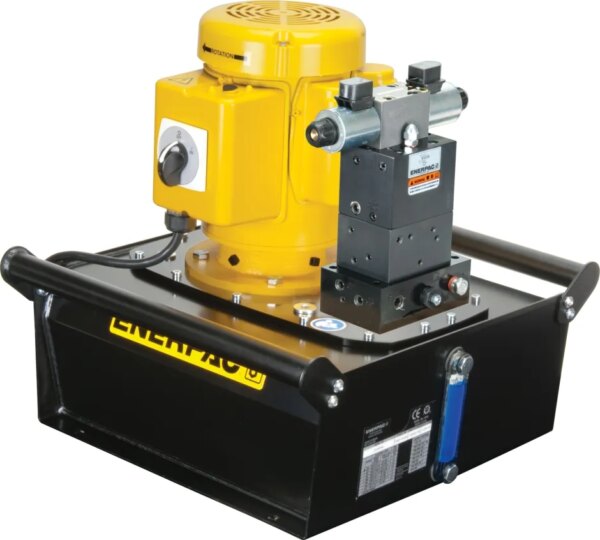

Enerpac ZE-4408SB Electric Hydraulic Pump 4/3 Solenoid Valve with Electric Box and LCD 2 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V
Specifications
| Weight | 146 lbs |
|---|---|
| Dimensions | 30 × 30 × 28 in |
| 10000 PSI Hydraulic Tools | Power Units |
| Manufacturers | Enerpac |
Overview
ZE-4408SB Specifications:
Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Double-acting
Reservoir Capacity (in3): 462
Usable Oil Capacity (gal): 2
Maximum Flow at Rated Pressure: 60 in3/min
Output Flow Rate (in3/min) 100 psi: 650
Output Flow Rate (in3/min) 700 psi: 600
Output Flow Rate (in3/min) 5000 psi: 62
Output Flow Rate (in3/min) 10000 psi: 60
Motor Size (hp): 1.5
Motor Size (rpm): 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph
Motor Voltage: 115 V
Valve Function: Advance / Hold / Retract
Valve Operation: Solenoid
Solenoid Valve Voltage: 24 VDC
Valve Type: 4 way, 3 position, Tandem Center
Valve Model: VM43
Power Source: Electric
Pump Control: Pendant
Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz
Sound Level (dBa): 75
Relief Valve Adjustment Range (psi): 1000-10000
Weight (lbs): 121
Enerpac ZE-Series Pump Brochure
ZE-4408SB Measurements:
- Dimension (A)- 5.6 in. / 143 mm
- Dimension (B)- 11 in. / 279 mm
- Dimension (C)- 8.1 in. / 152 mm
- Dimension (H)- 20.2 in. / 513 mm
|
|
Enerpac ZE-4408SB Electric Hydraulic Pump 4/3 Solenoid Valve with Electric Box and LCD 2 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V
SKU: ZE4408SB
$12,384.95 -7% $11,518.00
4 viewed in the last 72 hours
In stock Expected delivery between Sep 19 - Sep 26
No sales tax
Free shipping
