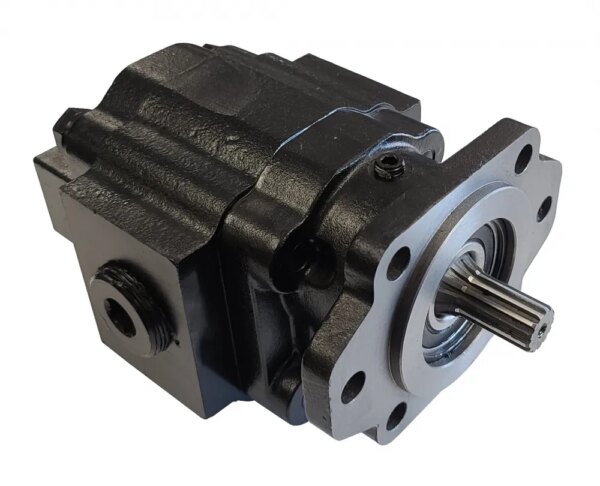

25 GPM, 2.25″ GEAR, 5.73 C.I., 2500PSI, 7/8-13 SPINE SHAFT, 2/4 B FLANGE MOUNT, 1.25″ NPT Rear Ports, 1.5″ NPT Side Ports
| Weight | 59.0 lbs |
|---|---|
| Dimensions | 18 × 12 × 12 in |
| Hydraulic Pump Style | Gear Pump |
| Pump Manufacturers | Heavy Motions |
| Pump Displacement | 5.73 |
| Pump Outlet Port Style/Size | 13 Tooth 16/32 DP 0.75", NPT – 1-1/4" |
| Pump Mounting Flange | 2/4 Bolt / SAE B / 4.00" Pilot |
| Pump Inlet Port Style/Size | NPT – 1-1/4" |
| Pump Rotation | Dual |
| Manufacturer | Heavy Motions |
Heavy Motions Pumps
H5B6B14SH20DILB
Heavy Motions Pumps are designed for a wide range of applications including low boys, utility line trucks, refuse equipment and snow and ice control.
- H51 Series
- 5.73 Cubic in. Displacement
- 25 GPM @ 1000 RPM
- 2500 PSI max
- 2400 RPM max
- Bi-Rotational
- 2/4 Bolt “B” Flange Mount
- 7/8-13 Spline Shaft
- 1.25″ NPT Ports Rear Ports
- 1.5″ NPT Side Ports
Commercial- P51A646TEYR22-25
Permco- P5100A735OFXQ22-14
Muncie- PL25-2BPBB
H5B6B14SH20DILB Heavy Motions Gear Pump 25 GPM, NPT Ports
$634.14
In stock
No sales tax
Expected delivery Jul 24 - Jul 28
no complaints
Needed a higher-flow pump for a hydraulic press I was retooling and this one checked every box — flange mount was spot on, the spline shaft seated without any fuss, and it's been dead quiet running at pressure. Solid piece of equipment for the money.
Running it on a custom power unit we built for a customer, holds pressure well and the build quality looks solid. Will be ordering more of these.
fit perfect
works great
