2.5″ GEAR, 6.37 C.I., 2500PSI, 7/8-13 SPINE SHAFT, RH ROTATION, 1.25″ NPT INLET, 1″ NPT PRESSURE & RETURN PORTS
Specifications
| Weight | 80 lbs |
|---|---|
| Dimensions | 22 × 12 × 12 in |
| Hydraulic Pump Style | Gear Pump |
| Pump Displacement | 6.37 |
| Pump Outlet Port Style/Size | NPT – 1" |
| Pump Mounting Flange | Direct Mount / Reservoir |
| Pump Inlet Port Style/Size | NPT – 1-1/4" |
| Pump Rotation | CW |
| Manufacturers | Heavy Motions |
| Pump Manufacturers | Heavy Motions |
Overview
Heavy Motions Pumps
HC102-RMS-25
Heavy Motions Dump Pumps are designed for the dump trucking industy. Common applications are dump trucks and dump trailers.
- C Series
- Manual Shift
- 6.37 Cubic in. Displacement
- 48 GPM @ 1800 RPM
- 2500 PSI max
- 2400 RPM max
- RH Rotation
- 7/8-13 Spline Shaft
- 1.25″ NPT Inlet Ports
- 1″ NPT Pressure & Return Ports
Replacement for Parker/Commercial C102 Series

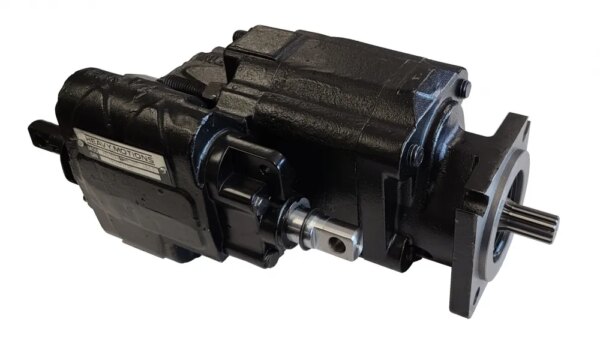

HC102-RMS-25 Heavy Motions Dump Pump 6.37 CI, NPT Ports
SKU: HC102-RMS-25
$640.91 -12% $564.00
1+
$ 564.00/piece
4+
$ 535.80/piece
-5%
8+
$ 507.60/piece
-10%
33 viewed in the last 24 hours
In stock Expected delivery between Sep 15 - Sep 22
No sales tax
Free shipping
