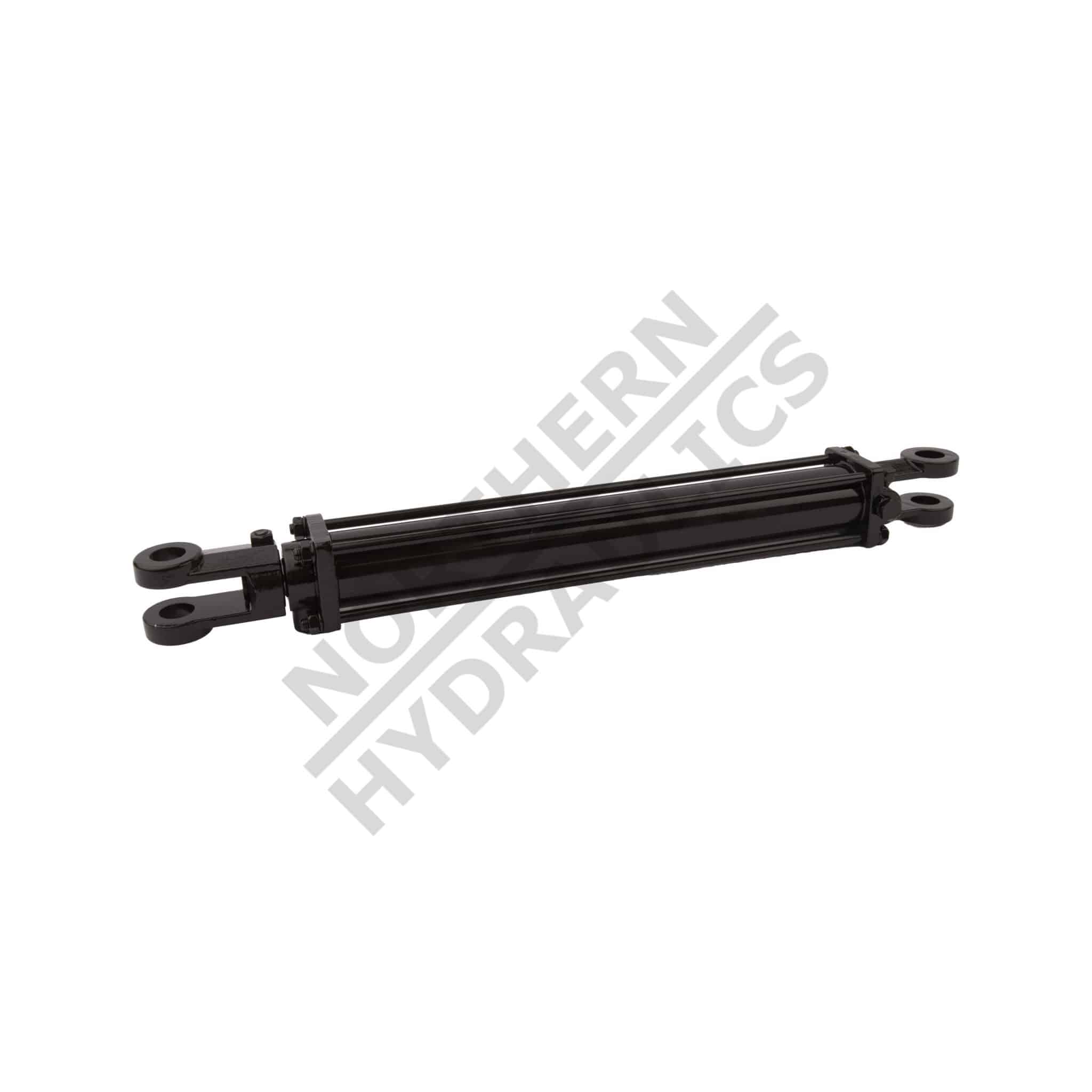

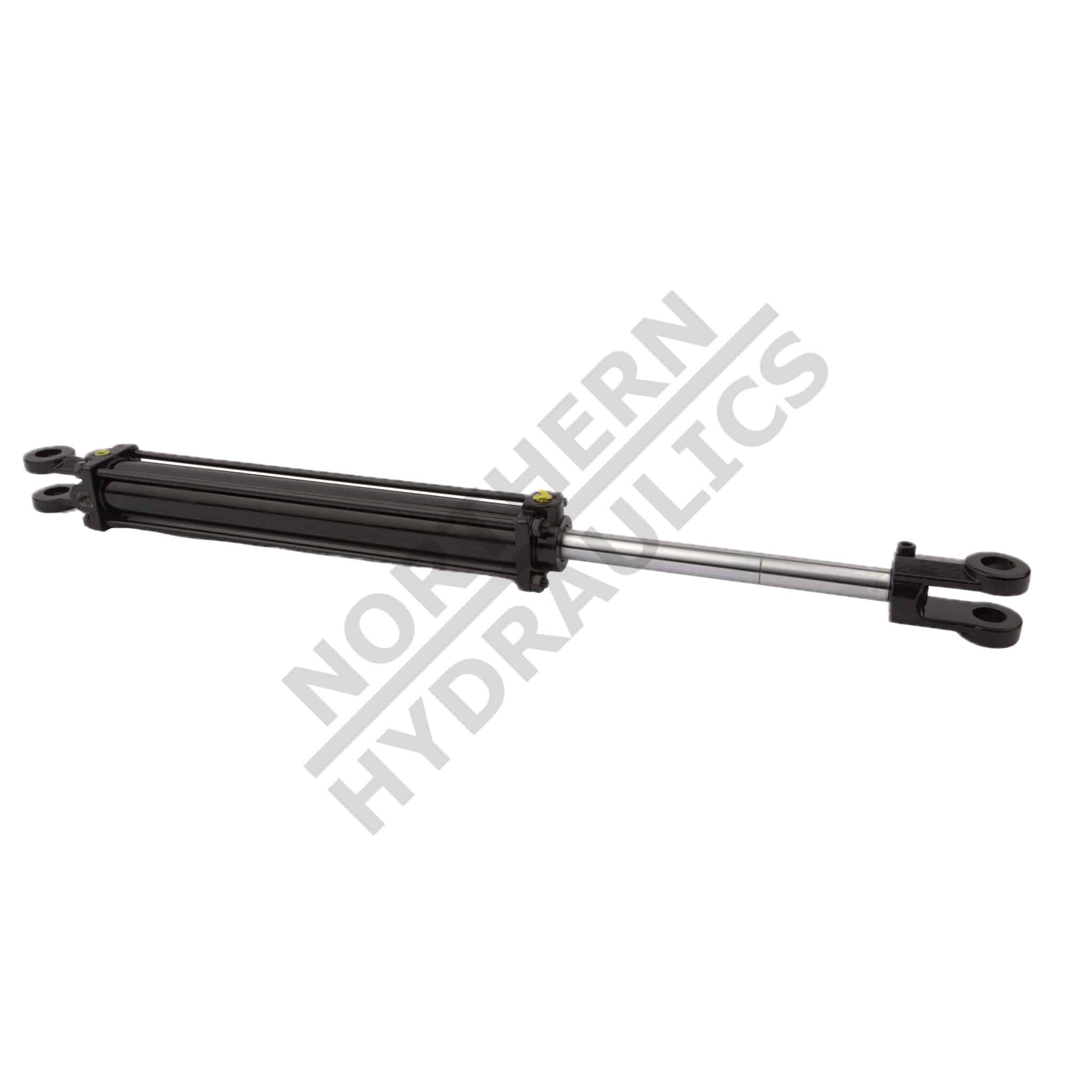

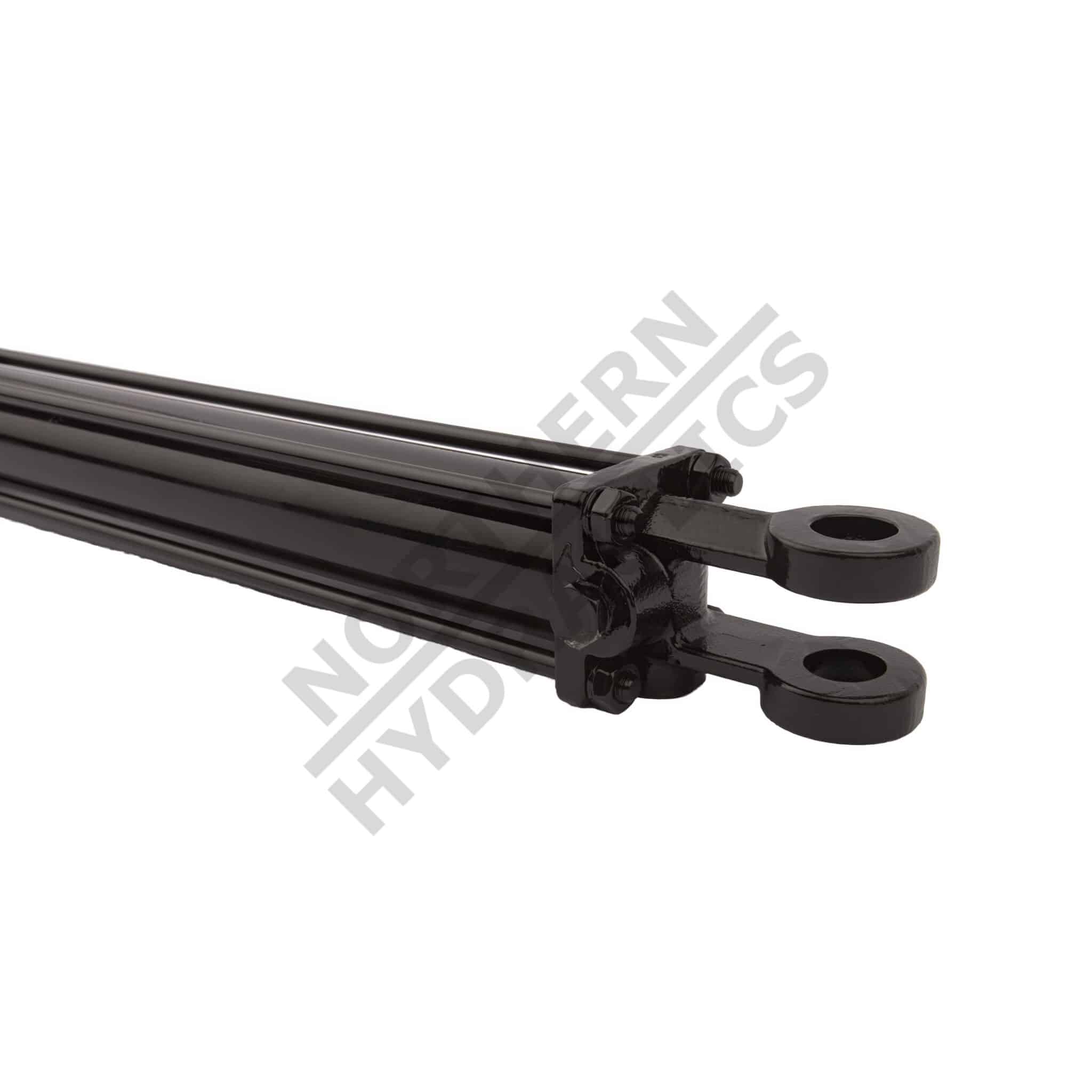

2.5" bore x 18" stroke hydraulic cylinder rated for 2500 PSI. Heavy-duty double acting design, perfect for demanding applications. Free ground shipping!
Specifications
| Weight | 30 lbs |
|---|---|
| Dimensions | 30 × 5 × 5 in |
| Cylinder Bore | 2.5" |
| Cylinder Stroke Ranges | 18 |
| Cylinder Extended Length | 46.25 |
| Cylinder Style | Tie-Rod |
| Cylinder Retracted Length | 28.25 |
| Cylinder Port Size | NPT – 3/8" |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.87 in |
| Cylinder Rod Diameter | 1.125 in |
| Cylinder Overall Length | 30.25 in |
| Cylinder PSI | 2500 PSI |
| Cylinder Column Load | 8,370 lbs |
| Cylinder Oil Volume | 1.53 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Clevis |
| Cylinder Action | Double Acting |
Overview
- Specifications:
- Bore Size: 2.5 inches
- Stroke Length: 18 inches
- Operating Pressure: 2500 PSI
- Overall Length: 30.25 inches
- Extended Length: 46.25 inches
- Retracted Length: 28.25 inches
- Oil Volume: 1.53 quarts
- Rod Type: Chrome Plated
- Rod Diameter: 1.125 inches
- Column Load: 8,370 lbs
- Ports: 3/8″ NPT
- Rod End: Clevis
- Style: Tie Rod
- Action: Double Acting
- Product Highlights:
- Heavy-duty construction designed for rigorous applications.
- Double acting design allows for consistent power in both directions.
- Designed for easy compatibility with various hydraulic systems.
- Chrome plated rod for enhanced protection and durability.
- Manufacturer: Northern Hydraulics
NOTE! Ensure proper measurements are taken before installation. Misuse can result in damage not covered under warranty!
