Discover our 2.38 in diameter double acting hydraulic cylinder with a 14 in stroke, 3500 PSI. Robust performance, free ground shipping across the Continental US.
Specifications
| Weight | 23 lbs |
|---|---|
| Dimensions | 26 × 5 × 5 in |
| Cylinder Bore | 2" |
| Cylinder Stroke Ranges | 14 |
| Cylinder Extended Length | 38.25 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 24.25 |
| Cylinder Port Size | ORB – 8 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.38 in |
| Cylinder Rod Diameter | 1.25 in |
| Cylinder Overall Length | 26.25 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 9,400 lbs |
| Cylinder Oil Volume | 0.76 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Clevis |
| Cylinder Action | Double Acting |
Overview

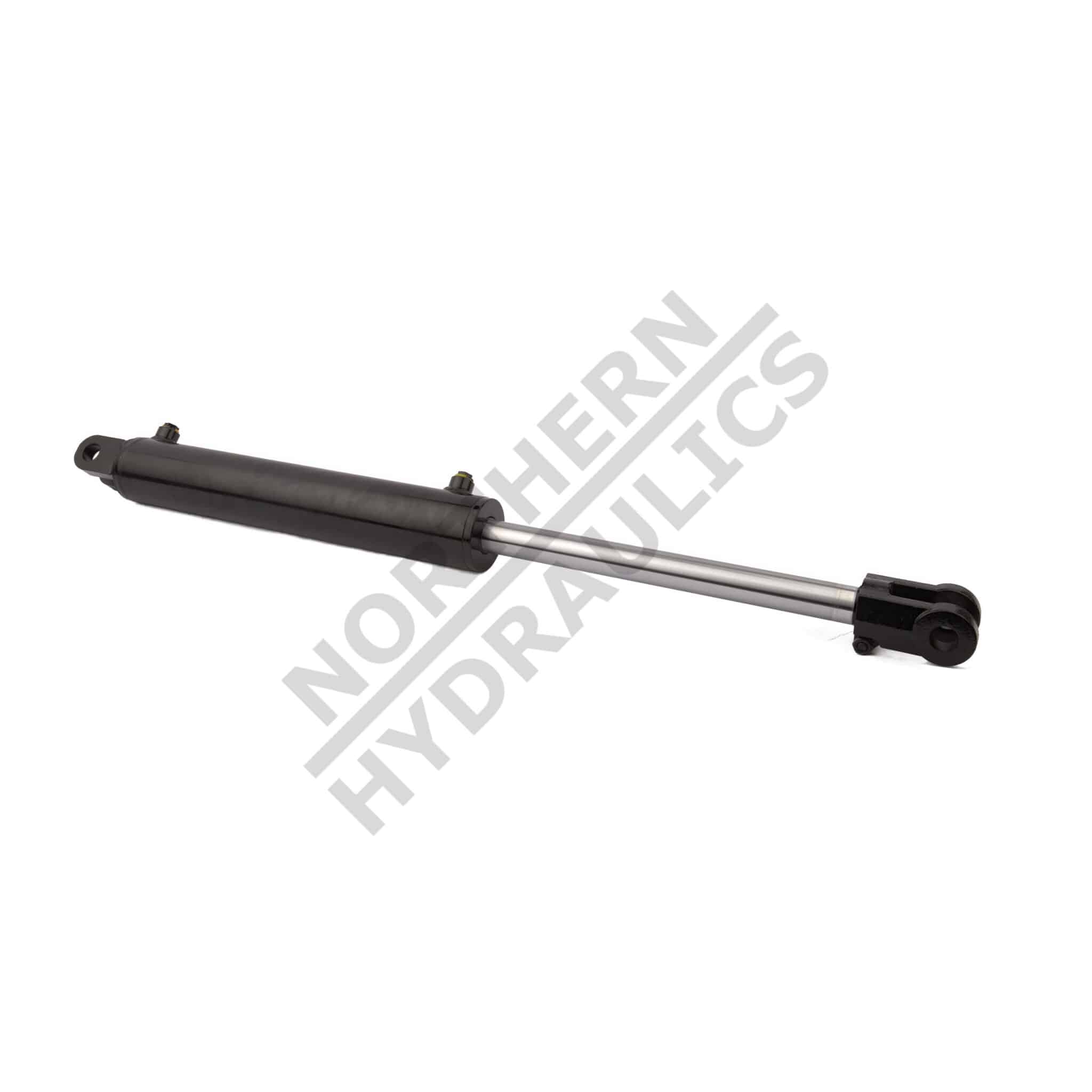

- Product Name: WCLN2x14 Double Acting Hydraulic Cylinder
- Outer Diameter: 2.38 in
- Rod Diameter: 1.25 in
- Overall Length: 26.25 in
- Stroke Length: 14 in
- Extended Length: 38.25 in
- Retracted Length: 24.25 in
- PSI Rating: 3500 PSI
- Column Load: 9,400 LBs
- Oil Volume: 0.76 QTs
- Rod Type: Chrome Plated
- Rod End: Clevis
- Action: Double Acting
- Style: Welded
- Ports: SAE 8
Key Features:
- Designed for robust performance with a maximum pressure of 3500 PSI.
- Capable of supporting a column load of 9,400 LBs, making it suitable for heavy-duty applications.
- Double-acting mechanism ensures efficient operation in various hydraulic applications.
- Durable chrome plated rod for enhanced longevity and corrosion resistance.
- Versatile design with a clevis rod end, allowing easy integration into existing systems.
NOTE! Ensure proper usage to avoid bent rods; misuse is not covered under warranty.
Free Ground Shipping available across the Continental US.
For assistance choosing the right hydraulic cylinder, do not hesitate to contact us at (800) 823-4937.
2.38 in Diameter Double Acting Hydraulic Cylinder 14 in Stroke | Northern Hydraulics
SKU: WCLN2x14
$222.34 -6% $209.00
1+
$ 209.00/piece
4+
$ 198.55/piece
-5%
8+
$ 188.10/piece
-10%
32 viewed in the last 24 hours
In stock Expected delivery between Oct 06 - Oct 13
No sales tax
Free shipping
