Shop TRCN2x6 hydraulic cylinder, 2500 PSI, 7850 LB column load. Durable design, double acting, chrome plated rod. Free shipping in the Continental US!
Specifications
| Weight | 17 lbs |
|---|---|
| Dimensions | 18 × 4 × 4 in |
| Cylinder Bore | 2" |
| Cylinder Stroke Ranges | 6 |
| Cylinder Extended Length | 22.25 |
| Cylinder Style | Tie-Rod |
| Cylinder Retracted Length | 16.25 |
| Cylinder Port Size | NPT – 3/8" |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.37 in |
| Cylinder Rod Diameter | 1.125 in |
| Cylinder Overall Length | 18.25 in |
| Cylinder PSI | 2500 PSI |
| Cylinder Column Load | 7,850 lbs |
| Cylinder Oil Volume | 0.33 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Clevis |
| Cylinder Action | Double Acting |
Overview
- Model: TRCN2x6
- Bore Diameter: 2.37 inches
- Stroke Length: 6 inches
- PSI Rating: 2500 PSI
- Column Load: 7850 LBs
- Overall Length: 18.25 inches
- Retracted Length: 16.25 inches
- Extended Length: 22.25 inches
- Oil Volume: 0.33 QTs
- Rod Diameter: 1.125 inches
- Rod Type: Chrome Plated
- Action: Double Acting
- Rod End Type: Clevis
- Port Size: 3/8″ NPT
- Style: Tie Rod Cylinder
- Weight: 17 LBs

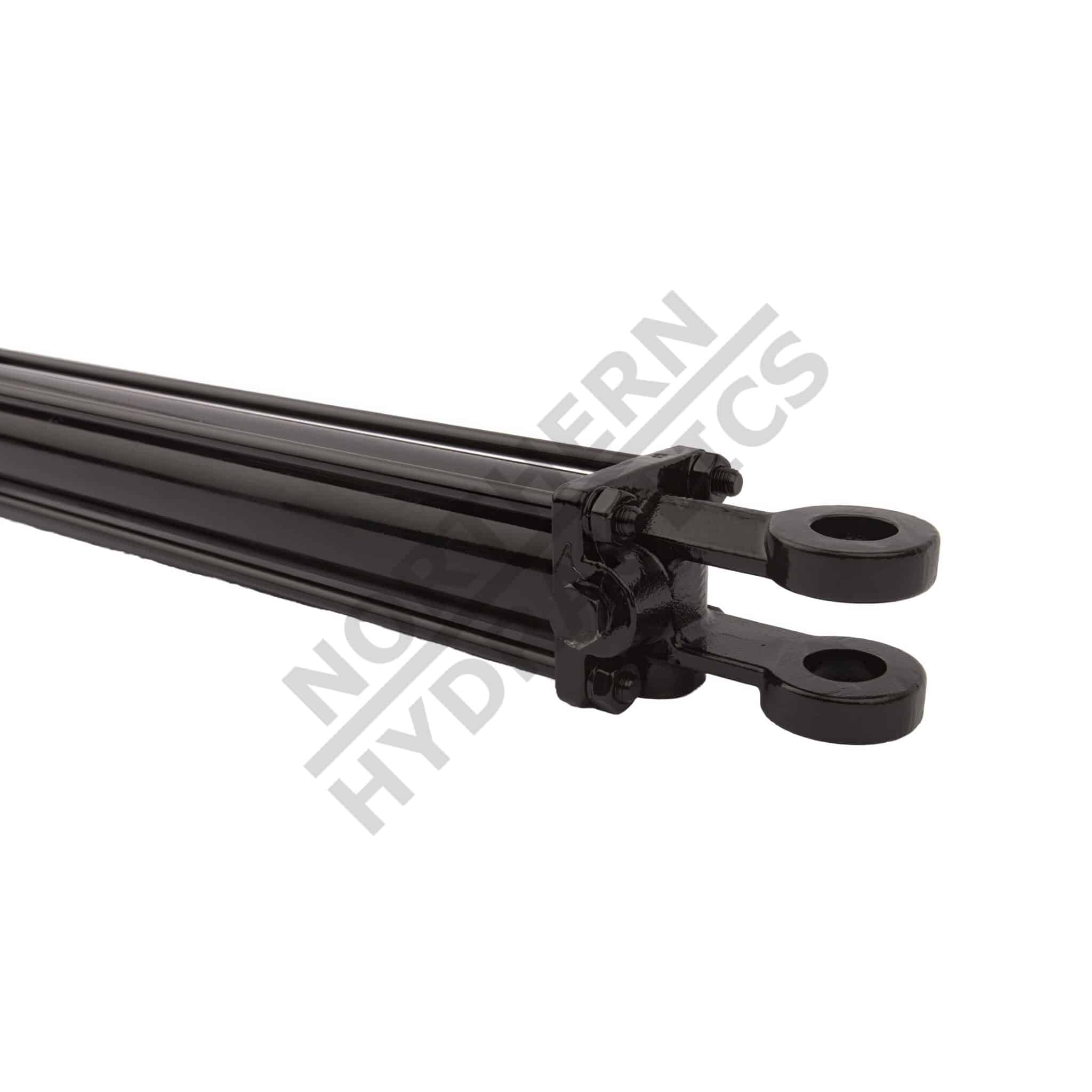

The TRCN2x6 hydraulic cylinder by Northern Hydraulics is a robust and versatile solution for various hydraulic applications. This double acting cylinder is engineered to operate under pressures up to 2500 PSI and is capable of handling impressive column loads up to 7850 LBs. Whether you’re using it for industrial machinery or other hydraulic systems, this cylinder promises excellent performance and reliability.
Crafted from high-quality materials, the TRCN2x6 features a durable design with a chrome-plated rod for enhanced longevity and resistance to wear. Its dimensions make it suitable for numerous applications, and the clevis rod end ensures a secure connection.
Key Features:
- High-pressure capacity at 2500 PSI
- Double action for efficient movement
- Chrome-plated rod for corrosion resistance
- Flexible size range adaptable for various applications
- Lightweight design at only 17 LBs
Usage Information: Ensure that the hydraulic cylinder is properly installed in accordance with your system specifications. Regular maintenance checks are recommended to sustain optimal performance. To clean, simply wipe down with a soft cloth and ensure that the rod is free from debris.
Shipping Information: Enjoy free ground shipping on all orders within the Continental US. Some restrictions may apply, so please check our shipping policy for details.
Contact Us: If you have questions or need assistance selecting the right hydraulic cylinder, please reach out to our customer service team at (800) 823-4937. We are happy to help!
TRCN2x6 2.37″ Bore x 6″ Stroke Hydraulic Cylinder | Northern Hydraulics
SKU: TRCN2x6
$148.28 -13% $129.00
1+
$ 129.00/piece
4+
$ 122.55/piece
-5%
8+
$ 116.10/piece
-10%
35 viewed in the last 24 hours
In stock Expected delivery between Oct 07 - Oct 14
No sales tax
Free shipping
Shop with Confidence
256-bit encrypted shopping with nmi.com
