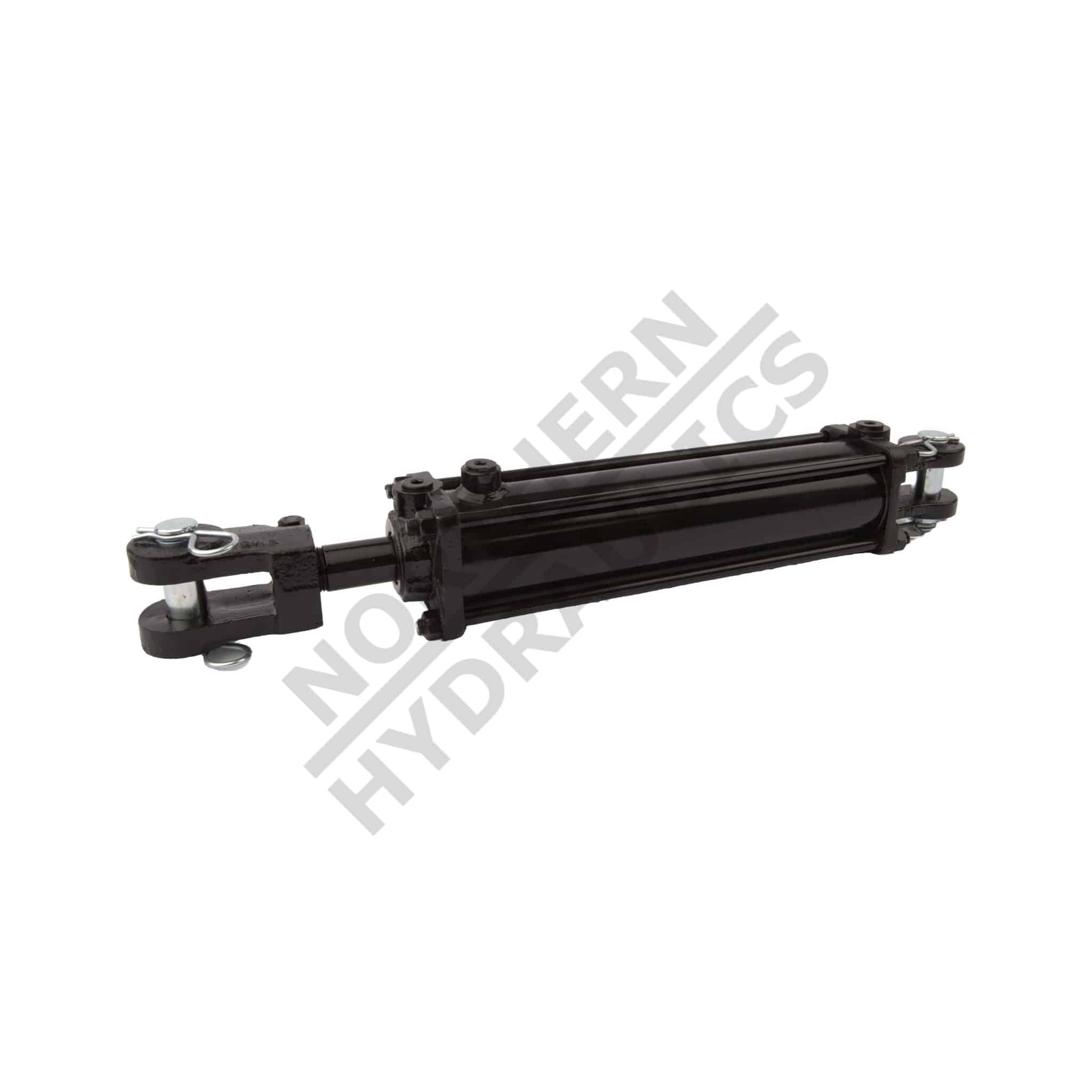

The Maxim 3.5 Bore x 14 Stroke Hydraulic Cylinder is designed for those who demand power and reliability in their hydraulic systems. Built by Bailey, this high-performance cylinder offers superior durability and efficiency, making it an essential tool for heavy-duty applications.

• Bore Size: 3.5 inches
• Stroke Length: 14 inches
• Extended Length: 38.25 inches
• Retracted Length: 24.25 inches
• Rod Diameter: 1.25 inches
• Column Load Capacity: 18,730 lbs
• Ports: 1/2 NPT ports
• Weight: 37 lbs

This hydraulic cylinder is perfect for a variety of heavy-duty machinery, delivering exceptional performance under pressure. Its robust design ensures that it can handle high column loads, making it a reliable choice for industrial and agricultural applications.

NOTE: Ensure compatibility with your existing hydraulic system before purchase.
