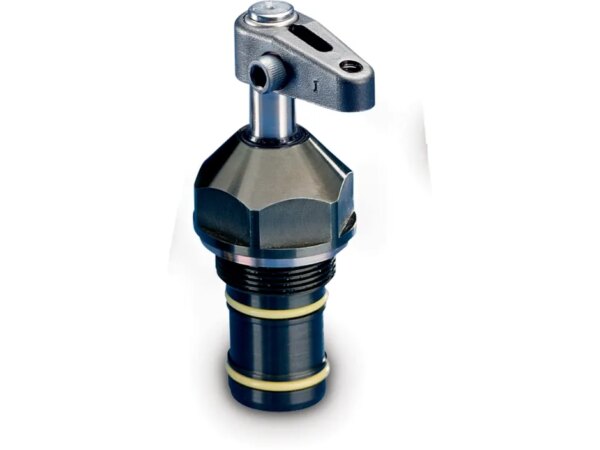

Enerpac SCRD-22 Cartridge Swing Clamp 500 lbs Force Double Acting Right Turning
| Weight | 1.39999998 lbs |
|---|---|
| Dimensions | 8 × 4 × 4 in |
| Work Holding/Clamps | Swing Clamp |
| Manufacturer | Enerpac |
Â
SCRD-22 Specifications:
Maximum Operating Pressure (psi):Â 5000
Minimum Operating Pressure (psi):Â 500
Clamping Force (lbs):Â 500
Stroke (in):Â 0.66
Stroke Clamping (in):Â 0.32
Mounting Style:Â Cartridge Model
Return Type:Â Double Acting
Rotation Direction:Â Right
Cylinder Effective Area Clamp (in2):Â 0.12
Cylinder Effective Area Unclamp (in2):Â 0.24
Oil Capacity Clamp (in3):Â 0.08
Oil Capacity Unclamp (in3):Â .015
Maximum Oil Flow (in3/min):Â 12
Standard Clamp Arm:Â CAS22
Weight (lbs):Â 1
Enerpac SC-Series Swing Clamp Brochure
SCRD-22 Measurements:
- Dimension (A)- 4.41 in. / 112 mm
- Dimension (B)-Â 2.26 in. / 57.4 mm
- Dimension (C)- 0.98 in. / 24.9 mm
- Dimension (C1)- 1.63 in. / 41.4 mm
- Dimension (C2)- 0.94 in. / 23.9 mm
- Dimension (D1)- 1.51 in. / 38.4 mm
- Dimension (D2)- 1 in. / 25.4 mm
- Dimension (E)- 1.37 in. / 34.8 mm
- Dimension (F)- 0.39 in. / 9.9 mm
- Dimension (J)- M28 x 1.5
- Dimension (J1)- 0.5 in. / 12.7 mm
- Dimension (K)- 0.63 in. / 16 mm
- Dimension (P)- 0.97 in. / 24.6 mm
- Dimension (Q)- .250 – 20 unc / M6 x 1
- Dimension (T)- 1.22 in. / 31 mm
- Dimension (W)- 2.15 in. / 54.6 mm
 |
Enerpac SCRD-22 Cartridge Swing Clamp 500 lbs Force Double Acting Right Turning
$694.24
In stock
No sales tax
Expected delivery Jul 18 - Jul 22
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
