Overview

Contact Us For Current Availability



SCSD-22 Specifications:

Maximum Operating Pressure (psi): 5000

Minimum Operating Pressure (psi): 500

Clamping Force (lbs): 500

Stroke (in): 0.66

Stroke Clamping (in): 0.32

Mounting Style: Cartridge Model

Return Type: Double Acting

Rotation Direction: Straight

Cylinder Effective Area Clamp (in2): 0.12
Cylinder Effective Area Unclamp (in2): 0.24

Oil Capacity Clamp (in3): 0.08
Oil Capacity Unclamp (in3): .015

Maximum Oil Flow (in3/min): 12
Standard Clamp Arm: CAS22

Weight (lbs): 1


Enerpac SC-Series Swing Clamp Brochure

SCSD-22 Measurements:

  • Dimension (A)- 4.41 in. / 112 mm
  • Dimension (B)-  2.26 in. / 57.4 mm
  • Dimension (C)- 0.98 in. / 24.9 mm
  • Dimension (C1)- 1.63 in. / 41.4 mm
  • Dimension (C2)- 0.94 in. / 23.9 mm
  • Dimension (D1)- 1.51 in. / 38.4 mm
  • Dimension (D2)- 1 in. / 25.4 mm
  • Dimension (E)- 1.37 in. / 34.8 mm
  • Dimension (F)- 0.39 in. / 9.9 mm
  • Dimension (J)- M28 x 1.5
  • Dimension (J1)- 0.5 in. / 12.7 mm
  • Dimension (K)- 0.63 in. / 16 mm
  • Dimension (P)- 0.97 in. / 24.6 mm
  • Dimension (Q)- .250 – 20 unc / M6 x 1
  • Dimension (T)- 1.22 in. / 31 mm
  • Dimension (W)- 2.15 in. / 54.6 mm
Enerpac SCLD-122 Cartridge Swing Clamp 2600 lbs Force Double Acting Left Turning Scheme Dimensions
0.0 (0)
SKU: SCSD22
0.0 out of 5 Read reviews
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

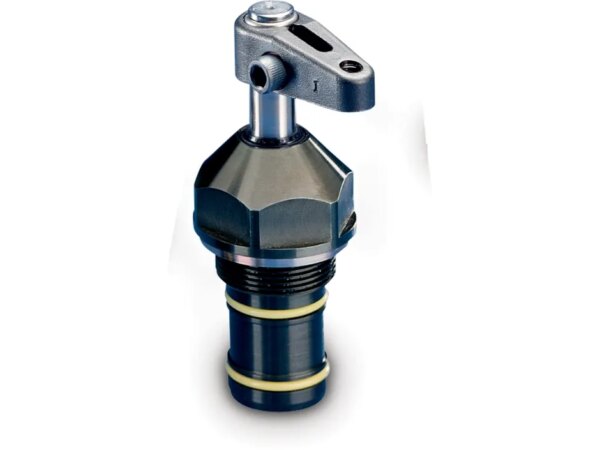

Enerpac SCSD-22 Cartridge Swing Clamp 500 lbs Force Double Acting Straight Plunger

$578.00

No sales tax
enerpac

Enerpac SCSD-22 Cartridge Swing Clamp 500 lbs Force Double Acting Straight Plunger

Specifications
Weight 1.4 lbs
Dimensions 8 × 4 × 4 in
Work Holding/Clamps

Swing Clamp

Manufacturers

Enerpac
