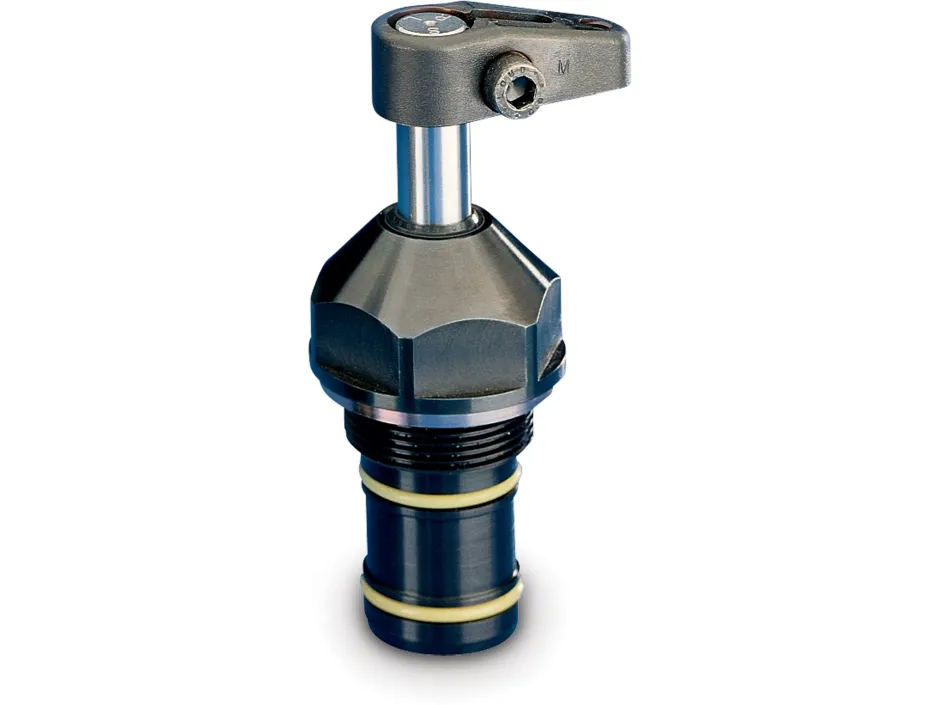

Enerpac SCLS-52 Cartridge Swing Clamp 1100 lbs Force Single Acting Left Turning
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 8 × 4 × 4 in |
| Work Holding/Clamps | Swing Clamp |
| Manufacturer | Enerpac |
Â
SCLS-52 Specifications:
Maximum Operating Pressure (psi):Â 5000
Minimum Operating Pressure (psi):Â 500
Clamping Force (lbs):Â 1100
Stroke (in):Â 0.89
Stroke Clamping (in):Â 0.39
Mounting Style:Â Cartridge Model
Return Type:Â Single Acting
Rotation Direction:Â Left
Cylinder Effective Area Clamp (in2):Â 0.28
Oil Capacity Clamp (in3):Â 0.25
Maximum Oil Flow (in3/min):Â 25
Standard Clamp Arm:Â CAS52
Weight (lbs):Â 2
Enerpac SC-Series Swing Clamp Brochure
SCLS-52 Measurements:
- Dimension (A)- 5.33 in. / 135 mm
- Dimension (B)-Â 3.14 in. / 79.8 mm
- Dimension (C)- 1.49 in. / 37.8 mm
- Dimension (C1)- 2.39 in. / 60.7 mm
- Dimension (C2)- 1.39 in. / 35.3 mm
- Dimension (D1)- 2.23 in. / 56.6 mm
- Dimension (D2)- 1.37 in. / 34.8 mm
- Dimension (E)- 1.99 in. / 50.5 mm
- Dimension (F)- 0.63 in. / 16 mm
- Dimension (J)- M42 x 1.5
- Dimension (J1)- 0.54 in. / 13.7 mm
- Dimension (K)- 0.76 in. / 19.3 mm
- Dimension (P)- 1.58 in. / 40.1 mm
- Dimension (Q)- .312 – 18 unc / M8 x 1.25
- Dimension (T)- 1.89 in. / 48 mm
- Dimension (W)- 2.19 in. / 55.6 mm
 |
Enerpac SCLS-52 Cartridge Swing Clamp 1100 lbs Force Single Acting Left Turning
$740.96
In stock
No sales tax
Expected delivery Sep 12 - Sep 16
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
Works well in our fixture setup, holds position through the whole cycle without any drama. Only reason I'm not giving it full marks is the lead time was longer than the listing suggested — took an extra week to ship out.
Fits right, swings clean, no leaks after a few weeks of use. Good quality for the price.
Dropped right into our existing manifold setup and worked first try. The left-turn action is smooth and the clamping force is plenty for what we're doing — been running it hard on a weld fixture and it hasn't missed a beat. Enerpac stuff just works.
Installed two of these on a new fixture last month and they've performed great so far. Swing arc is consistent and the holding force is solid under load. Docking a star only because the installation sheet could use better diagrams — had to call tech support to clarify the port orientation.
perfect fit and smooth operation right out of the box
