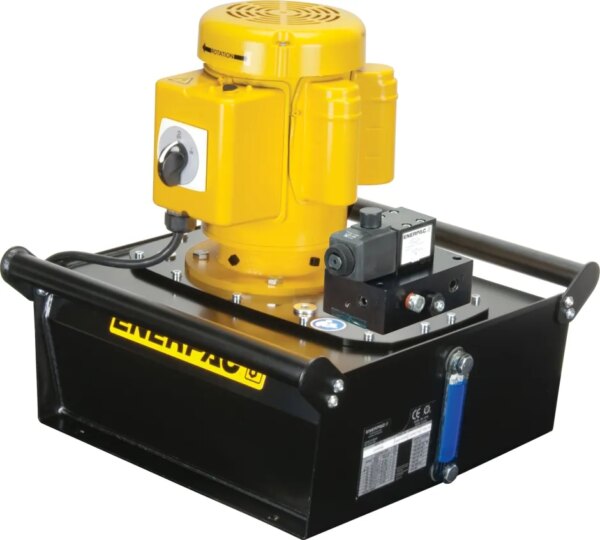

Enerpac ZE-3110DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box and LCD 2.5 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V
| Weight | 138.6999969 lbs |
|---|---|
| Dimensions | 30 × 30 × 28 in |
| 10000 PSI Hydraulic Tools | Power Units |
| Manufacturer | Enerpac |

ZE-3110DB Specifications:
Maximum Operating Pressure (psi):Â 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3):Â 578
Usable Oil Capacity (gal):Â 2.5
Maximum Flow at Rated Pressure:Â 40 in3/min
Output Flow Rate (in3/min) 100 psi:Â 450
Output Flow Rate (in3/min) 700 psi:Â 385
Output Flow Rate (in3/min) 5000 psi:Â 42
Output Flow Rate (in3/min) 10000 psi:Â 40
Motor Size (hp):Â 1
Motor Size (rpm):Â 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph
Motor Voltage:Â 115 V
Valve Function:Â Advance / Retract
Valve Operation:Â Solenoid
Solenoid Valve Voltage: 24 VAC
Valve Type: 3 way, 2 position
Valve Model: VM32D
Power Source:Â Electric
Pump Operation: Dump
Pump Control:Â Pendant
Motor Electrical Specification:Â 115 V, 1 Ph, 50/60 Hz
Sound Level (dBa):Â 75
Relief Valve Adjustment Range (psi):Â 1000-10000
Weight (lbs):Â 114
Enerpac ZE-Series Pump Brochure
ZE-3110DB Measurements:
- Dimension (A)- 6.2 in. / 157 mm
- Dimension (B)- 16.5 in. / 419 mm
- Dimension (C)- 12 in. / 305 mm
- Dimension (D)- 15.1 in. / 384 mm
- Dimension (D1)- 14.6 in. / 371 mm
- Dimension (E)- 11 in. / 279 mm
- Dimension (H)- 23.6 in. / 600 mm
|
|

Enerpac ZE-3110DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box and LCD 2.5 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V
$10,059.72
In stock
No sales tax
Expected delivery Jul 24 - Jul 28
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
