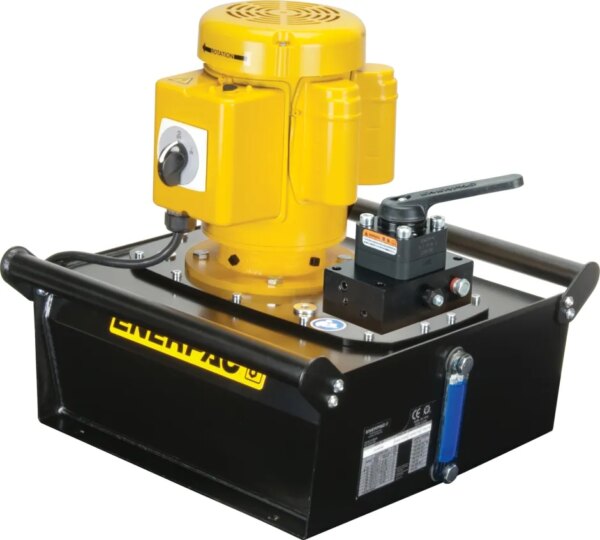

Enerpac ZE-3320LB Electric Hydraulic Pump 3/3 Manual Valve with Electric Box and LCD 5 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V

Specifications

Weight	177.0 lbs
Dimensions	30 × 30 × 28 in
10000 PSI Hydraulic Tools	Power Units
Manufacturer	Enerpac

Overview

ZE-3320LB Specifications:

Maximum Operating Pressure (psi): 10,000

Cylinder Compatability: Single-acting

Reservoir Capacity (in³): 1155

Usable Oil Capacity (gal): 5

Maximum Flow at Rated Pressure: 40 in3/min

Output Flow Rate (in³/min) 100 psi: 450

Output Flow Rate (in³/min) 700 psi: 385

Output Flow Rate (in³/min) 5000 psi: 42

Output Flow Rate (in³/min) 10000 psi: 40

Motor Size (hp): 1

Motor Size (rpm): 1750

Motor Hertz: 50/60 Hz

Motor Phases: 1 Ph

Motor Voltage: 115 V

Valve Function: Advance / Hold / Retract

Valve Operation: Manual

Valve Type: 3 way, 2 position

Valve Model: VM32

Power Source: Electric

Pump Control: Manual

Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz

Sound Level (dBa): 75

Relief Valve Adjustment Range (psi): 1000-10000

Weight (lbs): 138

Enerpac ZE-Series Pump Brochure

ZE-3320LB Measurements:

Dimension (A)- 7.1 in. / 180 mm
Dimension (B)- 16.5 in. / 419 mm
Dimension (C)- 16.6 in. / 422 mm
Dimension (D)- 19.7 in. / 500 mm
Dimension (D1)- 19.2 in. / 488 mm
Dimension (E)- 15.6 in. / 396 mm
Dimension (H)- 24.6 in. / 625 mm

SKU: ZE3320LB

4.6

19 reviews

Enerpac ZE-3320LB Electric Hydraulic Pump 3/3 Manual Valve with Electric Box and LCD 5 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V

Name: Enerpac ZE-3320LB Electric Hydraulic Pump 3/3 Manual Valve with Electric Box and LCD 5 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V
Brand: Enerpac
SKU: ZE3320LB
Price: 10008.54 USD
Availability: InStock
Rating: 4.63 (19 reviews)

$10,008.54

In stock

No sales tax

Expected delivery Jul 13 - Jul 17

Authorized Enerpac Distributor

Get Your Personalised Enerpac Quote

The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.

(800) 823-4937

Brand: Enerpac·More Enerpac Hydraulic Pumps →

Looking for help or a discount?

Call (800) 823-4937

Reviews (19)

Rating & Reviews ( 19 4.6

T. Briggs

Rated 3 out of 5

2 months ago

Pump does what it's supposed to and pressure is fine once it's dialed in but I had a bit of a rough start — took longer than expected to prime and the LCD threw an error code on first startup that cleared itself after a restart. Running okay now but for the money I expected a smoother out of box experience.
BJ's Repair

Rated 4 out of 5

2 months ago

Does the job, no issues so far.
R.K.

Rated 5 out of 5

4 months ago

Ordered this for a large hydraulic press installation and it performed exactly as expected right out of the box. Quality feels like it justifies the price.
Paul S.

Rated 5 out of 5

4 months ago

Exactly as described and arrived on time. Running it on a press brake and it handles the load without hesitation. Good product.
mike t

Rated 5 out of 5

5 months ago

no complaints
