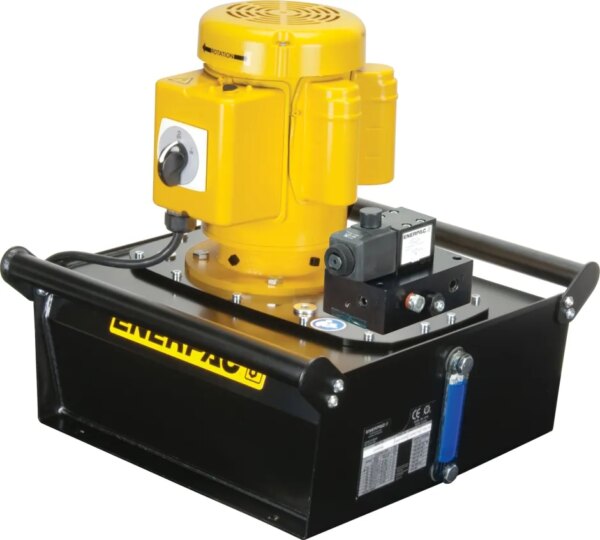

Enerpac ZE-4110DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box or LCD 2.5 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V

Specifications

Weight	150.3999939 lbs
Dimensions	30 × 30 × 28 in
10000 PSI Hydraulic Tools	Power Units
Manufacturer	Enerpac

Overview

ZE-4110DB Specifications:

Maximum Operating Pressure (psi): 10,000

Cylinder Compatability: Single-acting

Reservoir Capacity (in³): 578

Usable Oil Capacity (gal): 2.5

Maximum Flow at Rated Pressure: 60 in3/min

Output Flow Rate (in³/min) 100 psi: 650

Output Flow Rate (in³/min) 700 psi: 600

Output Flow Rate (in³/min) 5000 psi: 62

Output Flow Rate (in³/min) 10000 psi: 60

Motor Size (hp): 1.5

Motor Size (rpm): 1750

Motor Hertz: 50/60 Hz

Motor Phases: 1 Ph

Motor Voltage: 115 V

Valve Function: Advance / Retract

Valve Operation: Solenoid

Solenoid Valve Voltage: 24 VCC

Valve Type: 3 way, 2 position

Valve Model: VM32D

Power Source: Electric

Pump Operation: Dump

Pump Control: Pendant

Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz

Sound Level (dBa): 75

Relief Valve Adjustment Range (psi): 1000-10000

Weight (lbs): 122

Enerpac ZE-Series Pump Brochure

ZE-4110DB Measurements:

Dimension (A)- 6.2 in. / 157 mm
Dimension (B)- 16.5 in. / 419 mm
Dimension (C)- 12 in. / 305 mm
Dimension (D)- 15.1 in. / 384 mm
Dimension (D1)- 14.6 in. / 371 mm
Dimension (E)- 11 in. / 279 mm
Dimension (H)- 23.6 in. / 600 mm

SKU: ZE4110DB

Enerpac ZE-4110DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box or LCD 2.5 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V

Name: Enerpac ZE-4110DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box or LCD 2.5 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V
Brand: Enerpac
SKU: ZE4110DB
Price: 12189.15 USD
Availability: InStock

$12,189.15

In stock

No sales tax

Expected delivery Jul 13 - Jul 17

Authorized Enerpac Distributor

Get Your Personalised Enerpac Quote

The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
