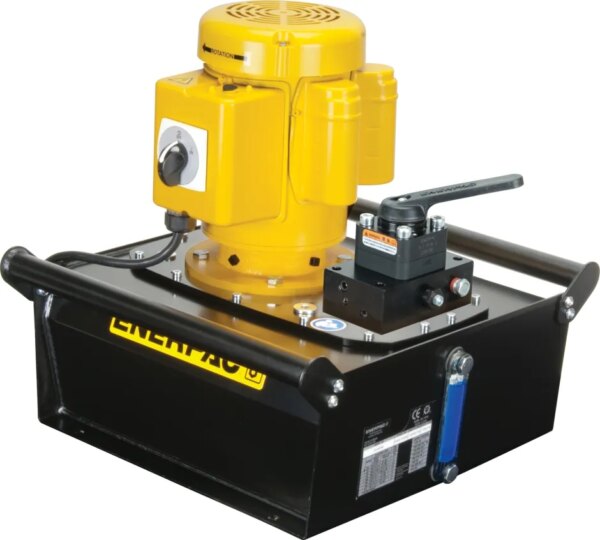

Enerpac ZE-4340MB Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 10 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V
| Weight | 231.1999969 lbs |
|---|---|
| Dimensions | 30 × 30 × 28 in |
| 10000 PSI Hydraulic Tools | Power Units |
| Manufacturer | Enerpac |

ZE-4340MB Specifications:
Maximum Operating Pressure (psi):Â 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3):Â 2310
Usable Oil Capacity (gal):Â 10
Maximum Flow at Rated Pressure:Â 60 in3/min
Output Flow Rate (in3/min) 100 psi:Â 650Â
Output Flow Rate (in3/min) 700 psi:Â 600
Output Flow Rate (in3/min) 5000 psi:Â 62
Output Flow Rate (in3/min) 10000 psi:Â 60
Motor Size (hp):Â 1.5
Motor Size (rpm):Â 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph
Motor Voltage:Â 115 V
Valve Function:Â Advance / Hold / Retract
Valve Operation: Manual
Valve Type: 3 way, 3 position, Tandem Center
Valve Model: VM33
Power Source:Â Electric
Pump Control:Â Manual
Motor Electrical Specification:Â 115 V, 1 Ph, 50/60 Hz
Sound Level (dBa):Â 75
Relief Valve Adjustment Range (psi):Â 1000-10000
Weight (lbs):Â 192
Enerpac ZE-Series Pump Brochure
ZE-4340MB Measurements:
- Dimension (A)- 10.6 in. / 270 mm
- Dimension (B)- 15.7 in. / 399Â mm
- Dimension (C)- 19.9 in. / 505 mm
- Dimension (D)- 22.7 in. / 577 mm
- Dimension (D1)- 22.5 in. / 572Â mm
- Dimension (E)- 18.9 in. / 480 mm
- Dimension (H)- 28.1 in. / 714 mm
|
|

Enerpac ZE-4340MB Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 10 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V
$11,081.05
In stock
No sales tax
Expected delivery Jul 24 - Jul 28
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
There are no reviews yet.
