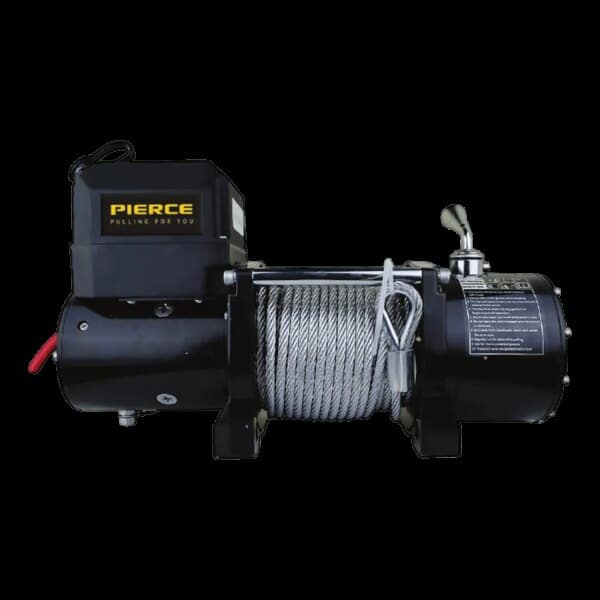

Pierce 9,000 lb. Recovery Winch

SELECT STATES ARE NON-SALES TAX-EXEMPT! PLEASE CALL TO CONFIRM LOCATION AND PROVIDE W9!

Pierce PS Series Winch Brochure

Specifications:

• BRAKE TYPE: Automatic Built-in Drum Brake
• CLUTCH TYPE: Sliding Ring Gear
• CONSTRUCTION: Cast Metal
• DRUM ROTATION: Counter-Clockwise (Underwound)
• GEAR RATIO: 265:1
• GEAR TYPE: 3-Stage Planetary Gear
• INCLUDED WIRE ROPE: 3/4″ x 94′
• MAX CAPACITY (LBS.): 9000
• MAX LINE SPEED:24 fpm
• MOTOR (HP): 5.5
• OPERATING VOLTAGE: 12 Volts DC
• POWER SOURCE: Electric, DC
• RECOMMENDED BATTERY: 650 CCA
• RECOMMENDED WIRE: 2 gauge

Features:

• High Amp Resistance and Output Strength Heavy Duty Motor
• Gear Box is Zinc Alloy
• Three Stage Planetary Gear Speed Reduction System
• Super Torque Strength
• Large Loading Mechanical Safety Brake System
