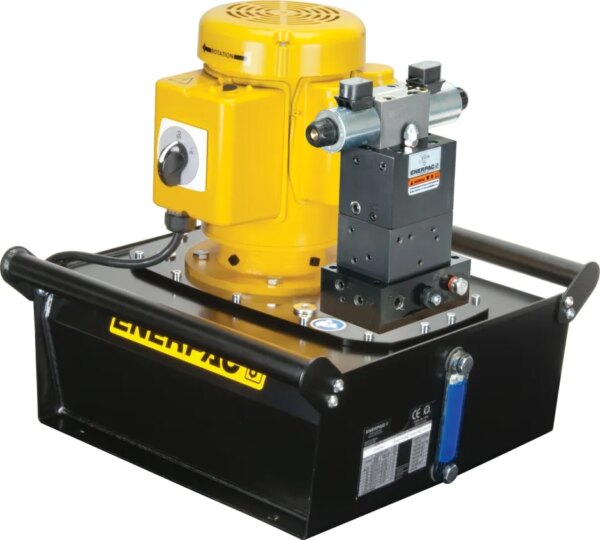

Enerpac ZE-3420SB Electric Hydraulic Pump 4/3 Solenoid Valve with Electric Box and LCD 5 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V
Specifications
| Weight | 191.600006 lbs |
|---|---|
| Dimensions | 30 × 30 × 28 in |
| 10000 PSI Hydraulic Tools | Power Units |
| Manufacturers | Enerpac |
Overview
ZE-3420SB Specifications:
Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Double-acting
Reservoir Capacity (in3): 1155
Usable Oil Capacity (gal): 5
Maximum Flow at Rated Pressure: 40 in3/min
Output Flow Rate (in3/min) 100 psi: 450
Output Flow Rate (in3/min) 700 psi: 385
Output Flow Rate (in3/min) 5000 psi: 42
Output Flow Rate (in3/min) 10000 psi: 40
Motor Size (hp): 1
Motor Size (rpm): 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph
Motor Voltage: 115 V
Valve Function: Advance / Hold / Retract
Valve Operation: Solenoid
Solenoid Valve Voltage: 24 VAC
Valve Type: 4 way, 3 position, Tandem Center
Valve Model: VM43
Power Source: Electric
Pump Control: Pendant
Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz
Sound Level (dBa): 75
Relief Valve Adjustment Range (psi): 1000-10000
Weight (lbs): 152
Enerpac ZE-Series Pump Brochure
ZE-3420SB Measurements:
- Dimension (A)- 7.1 in. / 180 mm
- Dimension (B)- 16.5 in. / 419 mm
- Dimension (C)- 16.6 in. / 422 mm
- Dimension (D)- 19.7 in. / 500 mm
- Dimension (D1)- 19.2 in. / 488 mm
- Dimension (E)- 15.6 in. / 396 mm
- Dimension (H)- 24.6 in. / 625 mm
|
|
Enerpac ZE-3420SB Electric Hydraulic Pump 4/3 Solenoid Valve with Electric Box and LCD 5 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V
SKU: ZE3420SB
$11,772.41 -13% $10,242.00
