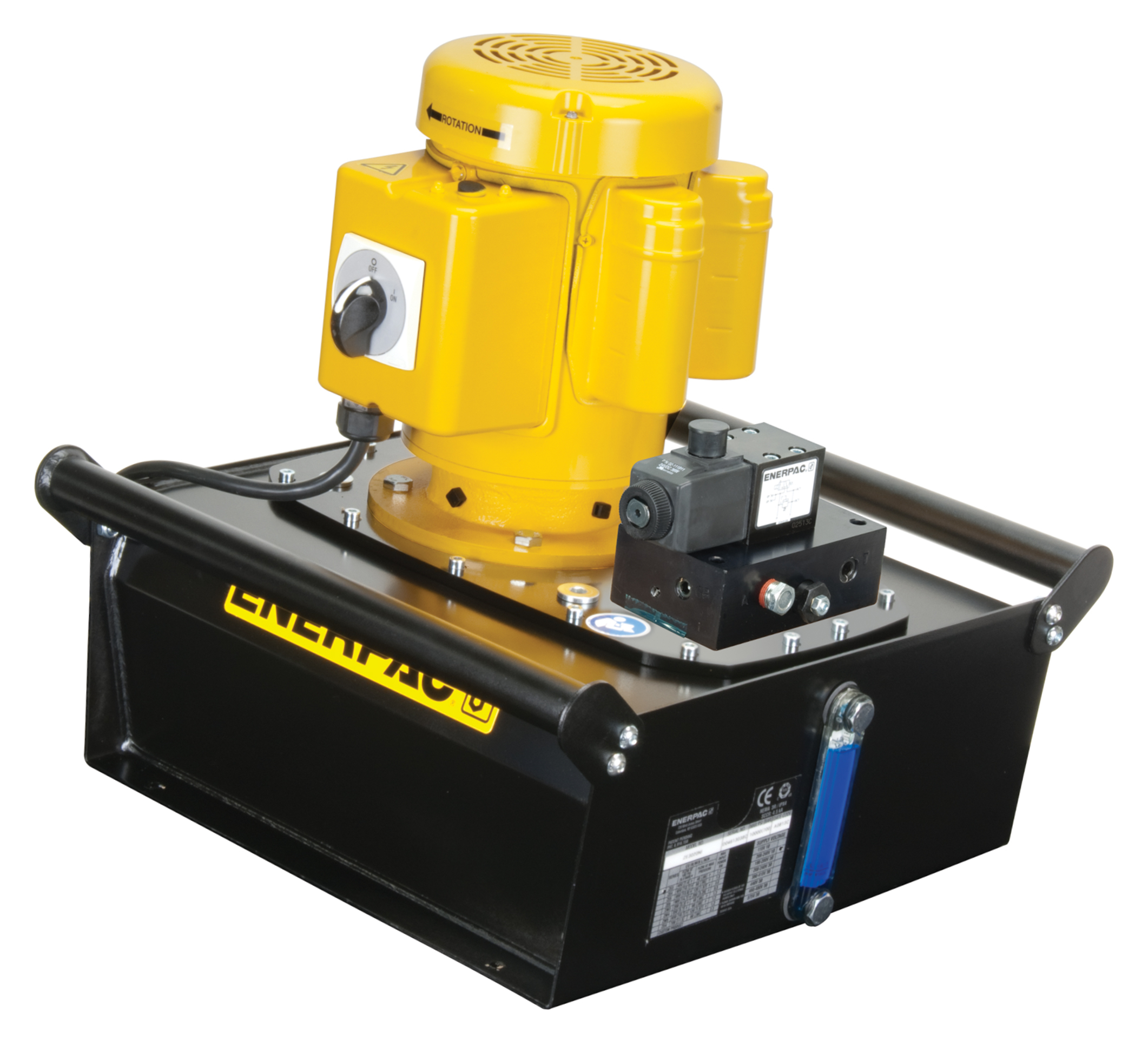

Enerpac ZE-41008MB Electric Hydraulic Pump with Venturi Valve 2 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V

Specifications
Weight 101 lbs
Dimensions 30 × 30 × 28 in
10000 PSI Hydraulic Tools

Power Units

Manufacturers

Enerpac

Overview

Enerpac Logo

 Contact Us For Current Availability

ZE-41008MB Specifications:

Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3): 462
Usable Oil Capacity (gal): 2
Maximum Flow at Rated Pressure: 60 in3/min

Output Flow Rate (in3/min) 100 psi: 650

Output Flow Rate (in3/min) 700 psi: 600

Output Flow Rate (in3/min) 5000 psi: 62

Output Flow Rate (in3/min) 10000 psi: 60

Motor Size (hp): 1.5
Motor Size (rpm): 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph

Motor Voltage: 115 V

Valve Operation: Manual
Solenoid Valve Voltage: 24 VAC
Valve Type: 3 way, 3 position, Tandem Center, Venturi Return Assist Valve
Valve Model: VM33VAC

Power Source: Electric
Pump Operation: Dump

Pump Control: Manual

Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz

Sound Level (dBa): 75

Relief Valve Adjustment Range (psi): 1000-10000

Weight (lbs): 101


Enerpac ZE-Series Pump Brochure

ZE-41008MB Measurements:

  • Dimension (A)- 5.6 in. / 143 mm
  • Dimension (B)- 11 in. / 279 mm
  • Dimension (C)- 8.1 in. / 152 mm
  • Dimension (H)- 20.2 in. / 513 mm

Enerpac ZE-41008MB Electric Hydraulic Pump with Venturi Valve 2 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V

0.0 (0)
SKU: ZE41008MB
0.0 out of 5 Read reviews
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

$9,851.11 -10% $8,866.00

enerpac
In stock Expected delivery between Apr 27 - May 04
5 sold in the last 72 hours
No sales tax
Free shipping
