ZE-5320LG Specifications:

Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3): 1155
Usable Oil Capacity (gal): 5
Maximum Flow at Rated Pressure: 120 in3/min

Output Flow Rate (in3/min) 100 psi: 850

Output Flow Rate (in3/min) 700 psi: 825

Output Flow Rate (in3/min) 5000 psi: 123

Output Flow Rate (in3/min) 10000 psi: 120

Motor Size (hp): 3
Motor Size (rpm): 1750
Motor Hertz: 50/60 Hz
Motor Phases: 3 Ph

Motor Voltage: 208-240 V

Valve Function: Advance / Hold / Retract
Valve Operation: Manual
Valve Type: 3 way, 2 position
Valve Model: VM32

Power Source: Electric

Pump Control: Manual

Motor Electrical Specification: 208-240 V, 3 Ph, 50/60 Hz

Sound Level (dBa): 75

Relief Valve Adjustment Range (psi): 1000-10000

Weight (lbs): 160


Enerpac ZE-Series Pump Brochure

ZE-5320LG Measurements:

  • Dimension (A)- 7.1 in. / 180 mm
  • Dimension (B)- 16.5 in. / 419 mm
  • Dimension (C)- 16.6 in. / 422 mm
  • Dimension (D)- 19.7 in. / 500 mm
  • Dimension (D1)- 19.2 in. / 488 mm
  • Dimension (E)- 15.6 in. / 396 mm
  • Dimension (H)- 24.6 in. / 625 mm

  Enerpac ZE-3110DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box  Scheme Dimensions

0.0 (0)
SKU: ZE5320LG
0.0 out of 5 Read reviews
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

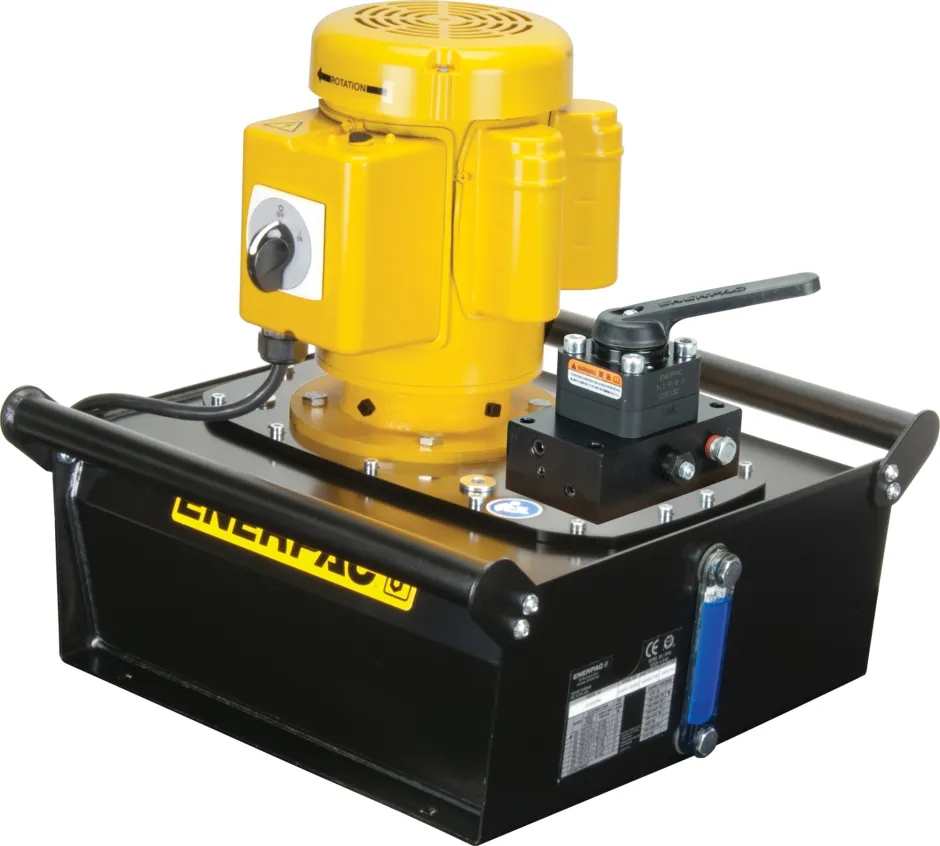

Enerpac ZE-5320LG Electric Hydraulic Pump 3/2 Manual Valve with Electric Box and LCD 5 gal Usable Oil 120 in3/min oil flow at 10,000 psi 208-240 V

$11,675.00

No sales tax
enerpac

Enerpac ZE-5320LG Electric Hydraulic Pump 3/2 Manual Valve with Electric Box and LCD 5 gal Usable Oil 120 in3/min oil flow at 10,000 psi 208-240 V

Specifications
Weight 199.3 lbs
Dimensions 30 × 30 × 28 in
