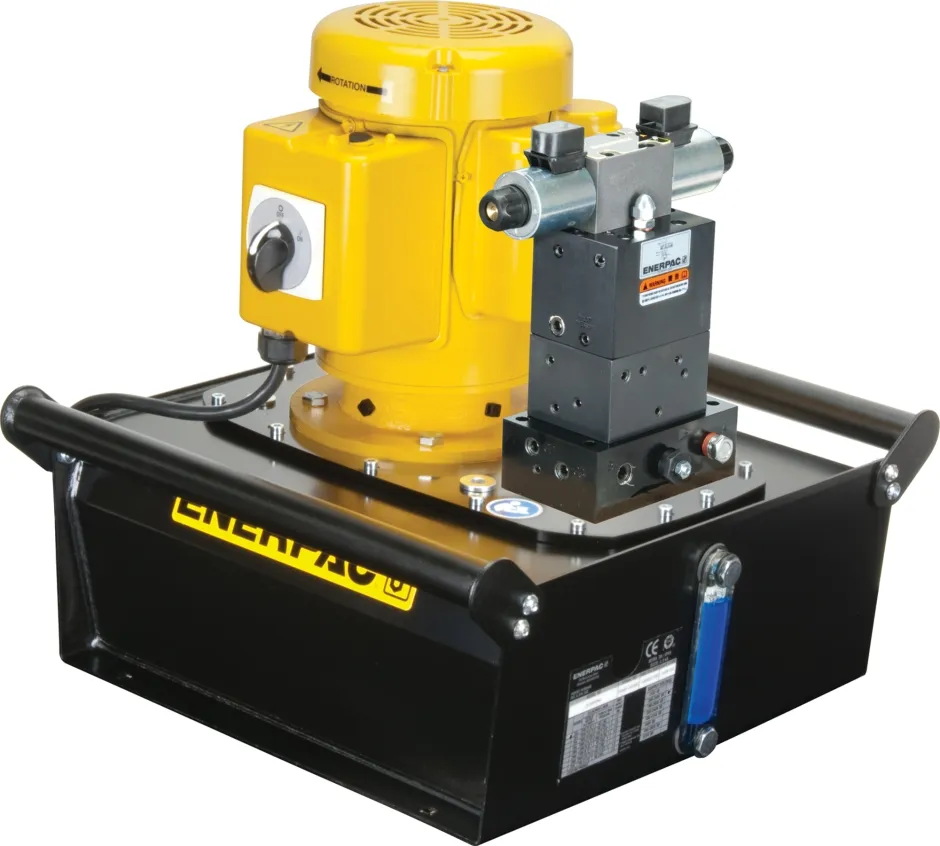

Enerpac ZE-6440SG Electric Hydraulic Pump 4/3 Solenoid Valve with Electric Box and LCD 10 gal Usable Oil 200 in3/min oil flow at 10,000 psi 208-240 V
Specifications
| Weight | 276 lbs |
|---|---|
| Dimensions | 30 × 30 × 28 in |
| 10000 PSI Hydraulic Tools | Power Units |
| Manufacturers | Enerpac |
Overview
Enerpac ZE-6440SG Specifications:
Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Double-acting
Reservoir Capacity (in3): 2310
Usable Oil Capacity (gal): 10
Maximum Flow at Rated Pressure: 200 in3/min
Output Flow Rate (in3/min) 100 psi: 900
Output Flow Rate (in3/min) 700 psi: 890
Output Flow Rate (in3/min) 5000 psi: 210
Output Flow Rate (in3/min) 10000 psi: 200
Motor Size (hp): 7.5
Motor Size (rpm): 3450
Motor Hertz: 50/60 Hz
Motor Phases: 3 Ph
Motor Voltage: 208-240 V
Valve Function: Advance / Hold / Retract
Valve Operation: Solenoid
Solenoid Valve Voltage: 24 VDC
Valve Type: 4 way, 3 position, Tandem Center
Valve Model: VM43
Power Source: Electric
Pump Control: Pendant
Motor Electrical Specification: 208-240 V, 3 Ph, 50/60 Hz
Sound Level (dBa): 80
Relief Valve Adjustment Range (psi): 1000-10000
Weight (lbs): 187
Enerpac ZE-Series Pump Brochure
Enerpac ZE-6440SG Measurements:
- Dimension (A)- 10.6 in. / 270 mm
- Dimension (B)- 15.7 in. / 399 mm
- Dimension (C)- 19.9 in. / 505 mm
- Dimension (D)- 22.7 in. / 577 mm
- Dimension (D1)- 22.5 in. / 572 mm
- Dimension (E)- 18.9 in. / 480 mm
- Dimension (H)- 28.1 in. / 714 mm
|
|
Enerpac ZE-6440SG Electric Hydraulic Pump 4/3 Solenoid Valve with Electric Box and LCD 10 gal Usable Oil 200 in3/min oil flow at 10,000 psi 208-240 V
SKU: ZE6440SG
$23,869.89 -7% $22,199.00
14 viewed in the last 24 hours
In stock Expected delivery between Sep 19 - Sep 26
No sales tax
Free shipping
Shop with Confidence
256-bit encrypted shopping with nmi.com
