WCTN1.5×10 hydraulic cylinder 3500 PSI, double acting, 5300 lbs column load. Rugged performance and reliability with free shipping. Order now!
| Weight | 10.0 lbs |
|---|---|
| Dimensions | 22 × 4 × 4 in |
| Cylinder Bore | 1.5" |
| Cylinder Stroke Ranges | 10 |
| Cylinder Extended Length | 28 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 18 |
| Cylinder Port Size | ORB – 6 |
| Manufacturer | MagisterHyd |
| Cylinder Outer Diameter | 1.88 in |
| Cylinder Rod Diameter | 1 in |
| Cylinder Overall Length | 19.25 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 5,300 lbs |
| Cylinder Oil Volume | 0.31 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |

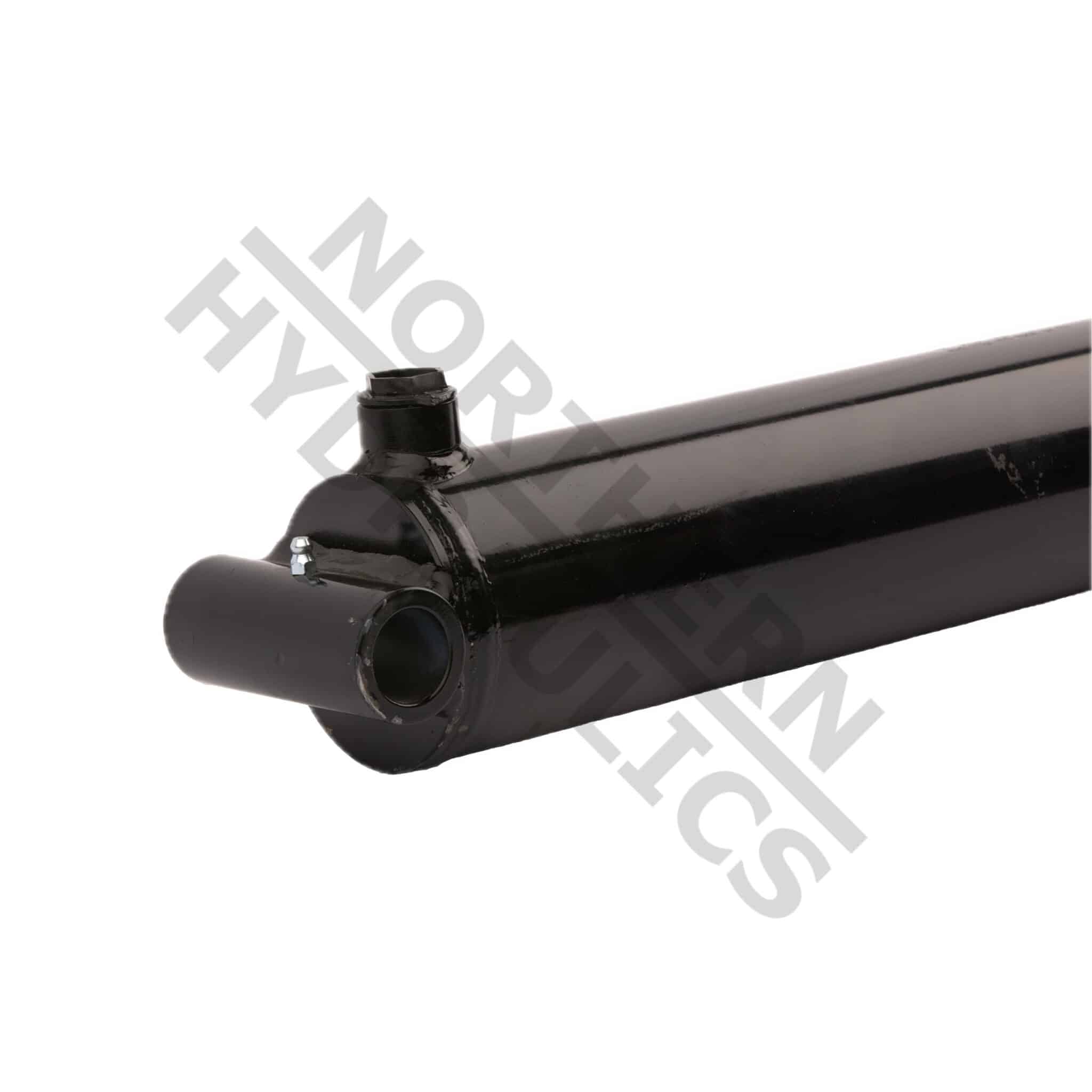

The WCTN1.5×10 Hydraulic Cylinder from Northern Hydraulics is designed to deliver exceptional power and durability for a variety of applications. With a 1.5-inch bore and a 10-inch stroke, this double acting cylinder provides the robust performance you need to tackle tough jobs.
- Bore Diameter: 1.5 inches
- Stroke Length: 10 inches
- Overall Length: 19.25 inches
- Extended Length: 28 inches
- Retracted Length: 18 inches
- Rod Diameter: 1 inch
- PSI Rating: 3500 PSI
- Column Load: 5,300 lbs
- Oil Volume: 0.31 quarts
- Rod Type: Chrome plated for added durability
- Action: Double Acting
- Connection Ports: SAE 6
- Style: Welded cross tube for enhanced strength
Ideal for a range of industrial applications, this hydraulic cylinder is engineered to withstand demanding conditions. Whether you’re using it in construction, agriculture, or manufacturing, the WCTN1.5×10 provides reliable performance day in and day out.
Key Benefits:
- Heavy-duty construction for maximum longevity
- Double acting design for improved efficiency
- Fast and easy installation with a cross tube design
- Exceptional performance in harsh conditions
- Free ground shipping within the Continental U.S.
Same-Day Shipping: All orders placed before 3 PM will be shipped the same day (excluding weekends and holidays).
Contact us for assistance: For help choosing the right hydraulic cylinder replacement or for any questions, don’t hesitate to reach out: (800) 823-4937
Quality Assurance: Our hydraulic cylinders are backed by a commitment to quality and performance, ensuring that you receive only the best.
Trusted Manufacturing Partnership
This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.
