Explore the WCTN2x16 hydraulic cylinder, featuring a 2.38" bore and 3500 PSI. Ideal for heavy-duty applications. Free ground shipping in the continental US.
Specifications
| Weight | 19 lbs |
|---|---|
| Dimensions | 28 × 4 × 4 in |
| Cylinder Bore | 2" |
| Cylinder Stroke Ranges | 16 |
| Cylinder Extended Length | 40 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 24 |
| Cylinder Port Size | ORB – 6 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.38 in |
| Cylinder Rod Diameter | 1.25 in |
| Cylinder Overall Length | 25.5 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 9,400 lbs |
| Cylinder Oil Volume | 0.87 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |
Overview

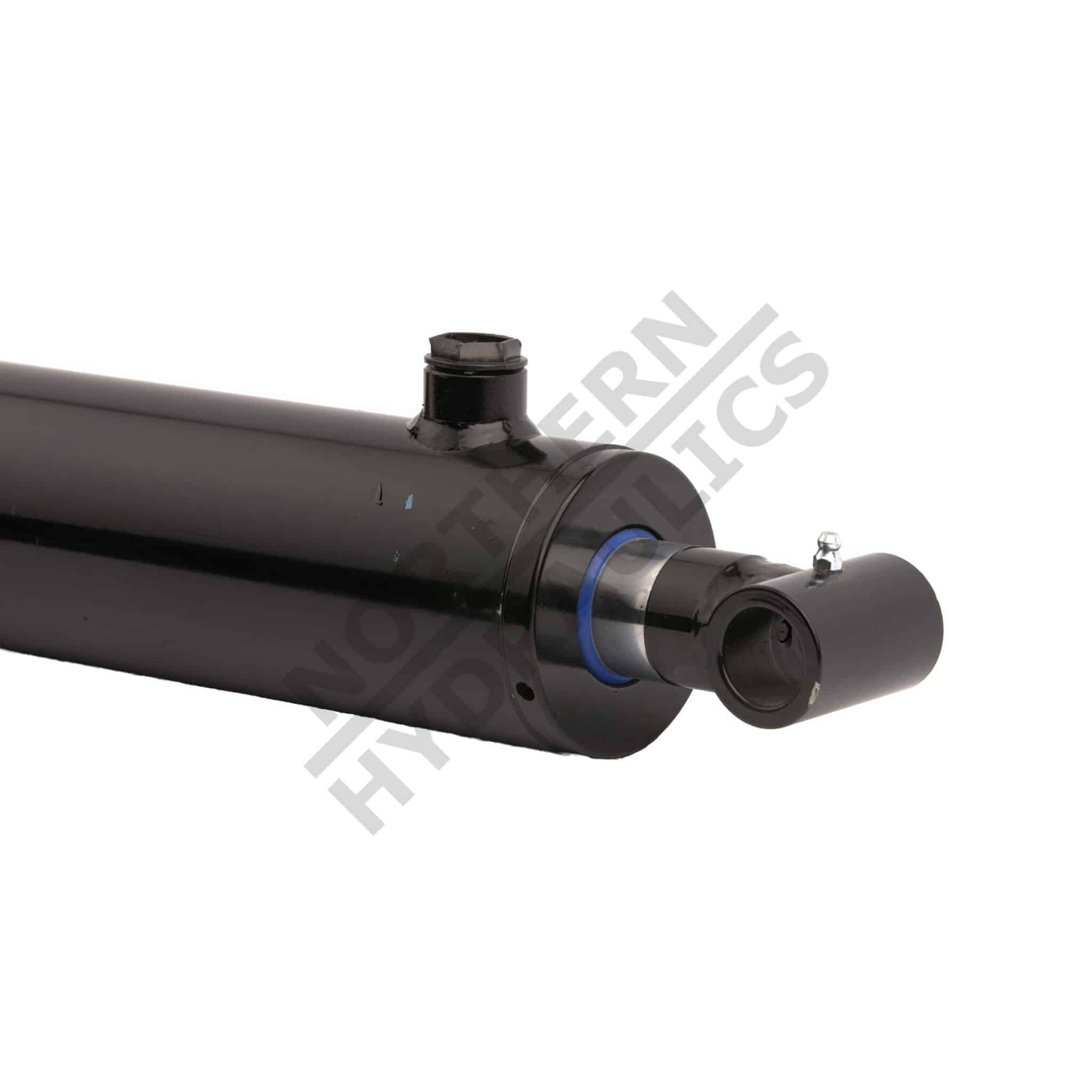

Introducing the WCTN2x16 Hydraulic Cylinder from Northern Hydraulics, a robust solution for your hydraulic needs. This double-acting cylinder, with a 2.38-inch bore and a 16-inch stroke, is designed for high-performance applications with a working pressure of 3500 PSI.
- Weight: 19 LBs
- Column Load: 9,400 LBs
- Oil Volume: 0.87 QTs
- Rod Type: Chrome Plated
- Rod End: Cross Tube
- Overall Length: 25.5 in
- Stroke: 16 in
- Extended Length: 40 in
- Retracted Length: 24 in
- Style: Welded
- PSI: 3500
- Ports: SAE 6
This hydraulic cylinder is perfect for various applications, including construction and agricultural machinery. It features a heavy-duty design that ensures long-lasting durability and performance in demanding conditions.
Key Benefits:
- High performance with a 3500 PSI rating.
- Designed to handle heavy loads efficiently.
- Chrome plated rod ensures resistance to wear.
- Double acting functionality for optimal operation.
- Compatible with various mounting configurations.
At Northern Hydraulics, we ensure that our products meet the highest standards of quality. The WCTN2x16 hydraulic cylinder is backed by a 2-year warranty and is eligible for free ground shipping within the continental US.
NOTE: Ensure proper measurements for your application to avoid misuse, as bent rods due to incorrect installation are not covered under warranty.
Same-Day Shipping: All orders placed before 3 PM will be shipped the same day (weekends and holidays excluded).
If you need assistance in selecting the right hydraulic cylinder, feel free to contact us at (800) 823-4937.
