Heavy-duty 1.5" bore x 14" stroke hydraulic cylinder rated for 3500 PSI. Perfect for various applications with free shipping on all orders.
| Weight | 13.0 lbs |
|---|---|
| Dimensions | 26 × 4 × 4 in |
| Cylinder Bore | 1.5" |
| Cylinder Stroke Ranges | 14 |
| Cylinder Extended Length | 37 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 23 |
| Cylinder Port Size | ORB – 6 |
| Manufacturer | Magister Hydraulics, MagisterHyd |
| Cylinder Outer Diameter | 1.88 in |
| Cylinder Rod Diameter | 1 in |
| Cylinder Overall Length | 22.4 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 5,300 lbs |
| Cylinder Oil Volume | 0.43 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Narrow Tube |
| Cylinder Action | Double Acting |
- Bore Size: 1.5 inches
- Stroke Length: 14 inches
- Overall Length: 22.4 inches
- Extended Length: 37 inches
- Retracted Length: 23 inches
- Pressure Rating: 3500 PSI
- Column Load: 5,300 LBs
- Oil Volume: 0.43 QTs
- Rod Type: Chrome Plated
- Rod Diameter: 1 inch
- Action: Double Acting
- Rod End: Narrow Tube
- Ports Type: SAE 6
The Northern Hydraulics WTGN1.5×14 hydraulic cylinder is designed for robust performance in a variety of heavy-duty applications. Perfectly suitable for construction, agriculture, and industrial use, this cylinder is engineered to meet high standards of durability and reliability.
Key Features:
- High pressure rating of 3500 PSI ensures optimal performance under load.
- Double acting design for both push and pull operations, providing versatility in usage.
- Chrome plated rod offers enhanced resistance to corrosion and wear.
- Compact and lightweight design with only 13 LBs, making it easy to install and replace.
- Welded style for maximum strength and durability, perfect for harsh working conditions.
Usage Information:
To use the WTGN1.5×14 hydraulic cylinder, ensure the hydraulic system is compatible and follow standard hydraulic installation procedures. Regularly check for any signs of wear or leakage, and maintain oil levels for proper operation.
Note: If you have any questions regarding compatible applications or installation, feel free to reach out to us at (800) 823-4937.
Experience top-tier performance with our hydraulic cylinder, built for those who demand quality and reliability in their equipment.
Free Ground Shipping: Enjoy free shipping on all orders within the Continental U.S.!
Order Now! Act fast and enhance your hydraulic systems with the WTGN1.5×14 hydraulic cylinder.
Trusted Manufacturing Partnership
This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.

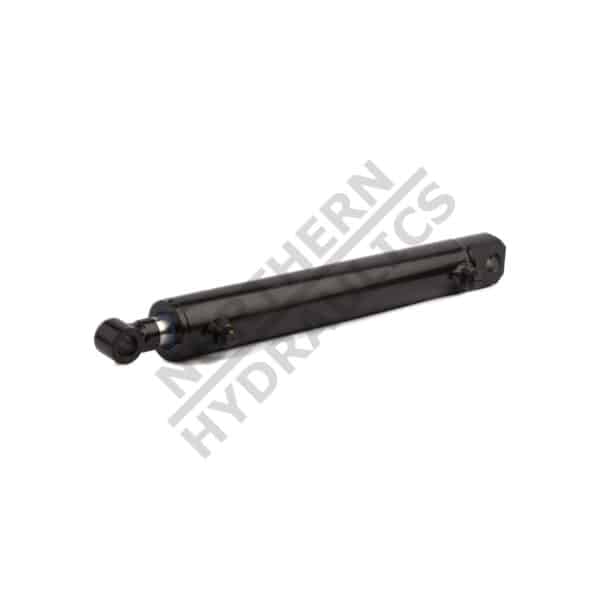

1.5 Bore x 14 Stroke Hydraulic Cylinder | Magister
$195.00
Ready to order
No sales tax
Free shipping
Expected delivery Oct 14 - Oct 20
Secure checkoutEncrypted card payments · pay over time with Affirm, Klarna or Afterpay
There are no reviews yet.
