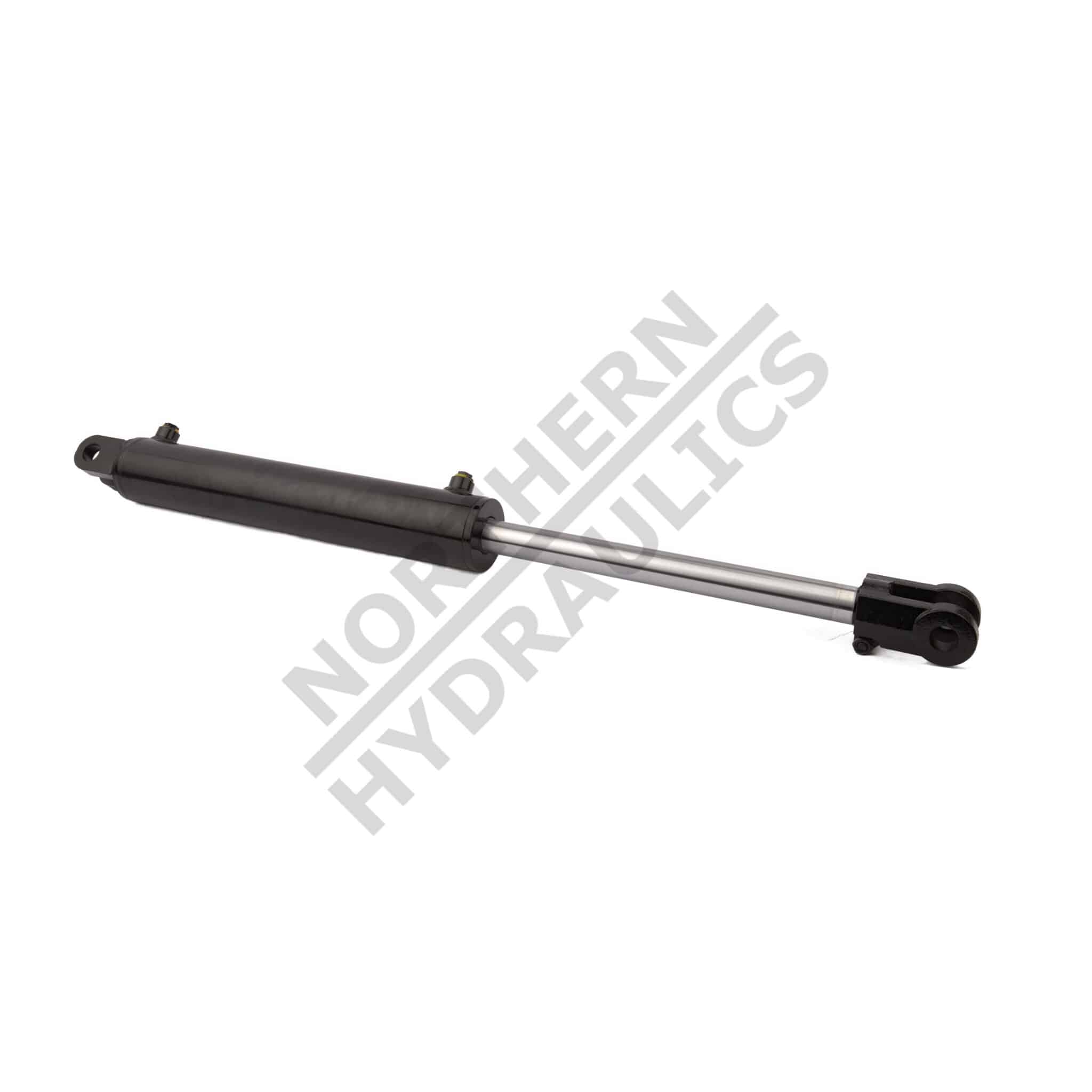

2.5 Bore x 16 Stroke Hydraulic Cylinder

• Dimensions: Outer Diameter: 2.87 in, Rod Diameter: 1.25 in, Overall Length: 28.25 in
• Action: Double Acting for versatile performance
• Stroke Length: 16 inches with extended length of 42.25 inches and retracted length of 26.25 inches
• Pressure Rating: 3500 PSI, ensures powerful performance suitable for heavy-duty applications
• Load Capacity: Column load of 14,700 lbs for maximum strength
• Oil Volume: 1.36 quarts, ensuring optimal operation
• Rod Type: Chrome-plated for durability and corrosion resistance
• Rod End: Clevis for easy installation and compatibility
• Style: Welded construction that enhances reliability
• Ports: SAE 8 for convenient connections

NOTE: Hydraulic cylinders may experience wear over time; ensure regular maintenance for optimal life. Misuse or incorrect measurements can result in damage that is not covered under warranty.

Shipping Information:

• Same-Day Shipping: Orders placed before 3 PM will ship the same day (excluding weekends and holidays).
• Free Ground Shipping available to Continental US customers.
• Tariff-FREE products.
• All components are Made in Europe.

If you have any questions or need assistance selecting the right hydraulic cylinder replacement, please contact us at (800) 823-4937.
