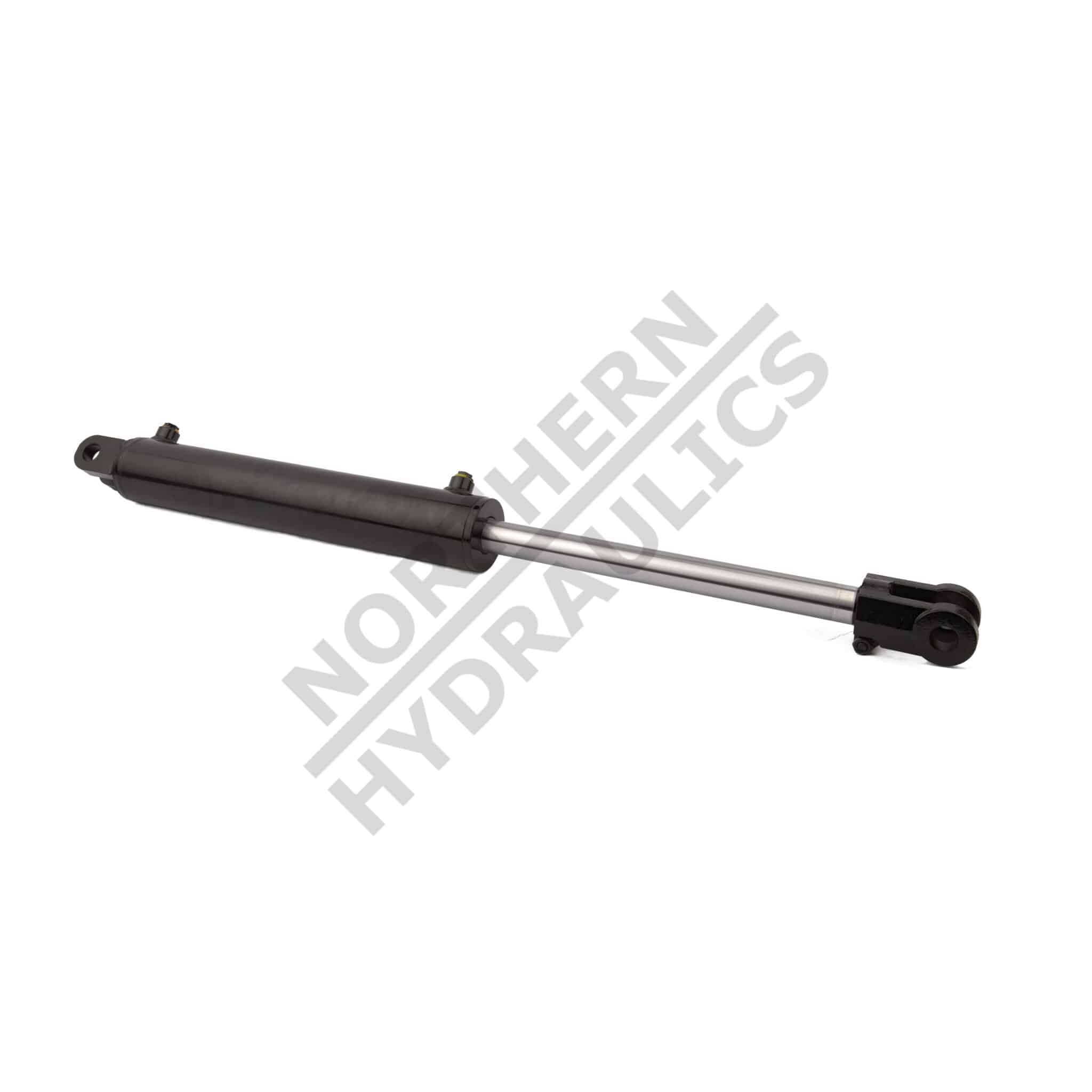

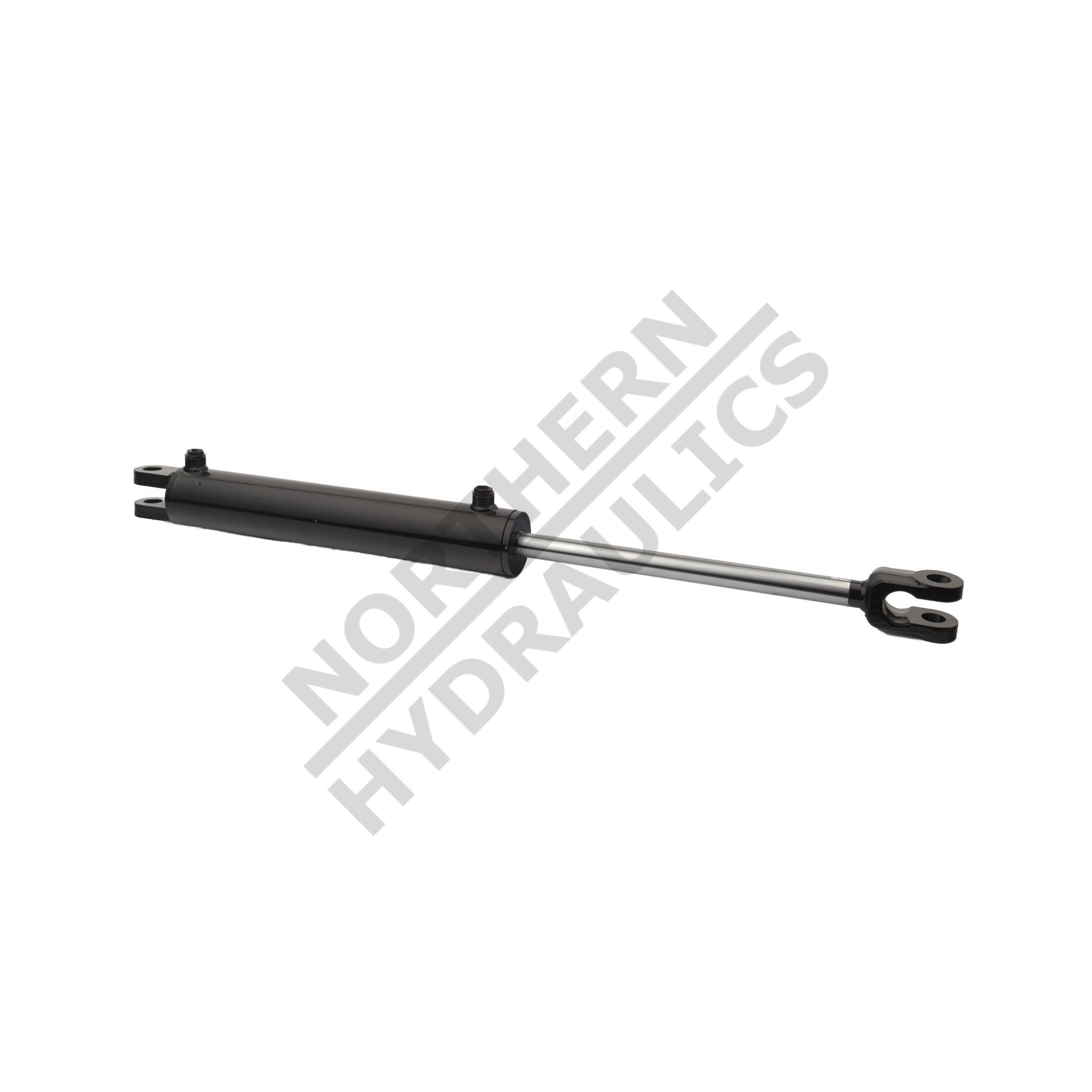

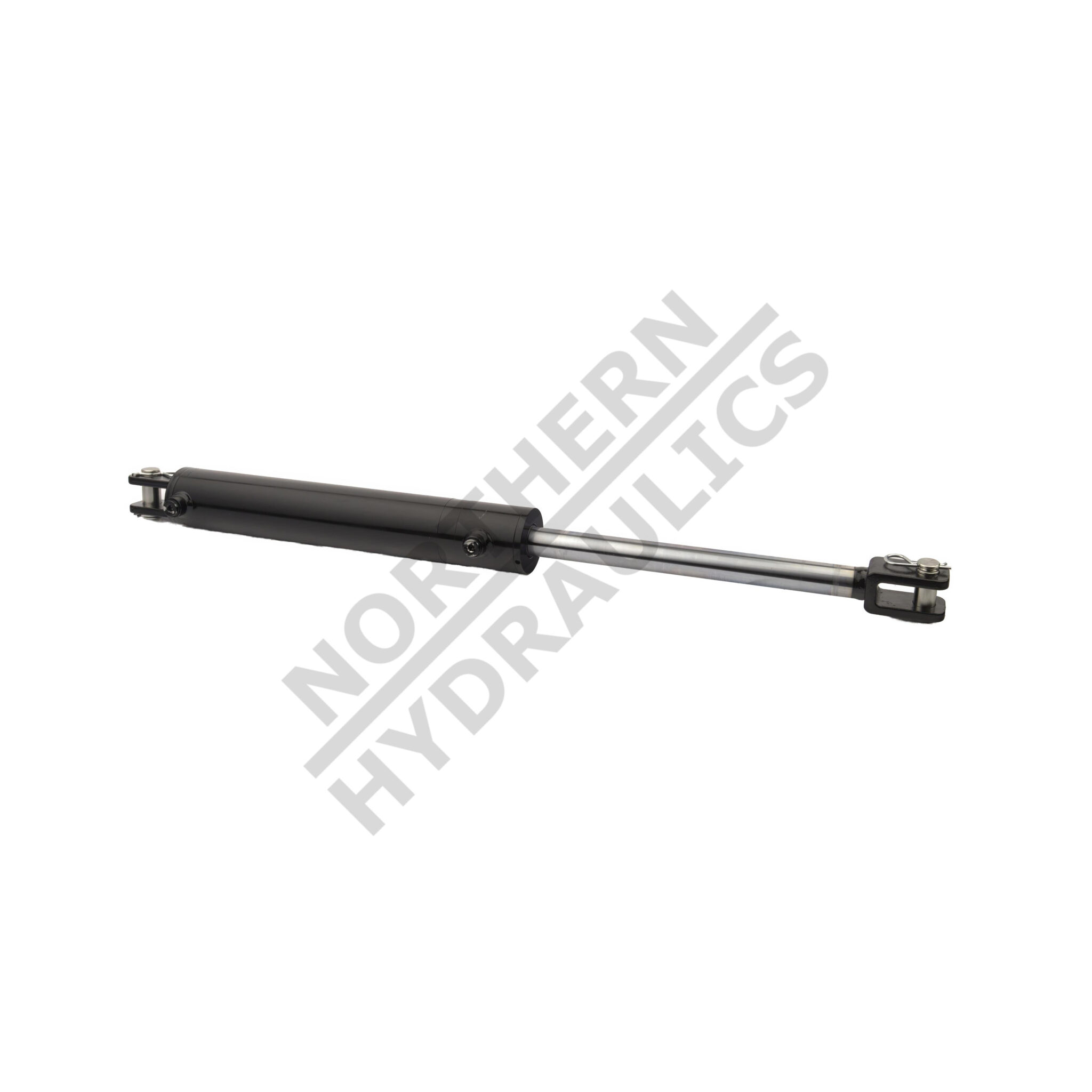

2.5" bore x 8" stroke hydraulic cylinder, 3500 PSI, durable welded design. Perfect for various applications. Fast shipping from Northern Hydraulics.
Specifications
| Weight | 22 lbs |
|---|---|
| Dimensions | 22 × 5 × 5 in |
| Cylinder Bore | 2.5" |
| Cylinder Stroke Ranges | 8 ASAE |
| Cylinder Extended Length | 28.25 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 20.25 |
| Cylinder Port Size | ORB – 8 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.87 in |
| Cylinder Rod Diameter | 1.25 in |
| Cylinder Overall Length | 22.25 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 14,700 lbs |
| Cylinder Oil Volume | 0.68 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Clevis |
| Cylinder Action | Double Acting |
Overview
- Bore Size: 2.5 inches.
- Stroke Length: 8 inches ASAE.
- Overall Length: 22.25 inches.
- Extended Length: 28.25 inches.
- Retracted Length: 20.25 inches.
- Pressure Rating: 3500 PSI.
- Column Load: 14,700 LBs.
- Oil Volume: 0.68 QTs.
- Rod Type: Chrome Plated.
- Rod Diameter: 1.25 inches.
- Ports: SAE 8.
- Action: Double Acting.
- Style: Welded.
- Rod End: Clevis.
This heavy-duty hydraulic cylinder from Northern Hydraulics is designed to perform under pressure, offering reliable operation in various applications. Ideal for replacing older hydraulic systems or for new installations, it features a robust welded construction and is built to withstand the rigors of demanding environments.
Features & Benefits:
- Double acting with 3500 PSI for dependable lift and force.
- Welded construction ensures durability and leakage-free operation.
- Compatible with standard SAE 8 ports for easy installation.
- Chrome plated rod provides enhanced corrosion resistance.
Usage Information:
To install, ensure the clevis rod end is correctly aligned with the attachment point. Maintenance includes regularly checking for leaks and keeping the cylinder clean. For optimal performance, perform routine inspections as per manufacturer suggestions.
When looking for a hydraulic solution, look no further than Northern Hydraulics’ range of cylinders, built with quality and reliability in mind.
Order Now! Experience efficient hydraulic performance with the WCLN2.5×8 ASAE hydraulic cylinder. If you need assistance choosing the right hydraulic cylinder, call us at (800) 823-4937.
2.5 bore x 8 stroke hydraulic cylinder – Double Acting | Northern Hydraulics
SKU: WCLN2.5x8 ASAE
$211.70 -6% $199.00
1+
$ 199.00/piece
4+
$ 189.05/piece
-5%
8+
$ 179.10/piece
-10%
35 viewed in the last 24 hours
In stock Expected delivery between Oct 06 - Oct 13
No sales tax
Free shipping
