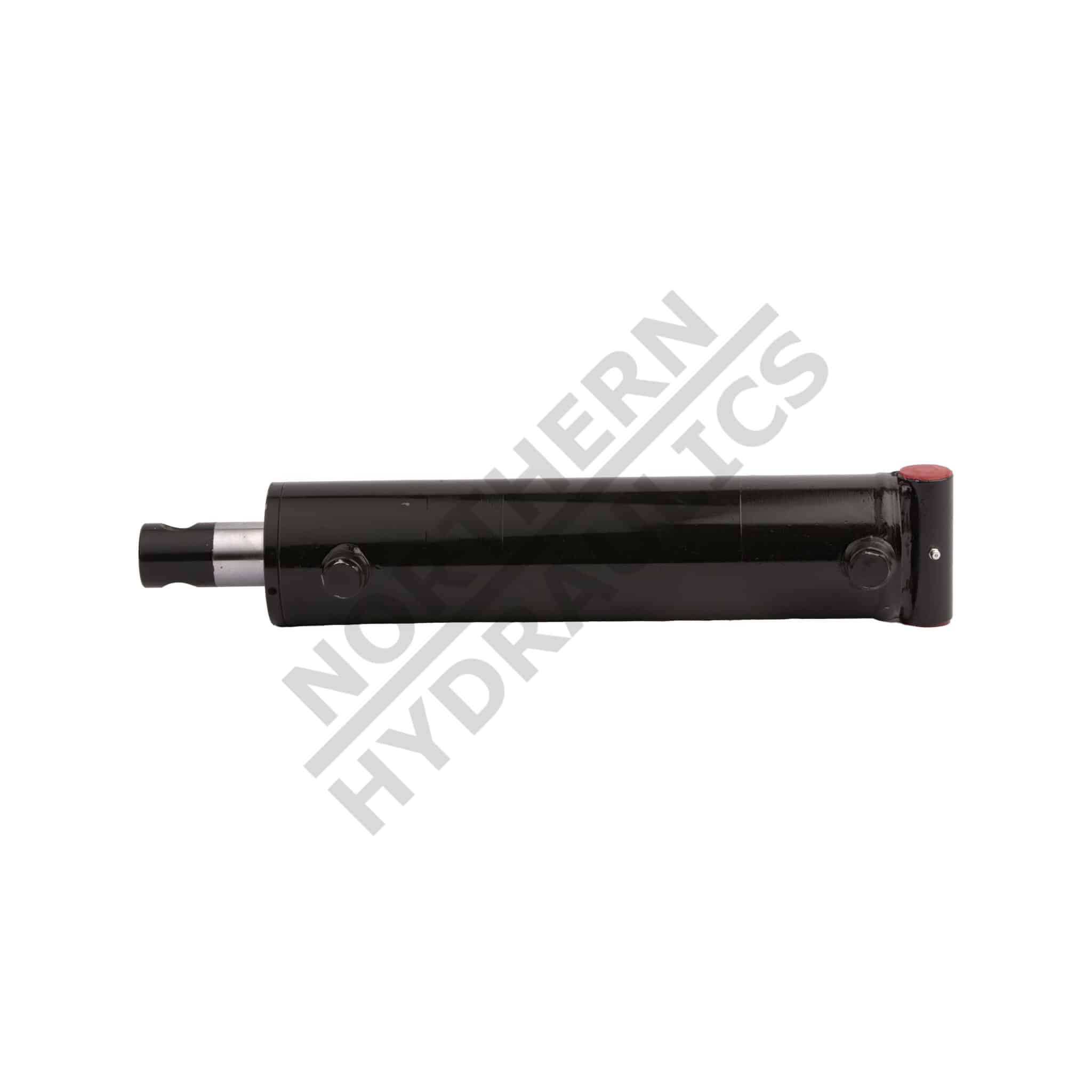

• Model: 2.5 Bore x 24 Stroke Hydraulic Cylinder
• Specifications:
  • Outer Diameter: 2.87 in
  • Rod Diameter: 1.5 in
  • Overall Length: 33.37 in
  • Extended Length: 56 in
  • Retracted Length: 32 in
  • PSI Rating: 3500 PSI
  • Column Load: 14,700 lbs
  • Oil Volume: 2.04 qts
  • Rod Type: Chrome Plated
  • Rod End: Pin Hole
  • Action: Double Acting
  • Style: Welded
  • Ports: SAE 8
• Features:
  • High durability and performance with a maximum pressure of 3500 PSI.
  • Double acting design for effective power in both directions.
  • Chrome plated rod for improved resistance to wear and corrosion.
  • Designed to handle high load capacities of up to 14,700 lbs.
  • Compatible with various industrial applications and equipment.
• Shipping Information:
  • Free ground shipping across the Continental US.
  • Same-day shipping for orders placed before 3 PM.

NOTE: The chrome-plated rod is NOT induction hardened. Bent rods due to misuse are not covered under warranty.

Don’t let heavy-duty tasks slow you down! Whether you’re a professional in construction or farming, this hydraulic cylinder is engineered to meet your needs. If you require assistance selecting the right hydraulic cylinder replacement, please contact us at (800) 823-4937.
