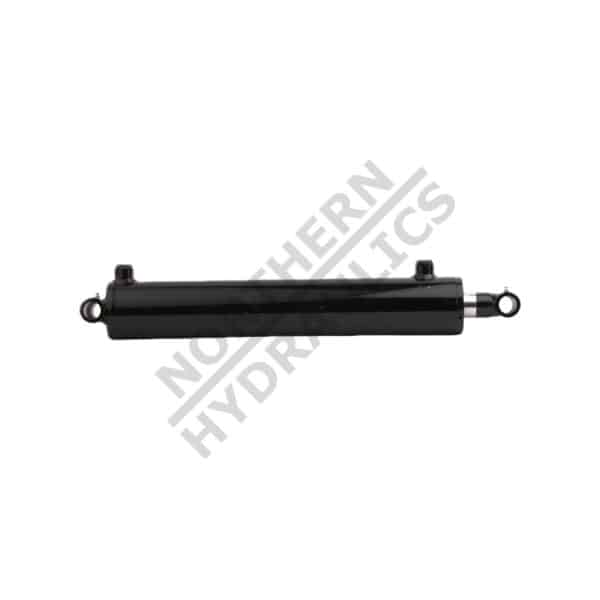

Buy WCTN3.5×16 double-acting hydraulic cylinder with 3.86 inch outer diameter and 3500 PSI durability. Free shipping and 2-year warranty!

Manufacturer Magister Hydraulics, MagisterHyd
Cylinder Style Welded
Cylinder Rod Type Chrome Plated
Cylinder PSI 3,500 PSI
Cylinder Column Load 28,800 lb
Cylinder Port Size ORB – 8
Cylinder Bore 3.5"
Cylinder Stroke Ranges 16 in
Cylinder Extended Length 42 in
Cylinder Retracted Length 26 in
Cylinder Outer Diameter 3.86 in
Cylinder Rod Diameter 1.75 in
Cylinder Overall Length 28 in
Cylinder Oil Volume 2.66 qts

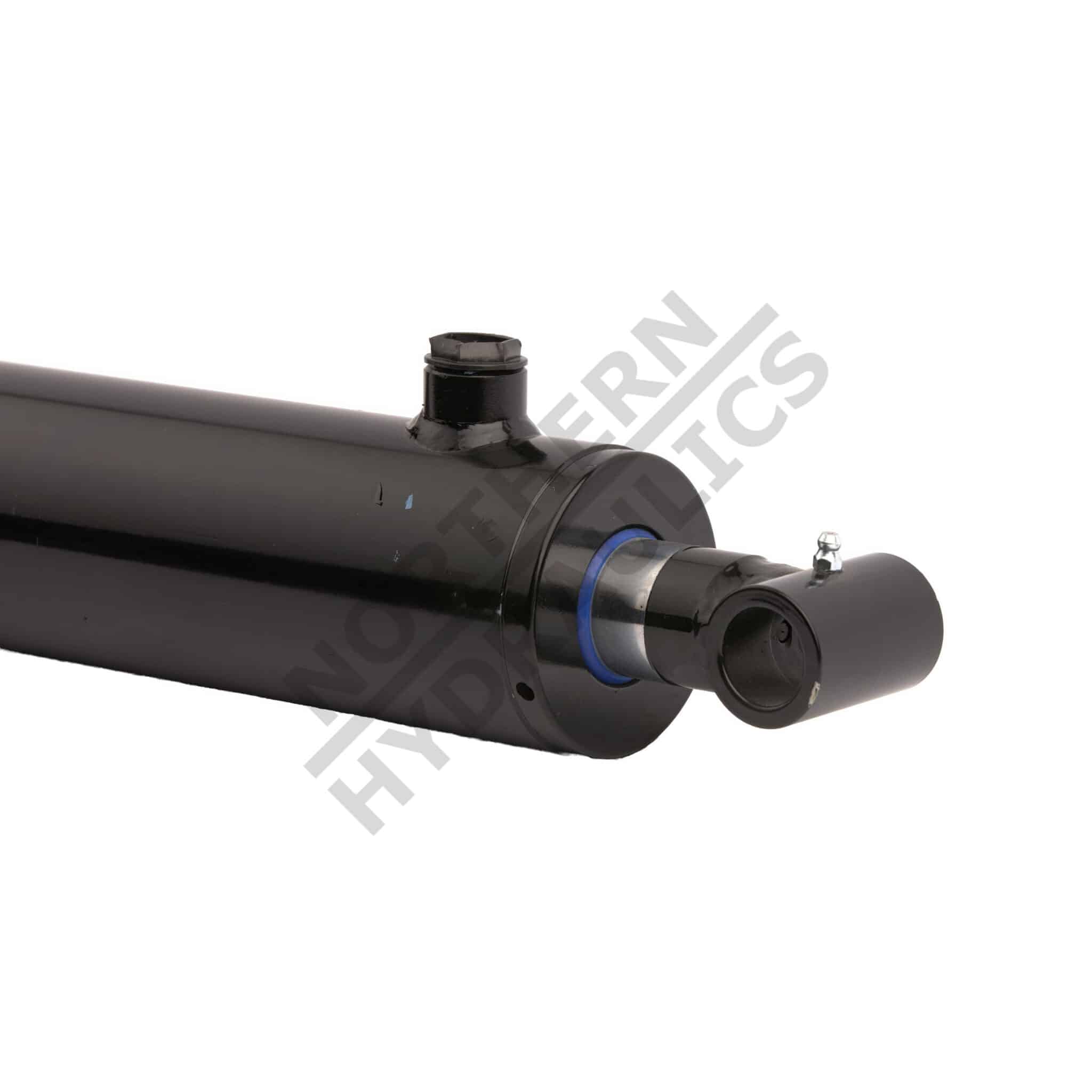

Cylinder Rod End Cross Tube
Cylinder Action Double Acting
Shipping weight 41 lb
Package size 28 × 5 × 5 in

The WCTN3.5×16 Hydraulic Cylinder is engineered for exceptional performance and durability, making it an essential component for various heavy-duty machinery applications. Featuring a robust double-acting design, this hydraulic cylinder can handle impressive loads with a column load capacity of 28,800 LBs and a maximum pressure rating of 3500 PSI.

  • Outer Diameter: 3.86 inches.
  • Rod Diameter: 1.75 inches.
  • Stroke Length: 16 inches.
  • Overall Length: 28 inches.
  • Extended Length: 42 inches.
  • Retracted Length: 26 inches.
  • Oil Volume: 2.66 quarts.
  • Rod Type: Chrome plated for enhanced durability.
  • Rod End: Cross tube design for versatile mounting options.
  • Style: Welded cylinder for robust construction.
  • Ports: SAE 8
  • Warranty: 2-year warranty for peace of mind.
  • Shipping: Free Ground Shipping within the Continental US.

NOTE! The chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of misuse (wrong measurements or type of application), such cases are not covered under warranty!

With its combination of strength, reliability, and versatility, the WCTN3.5×16 hydraulic cylinder is compatible with various equipment brands and is ideal for anyone in need of high-performance hydraulic components. It serves as an excellent replacement for older, discontinued hydraulic models.

Same-Day Shipping: Orders placed before 3 PM will be shipped the same day (excluding weekends and holidays).

For assistance: If you need help choosing the right hydraulic cylinder replacement, please feel free to contact us at (800) 823-4937.

Trusted Manufacturing Partnership

This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.
