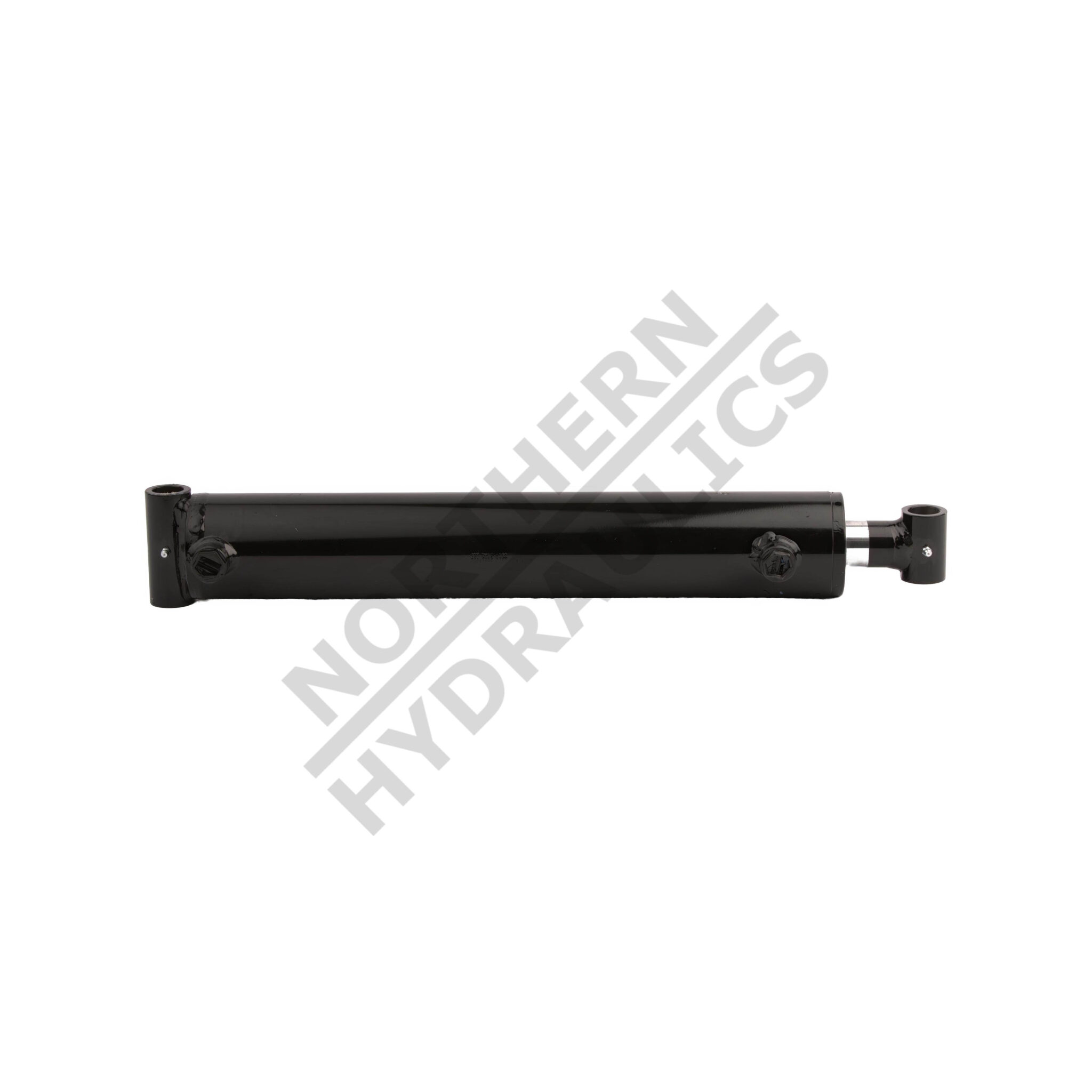

3.5" bore x 12" stroke hydraulic cylinder, double-acting, 3500 PSI, 28,800 lbs load capacity. Durable, welded cylinder with free shipping in the continental US.
| Weight | 36.0 lbs |
|---|---|
| Dimensions | 24 × 5 × 5 in |
| Cylinder Bore | 3.5" |
| Cylinder Stroke Ranges | 12 |
| Cylinder Extended Length | 34 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 22 |
| Cylinder Port Size | ORB – 8 |
| Manufacturer | Magister Hydraulics, MagisterHyd |
| Cylinder Outer Diameter | 3.86 in |
| Cylinder Rod Diameter | 1.75 in |
| Cylinder Overall Length | 24 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 28,800 lbs |
| Cylinder Oil Volume | 2 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |
- Dimensions: 3.5″ bore x 12″ stroke hydraulic cylinder.
- Pressure Rating: 3500 PSI, suitable for heavy-duty applications.
- Column Load: Can handle up to 28,800 lbs, making it ideal for demanding tasks.
- Oil Volume: Requires 2 quarts of hydraulic oil for operation.
- Construction: Welded design, ensuring durability and reliability in various environments.
- Rod Type: Chrome plated for enhanced resistance to wear and corrosion.
- Rod End: Features a cross tube design for versatile installation options.
- Action: Double acting for effective pushing and pulling in both directions.
- Extended Length: 34″ when fully extended, 22″ when retracted.
- Ports: Equipped with SAE 8 ports for easy connections.
- Weight: 36 lbs for strategic handling and installation.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of misuse (wrong measurements or type of application); such cases are not covered under warranty!
Same-Day Shipping: All orders made until 3 PM will be shipped the same day (except weekends and holidays).
Special Offer: Enjoy free ground shipping in the continental US on this product.
Tariff-FREE cylinders.
Made in Europe.
If you need assistance choosing a proper hydraulic cylinder replacement, do not hesitate to contact us:(800) 823-4937
Trusted Manufacturing Partnership
This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.
3.5 Bore x 12 Stroke Double Acting Hydraulic Cylinder | Magister
$317.00
In stock
No sales tax
Free shipping
Expected delivery Jul 21 - Jul 25
Build quality looks solid and the welds are clean — way better than some budget stuff I've bought before. Took about a week to arrive which was fine. Would definitly buy from here again.
fit perfect
been running it for about three weeks on a wood splitter, no leaks, moves smooth. price was right.
works great
Got it on a tilt cylinder for a small dozer attachment — works, but the mounting tolerances were a little loose and I had to shim it to get a clean fit. Nothing that stopped the job but worth knowing if you're doing precision work. Pressure seems fine under load.
