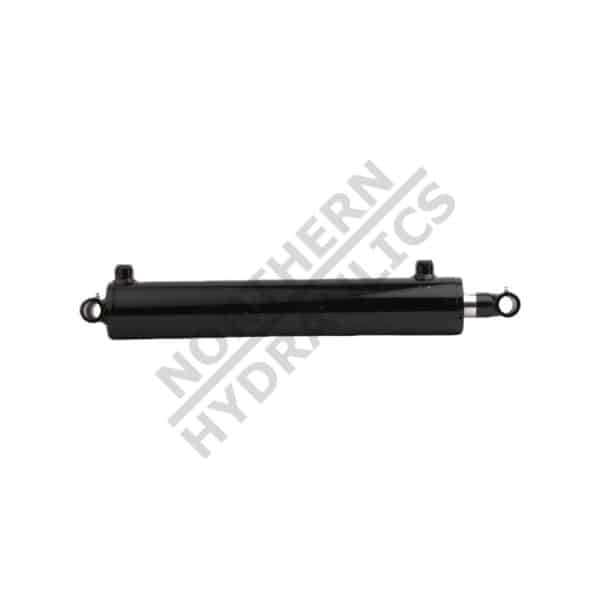

Introducing the WCTN3x10, a robust double acting hydraulic cylinder designed to deliver strength and reliability under pressure. With a 1.5″ bore and a 10″ stroke, this hydraulic cylinder is perfect for a variety of applications, offering exceptional performance and efficiency.

• Specifications:
• Bore Diameter: 1.5 in
• Stroke Length: 10 in
• Maximum Pressure: 3500 PSI
• Overall Length: 19.5 in
• Extended Length: 28 in
• Retracted Length: 18 in
• Rod Diameter: 1.5 in
• Oil Volume: 1.22 QTs
• Column Load Capacity: 21,000 LBs
• Rod Type: Chrome Plated for durability
• Port Type: SAE 8 for easy connectivity
• Style: Welded for enhanced strength
• Action: Double Acting, providing force in both directions
• Rod End: Cross Tube configuration for versatile mounting

This cylinder is manufactured by Northern Hydraulics, known for their high-quality hydraulic solutions that withstand the toughest operational challenges. It is ideal for construction, agricultural, and industrial applications, where reliable hydraulic power is essential.

Key Benefits:

• Heavy Duty Construction: Built to handle high pressure and heavy loads.
• Versatile Use: Compatible with numerous industrial machinery brands.
• Easy Installation: Comes with cross tube ends, ensuring adaptability.

Same-Day Shipping: All orders received by 3 pm will be shipped the same day (excluding weekends and holidays).

Enjoy free ground shipping for all orders within the continental US.

Note: Tariff-FREE cylinders – Made in Europe.

If you need guidance in selecting the right hydraulic cylinder for your needs, please contact our support team at (800) 823-4937.
