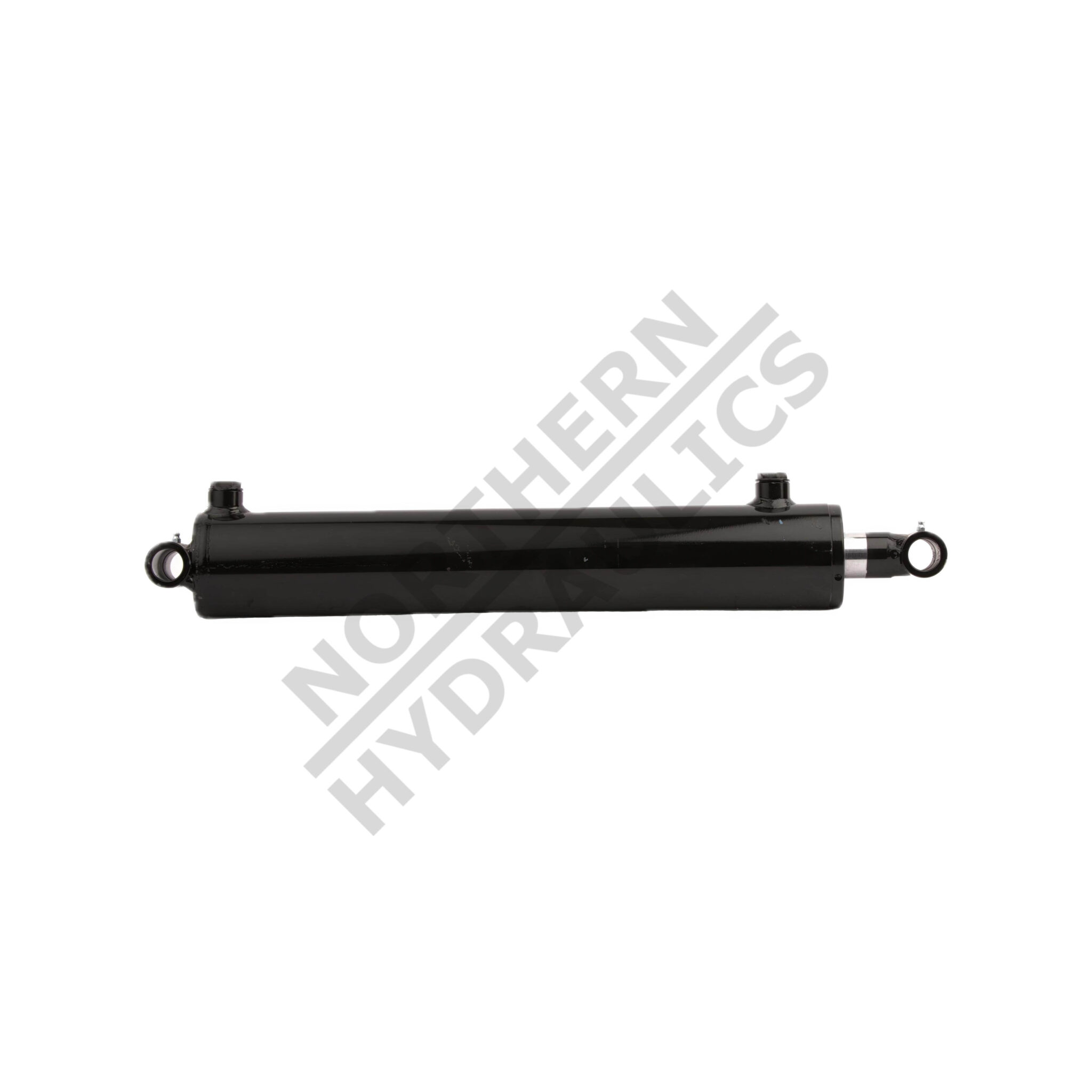

Introducing the 4.5″ x 8″ Welded Cross Tube Hydraulic Cylinder from Northern Hydraulics. Engineered for maximum durability and performance, this double-acting cylinder is ideal for various heavy-duty applications. With a powerful 3500 PSI operating pressure and a column load capacity of 37,700 LBs, it is designed to meet the demands of robust industrial use.

• Dimensions: 4.5″ outer diameter, 2″ rod diameter, overall length of 20.25″.
• Stroke Length: Features an 8″ stroke with an extended length of 26″ and a retracted length of 18″.
• Material: Constructed with high-quality materials, including a chrome-plated rod for corrosion resistance and long life.
• Ports: Includes SAE 8 ports for easy installation and compatibility.
• Hydraulic Action: This is a double-acting cylinder, providing equal force in both directions for reliable performance.
• Oil Volume: Requires 1.74 quarts of oil for optimal function.
• Style: This cylinder is designed as a welded type for enhanced strength and performance.

NOTE: Chrome-plated rod is NOT induction hardened. Possible bent rod is a result of misuse (wrong measurements or application type), such cases are not covered under warranty!

Same-Day Shipping: All orders received before 3 PM will be shipped the same day (excluding weekends and holidays).

Free Ground Shipping: Available across the Continental US.

Tariff-FREE cylinders. Made in Europe.

If you need assistance choosing the proper hydraulic cylinder replacement, do not hesitate to contact us at (800) 823-4937.
