Discover the WCLN3x36 hydraulic cylinder with 1.5" diameter and 36" stroke. 3500 PSI with a double acting design. Request your quote today!
Specifications
| Weight | 55 lbs |
|---|---|
| Dimensions | 48 × 6 × 6 in |
| Cylinder Bore | 3" |
| Cylinder Stroke Ranges | 36 |
| Cylinder Extended Length | 82.25 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 46.25 |
| Cylinder Port Size | ORB – 8 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 3.37 in |
| Cylinder Rod Diameter | 1.5 in |
| Cylinder Overall Length | 48.25 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 8,200 lbs |
| Cylinder Oil Volume | 4.4 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Clevis |
| Cylinder Action | Double Acting |
Overview

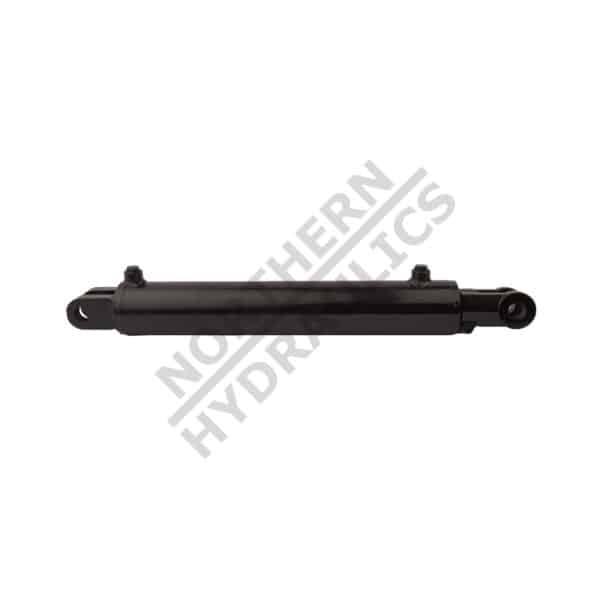

The WCLN3x36 Hydraulic Cylinder is engineered for strength and reliability, ideal for a variety of industrial applications. With its robust 1.5 inch diameter and 36 inch stroke, this double-acting hydraulic cylinder provides exceptional performance at a maximum pressure of 3500 PSI. Designed for efficiency and longevity, it’s the perfect solution for those in need of powerful hydraulic solutions.
Key Features and Benefits:
- Outer Diameter: 3.37 inches for a durable structure.
- Rod Diameter: 1.5 inches featuring high-quality chrome plating for enhanced longevity.
- Stroke Length: 36 inches with extended length of 82.25 inches and retracted length of 46.25 inches.
- Column Load Capacity: Up to 8,200 pounds, providing formidable lifting power.
- Oil Volume: 4.4 quarts, ensuring adequate fluid supply for optimal performance.
- Port Type: SAE 8 for versatile compatibility.
- Action: Double acting design for efficient operation.
- Style: Welded for increased strength under pressure.
- Application: Suitable for various hydraulic systems and industrial equipment.
Note: Chrome-plated rod is NOT induction hardened. Misuse may result in damage not covered under warranty!
Order your WCLN3x36 Hydraulic Cylinder today for reliable, high-performance hydraulic solutions!
Contact Information:
If you need assistance choosing the right hydraulic cylinder or have questions, please contact us at (800) 823-4937.
