Bestseller
High-performance 5″ bore x 12″ stroke hydraulic cylinder with a 58,900 lb column load capacity. Built for durability.
| Weight | 92.0 lbs |
|---|---|
| Dimensions | 24 × 7 × 7 in |
| Cylinder Bore | 5" |
| Cylinder Stroke Ranges | 12 |
| Cylinder Extended Length | 36.25 |
| Cylinder Style | Tie-Rod |
| Cylinder Retracted Length | 24.25 |
| Cylinder Port Size | ORB – 12 |
| Manufacturer | Bailey International |
| Cylinder Rod Diameter | 2 in |
| Cylinder Column Load | 58900 lbs |
Experience the power and reliability of the 5″ Bore x 12″ Stroke Hydraulic Cylinder from Chief, a proud member of the Bailey family. Engineered for tough applications, this heavy-duty cylinder is designed to deliver superior performance and longevity, making it an essential tool for any hydraulic system.
- Bore Size: 5 inches
- Stroke Length: 12 inches
- Extended Length: 36.25 inches
- Retracted Length: 24.25 inches
- Column Load Capacity: 58,900 lbs
- Ports: SAE 12 ports
- Engineered for dependable operation in various applications.
- Quality construction ensures durability and resilience.
- Ready for immediate shipping to meet your project timelines.
- Compatible with a wide range of machinery and equipment.
This hydraulic cylinder is built with precise engineering and high-quality materials to ensure optimal performance under pressure. It’s perfect for both industrial and agricultural applications, providing the strength needed to manage heavy loads efficiently.
Usage Information:
To Maximize the lifespan and performance of your hydraulic cylinder, ensure proper installation and maintenance are followed. Regularly check for leaks and wear, and replace seals or components as necessary to sustain its operation.
Product Series: This hydraulic cylinder is part of a series known for outstanding reliability and performance across various industries, ensuring you have the right tool for your hydraulic needs.
If you have any questions regarding compatibility or need help selecting the right hydraulic solution, feel free to reach out to us at (800) 823-4937.
Take Action:
Don’t miss out on enhancing your hydraulic system with the Chief 5″ Bore x 12″ Stroke Hydraulic Cylinder. Click the “Add to Cart” button now to secure your order and experience unmatched performance!

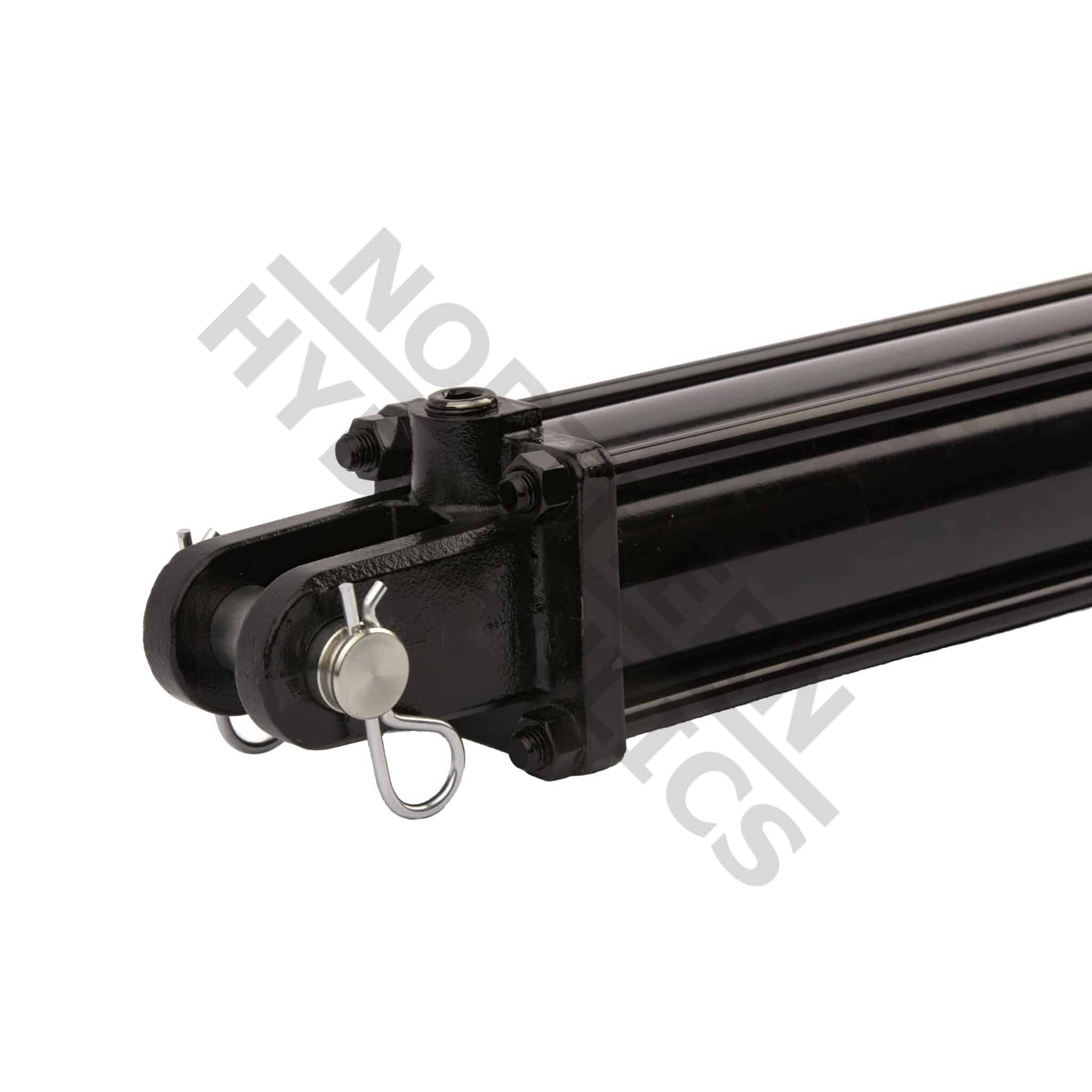

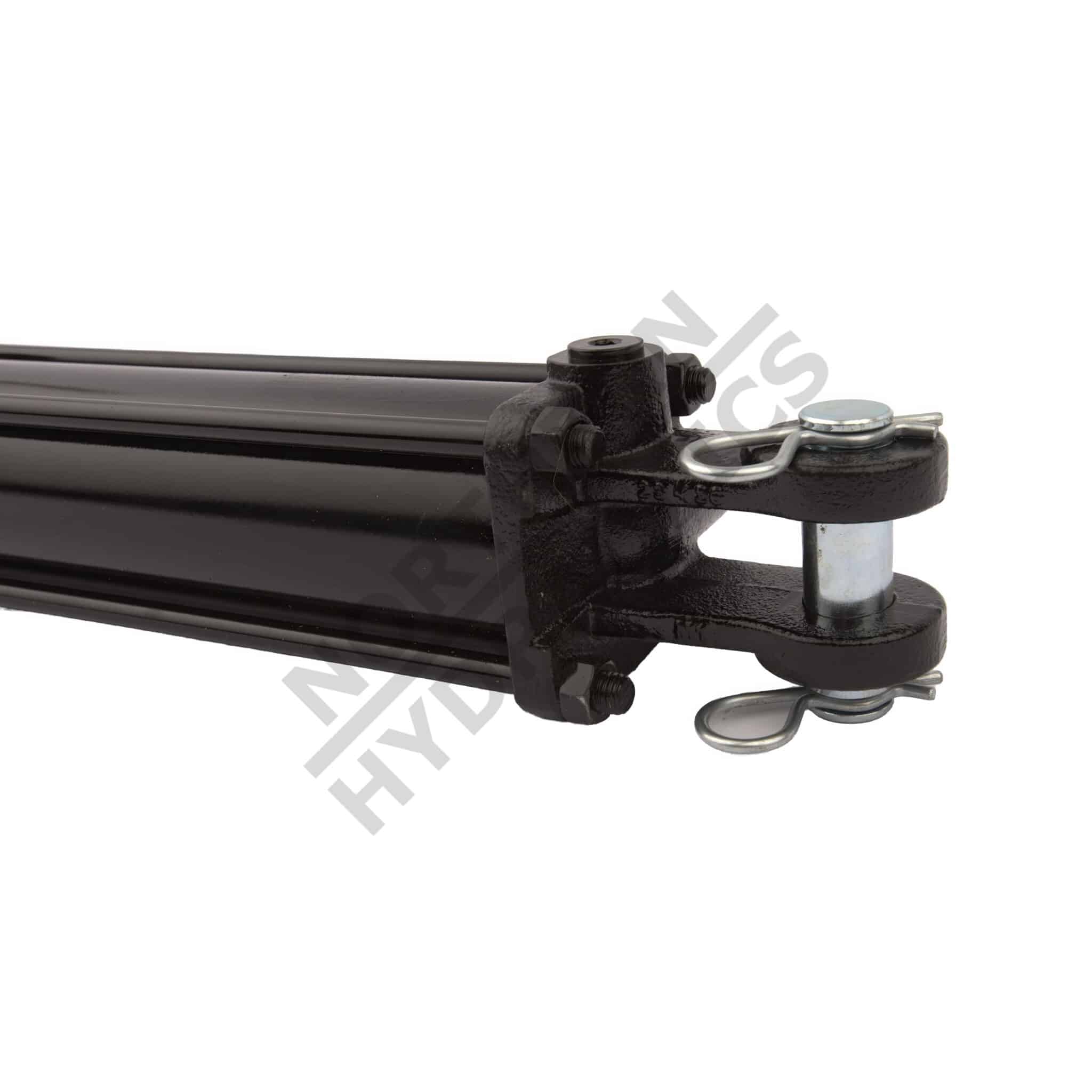

5″ Bore x 12″ Stroke Hydraulic Cylinder – Chief by Bailey
$562.94
In stock
No sales tax
Expected delivery Aug 17 - Aug 21
Fit up perfect on our press and it moves smooth under load. Only thing I'll say is the paint was chipped in one spot when it arrived, not a big deal but worth noting. Overall happy with it.
Does exactly what we needed on our firewood processor. Only giving it four stars because the instruction sheet was basically useless but honestly that's minor. Cylinder itself is well made.
Dropped this into a homemade wood splitter frame and everything lined up without any fuss. Heavy duty feel, ports are clean, no leaks after first pressurization. Shipping was faster than expected too.
Got it running on a shop-built tilt table. It operates fine but I feel like the retract is a little slower than I expected compared to my old cylinder — could be my setup, hard to say. Not complaining, just something I noticed. Does what it needs to do.
no complaints
