Home » Hydraulics Shop » 5″ x 48″ Double Acting Hydraulic Cylinder | Magister
Shop durable 5.5″ x 48″ hydraulic cylinder with 3500 PSI and 37,700 lbs load capacity. Perfect for various applications—free shipping within the US!
| Weight | 179.0 lbs |
|---|---|
| Dimensions | 60 × 7 × 7 in |
| Cylinder Bore | 5" |
| Cylinder Stroke Ranges | 48 |
| Cylinder Extended Length | 107 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 59 |
| Cylinder Port Size | ORB – 12 |
| Manufacturer | Magister Hydraulics, MagisterHyd |
| Cylinder Outer Diameter | 5.5 in |
| Cylinder Rod Diameter | 2.5 in |
| Cylinder Overall Length | 60.5 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 37,700 lbs |
| Cylinder Oil Volume | 16.31 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |

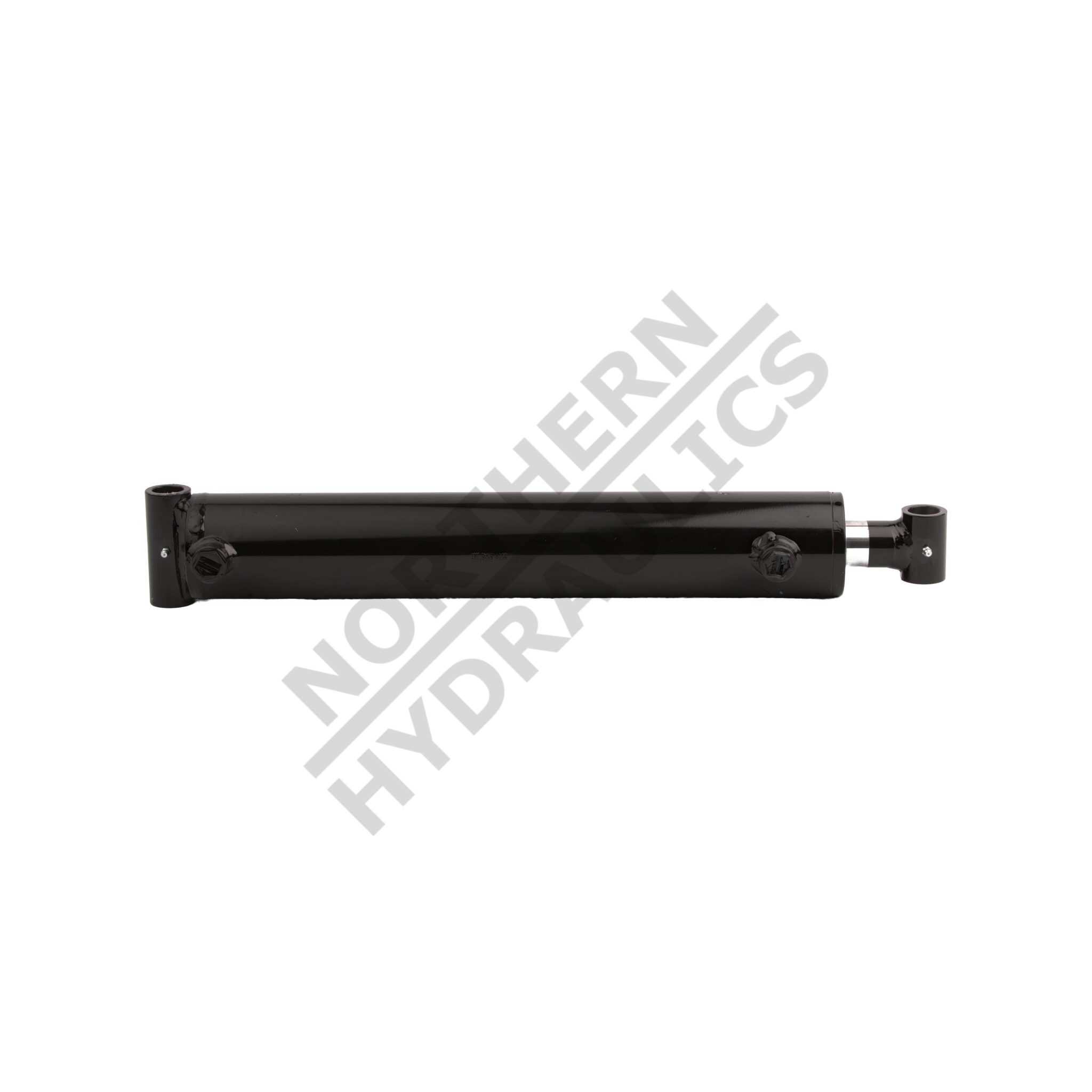

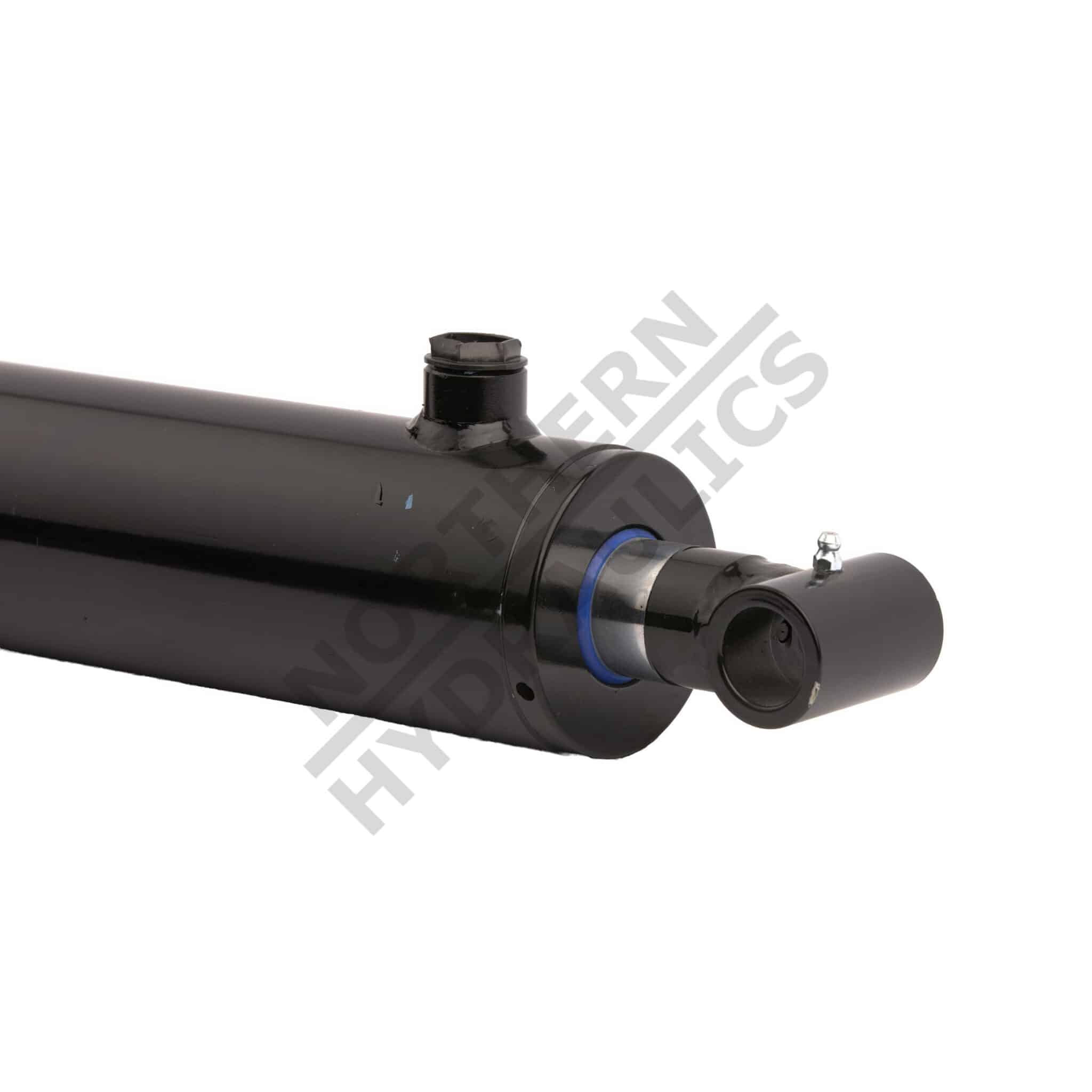

The WCTN5x48 hydraulic cylinder is designed for heavy-duty applications, providing outstanding performance with a robust construction. Capable of handling up to 37,700 lbs of load and featuring a maximum pressure rating of 3500 PSI, this double acting cylinder is a reliable choice for all your hydraulic needs.
This hydraulic cylinder is perfect for various machinery and hydraulic systems, offering reliable performance and durability. Some key features include:
Same-Day Shipping: All orders made until 3 PM will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping!
If you have any questions or need assistance in choosing the proper hydraulic cylinder replacement, please contact us at (800) 823-4937.
This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.
SKU: WCTN5x48
$1,099.00
You must be logged in to post a review.
Leave your number and a good time — one of our hydraulic specialists will call you back.




Waited two and a half weeks for this to show up and when it finally did one of the cross tube bushings was already loose. Had to take time out of my day to deal with it. Expected better quality control for the price.
Cylinder itself seems functional but the chrome on the rod has a couple of small scratches right out of the box. Worried about premature wear and seal damage down the road. Probably fine for a low-use application but I'm running this thing daily so I'm not confident.
Put this on a log splitter build and it's been running hard with zero problems. Welds look clean, seals are tight, thing's a tank.
Cylinder is exactly what I needed and it's performing well, just took longer to arrive than the estimate said. Once it got here I was pleased, just something to be aware of.
works great
