Shop the WCTN2x32 hydraulic cylinder with a 32″ stroke and 3500 PSI capacity. Perfect for heavy-duty applications. Fast shipping!
Specifications
| Weight | 31 lbs |
|---|---|
| Dimensions | 44 × 4 × 4 in |
| Cylinder Bore | 2" |
| Cylinder Stroke Ranges | 32 |
| Cylinder Extended Length | 72 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 40 |
| Cylinder Port Size | ORB – 6 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.38 in |
| Cylinder Rod Diameter | 1.25 in |
| Cylinder Overall Length | 41.5 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 5,200 lbs |
| Cylinder Oil Volume | 1.74 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |
Overview

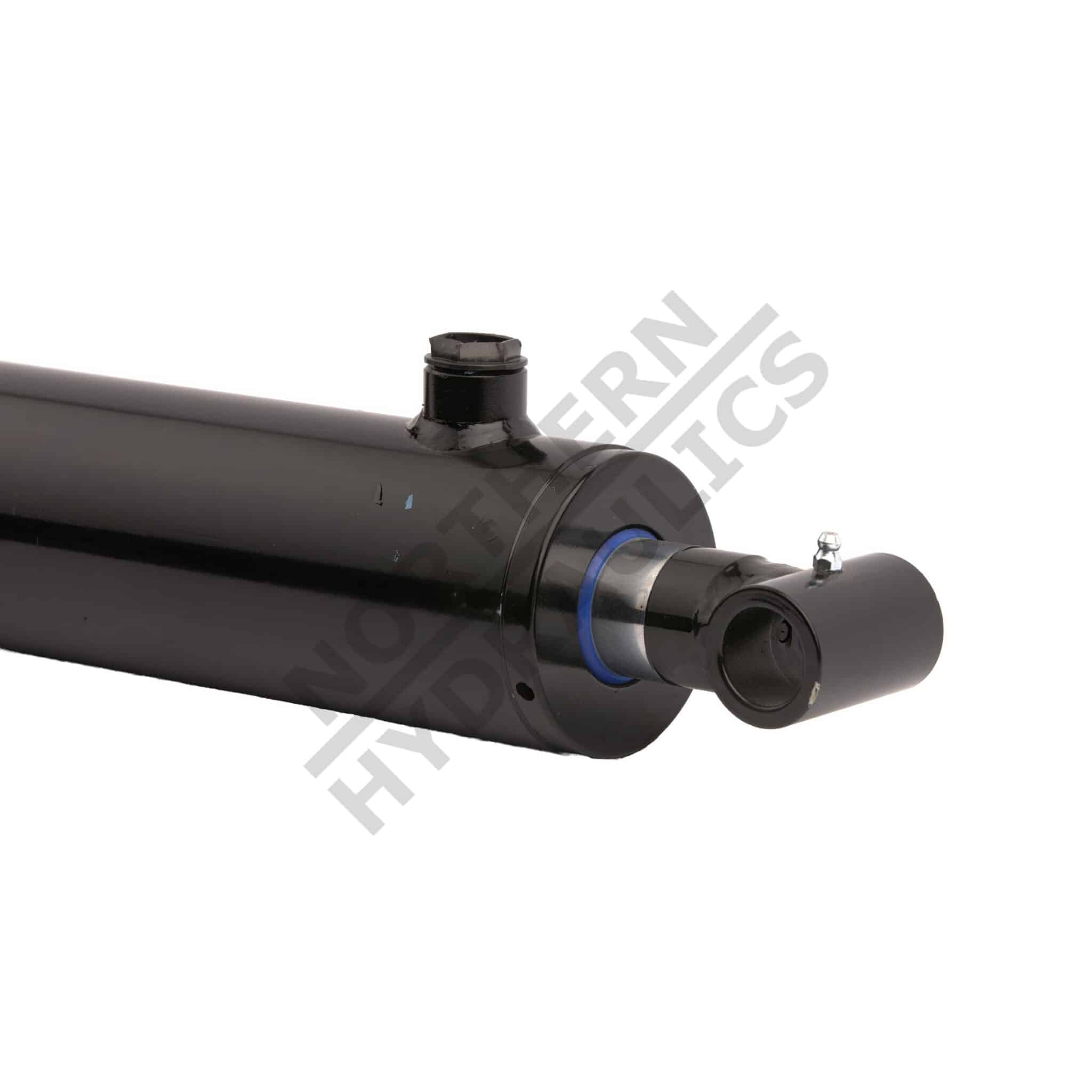

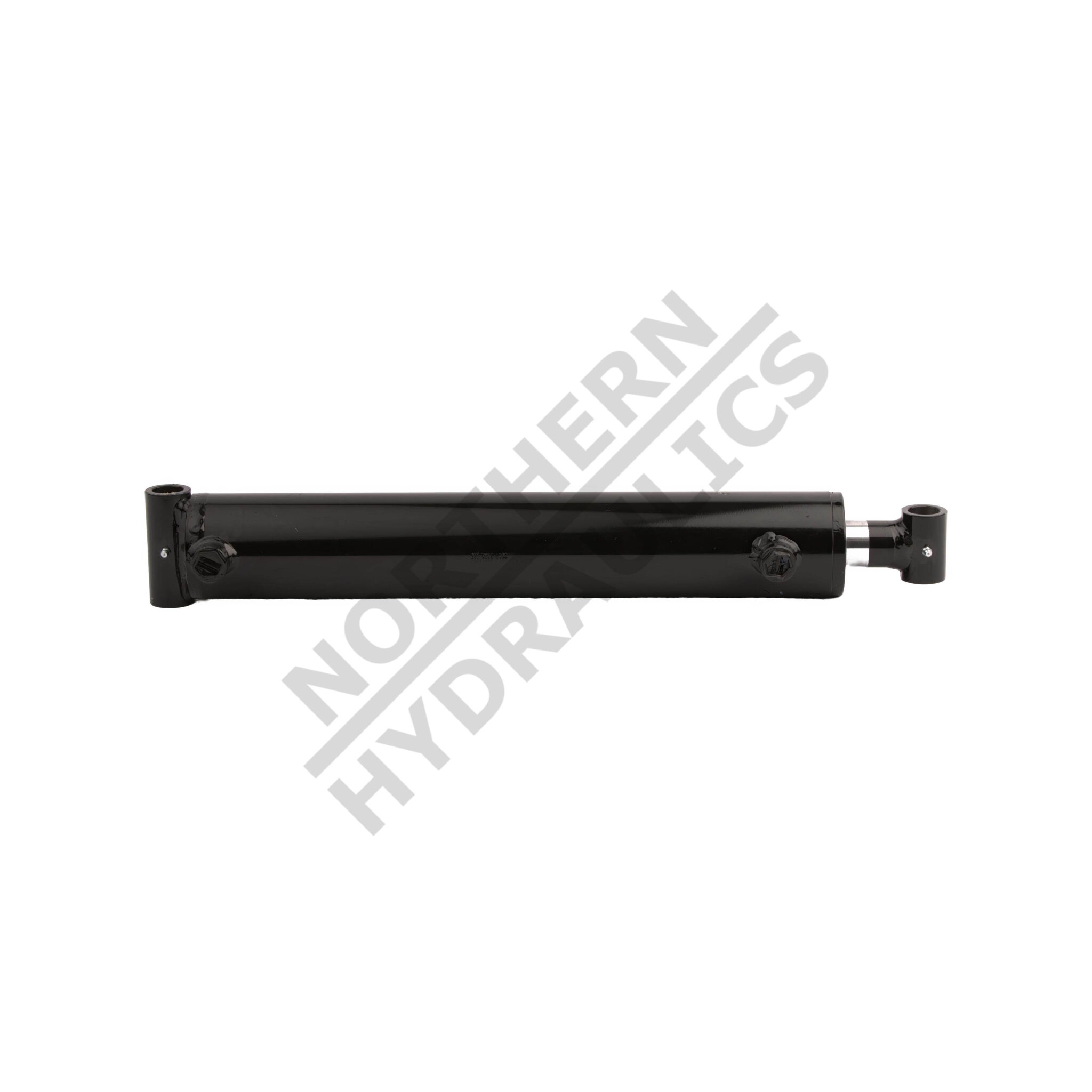

WCTN2x32 Hydraulic Cylinder
The WCTN2x32 is a robust hydraulic cylinder meticulously designed for demanding machinery needs. With a powerful 32″ stroke and capable of handling pressures up to 3500 PSI, this cylinder is an excellent choice for heavy-duty applications in various industries.
- Outer Diameter: 2.38 in
- Rod Diameter: 1.25 in
- Overall Length: 41.5 in
- Extended Length: 72 in
- Retracted Length: 40 in
- Column Load: 5,200 LBs
- Oil Volume: 1.74 QTs
- Rod Type: Chrome Plated
- Rod End: Cross Tube
- Action: Double Acting
- Style: Welded
- Ports: SAE 6
- Warranty: 2-year warranty for quality assurance
This versatile hydraulic cylinder is suitable for various applications, including construction, agriculture, and industrial machinery. The welded construction not only provides strength but also durability in extreme operating conditions.
