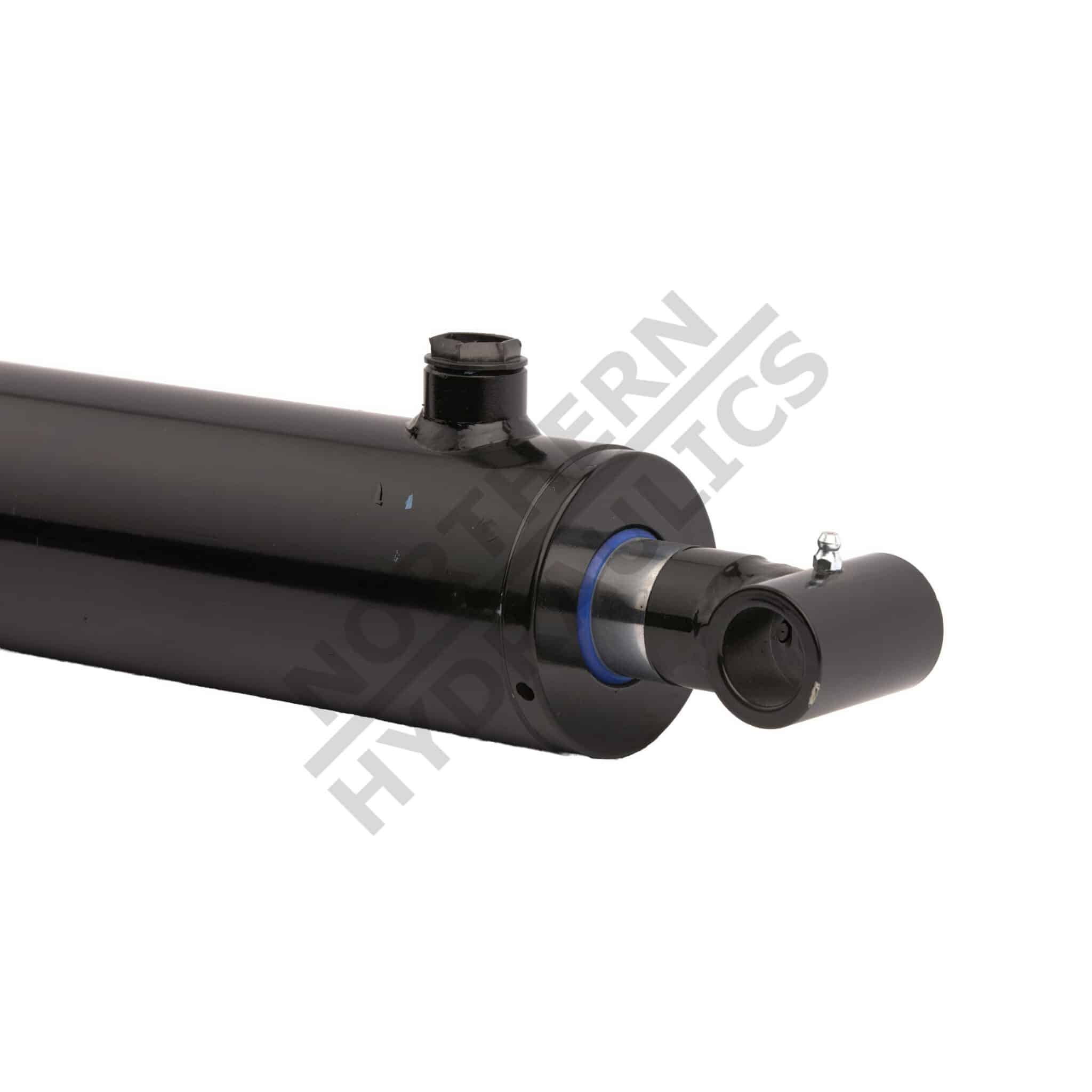

Shop the WCTN6x24 hydraulic cylinder with a 24″ stroke and 3500 PSI pressure. Heavy-duty, double acting, includes cross tube and chrome plated rod. Order now!
| Weight | 186.0 lbs |
|---|---|
| Dimensions | 36 × 7 × 7 in |
| Cylinder Bore | 6" |
| Cylinder Stroke Ranges | 24 |
| Cylinder Extended Length | 59 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 35 |
| Cylinder Port Size | ORB – 12 |
| Cylinder Outer Diameter | 6.625 in |
| Cylinder Rod Diameter | 3 in |
| Cylinder Overall Length | 37.5 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 83,100 lbs |
| Cylinder Oil Volume | 12.74 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |
| Manufacturer | MagisterHyd |
- Model: WCTN6x24 Hydraulic Cylinder
- Bore Diameter: 6.625 inches
- Rod Diameter: 3 inches
- Overall Length: 37.5 inches
- Stroke Length: 24 inches
- Extended Length: 59 inches
- Retracted Length: 35 inches
- Pressure Rating: 3500 PSI
- Column Load Capacity: 83,100 lbs
- Oil Volume: 12.74 quarts
- Rod Type: Chrome Plated
- Action: Double Acting
- Rod End: Cross Tube
- Ports: SAE 12
- Style: Welded
The WCTN6x24 hydraulic cylinder is designed for heavy-duty applications requiring robust performance and durability. With its 3500 PSI rating and a powerful column load capacity of 83,100 lbs, this double-acting cylinder is perfect for construction and industrial machinery.
Key Features:
- Constructed with a chrome-plated rod for enhanced corrosion resistance and longevity.
- Welded design ensures structural integrity even under extreme conditions.
- Cross tube configuration allows easy integration into various machinery setups.
- Ideal for replacing older or malfunctioning hydraulic components in your equipment.
Usage Instructions:
When installing the WCTN6x24 hydraulic cylinder, ensure that all connections are properly secured. Check the hydraulic oil levels and leak tests before operation. Refer to the manufacturer’s manual for specific installation instructions and safety precautions.
Note: Ensure the appropriate dimensions and specifications match your existing systems before purchase.
Experience the reliability and efficiency of Northern Hydraulics products.
If you require further assistance, feel free to contact us at (800) 823-4937.
Trusted Manufacturing Partnership
This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.
WCTN6x24 24″ Hydraulic Cylinder | Magister 3500 PSI
Contact us for pricing
Price on request
This item is quoted individually. Most quote requests are answered the same business day.
