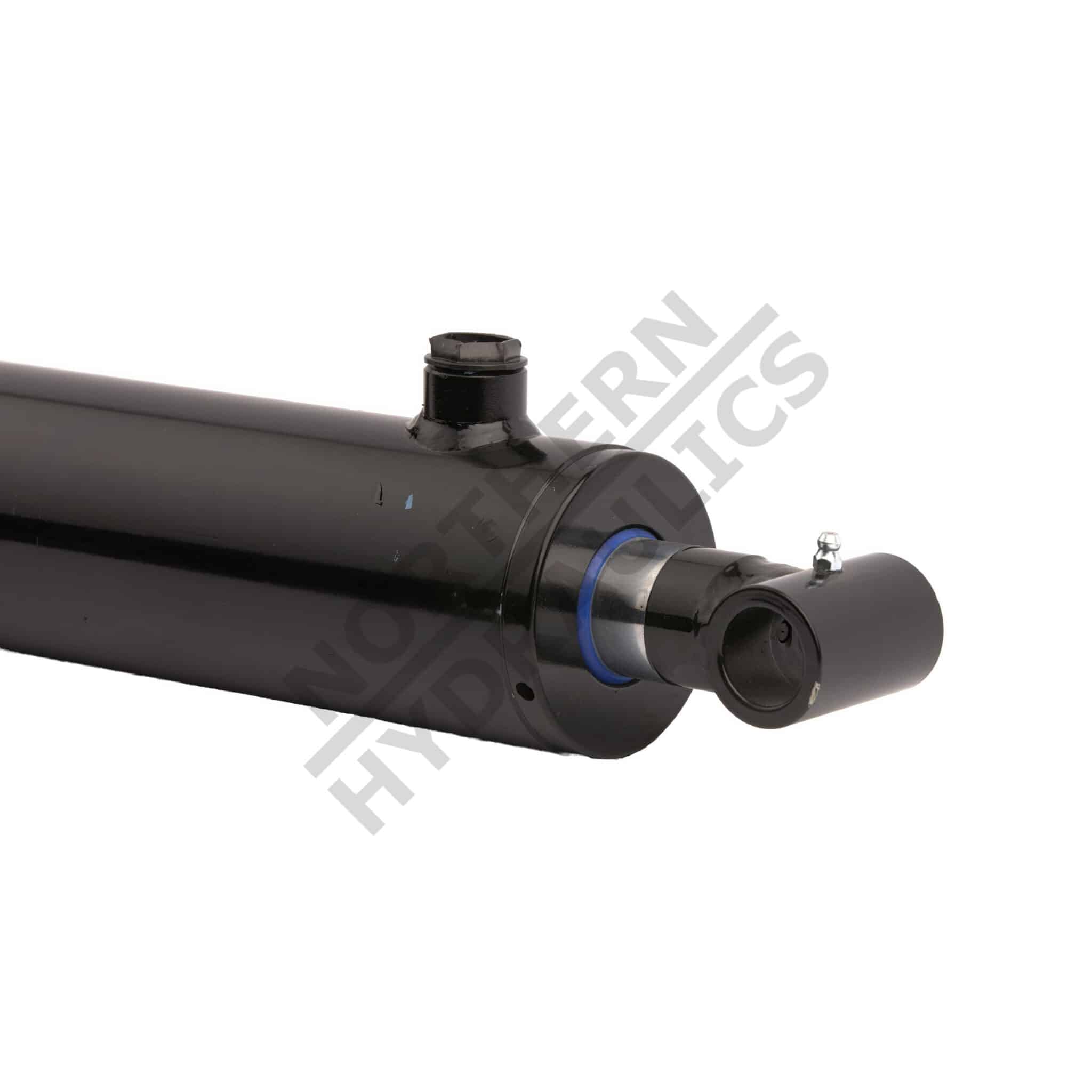

Explore our 2.5" bore x 6" stroke hydraulic cylinder, capable of 3500 PSI, perfect for heavy-duty applications. Free ground shipping across the Continental US.

Specifications
Weight 16 lbs
Dimensions 18 × 4 × 4 in
Cylinder Bore

2.5"

Cylinder Stroke Ranges

6

Cylinder Extended Length

20

Cylinder Style

Welded

Cylinder Retracted Length

14

Cylinder Port Size

ORB – 8

Manufacturers

Northern Hydraulics

Cylinder Outer Diameter

2.875 in

Cylinder Rod Diameter

1.5 in

Cylinder Overall Length

15.5 in

Cylinder PSI

3500 PSI

Cylinder Column Load

14,700 lbs

Cylinder Oil Volume

0.51 qts

Cylinder Rod Type

Chrome Plated

Cylinder Rod End

Cross Tube

Cylinder Action

Double Acting

Overview
  • Hydraulic Cylinder Specs: 2.5″ bore x 6″ stroke, double-acting hydraulic cylinder with a maximum pressure of 3500 PSI.
  • Durable Design: Made with a chrome-plated rod and welded construction for enhanced durability.
  • Load Capacity: Can handle a column load of 14,700 LBs, making it ideal for heavy-duty applications.
  • Overall Length: At 15.5 inches, it retracts to 14 inches and extends to 20 inches, providing versatility in various applications.
  • Fluid Capacity: Holds an oil volume of 0.51 QTs, suitable for most hydraulic systems.
  • Cross Tube Configuration: Designed with a cross tube rod end for easy installation and adaptability.

NOTE: Ensure proper mounting to prevent potential damage. Misuse or incorrect measurements can lead to a bent rod, which is not covered under warranty.

Experience seamless operation with our hydraulic cylinder, featuring honed cold-drawn tubing, hard chrome plated rod, and top quality five-component piston seals for reliability even in extreme conditions.

Why Choose Northern Hydraulics? We provide sturdy hydraulic solutions built to last, offering a 2-year warranty and free ground shipping across the Continental US on all purchases. Ideal for industrial free shipping!

For expert assistance in selecting the right hydraulic cylinder for your needs, please reach out to us at (800) 823-4937.
