Purchase the WCTN2x28 double acting hydraulic cylinder with 28″ stroke, 3500 PSI, and robust design. Perfect for heavy lifting. Free shipping!
Specifications
| Weight | 28 lbs |
|---|---|
| Dimensions | 40 × 4 × 4 in |
| Cylinder Bore | 2" |
| Cylinder Stroke Ranges | 28 |
| Cylinder Extended Length | 64 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 36 |
| Cylinder Port Size | ORB – 6 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.38 in |
| Cylinder Rod Diameter | 1.25 in |
| Cylinder Overall Length | 37.5 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 6,200 lbs |
| Cylinder Oil Volume | 1.52 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |
Overview

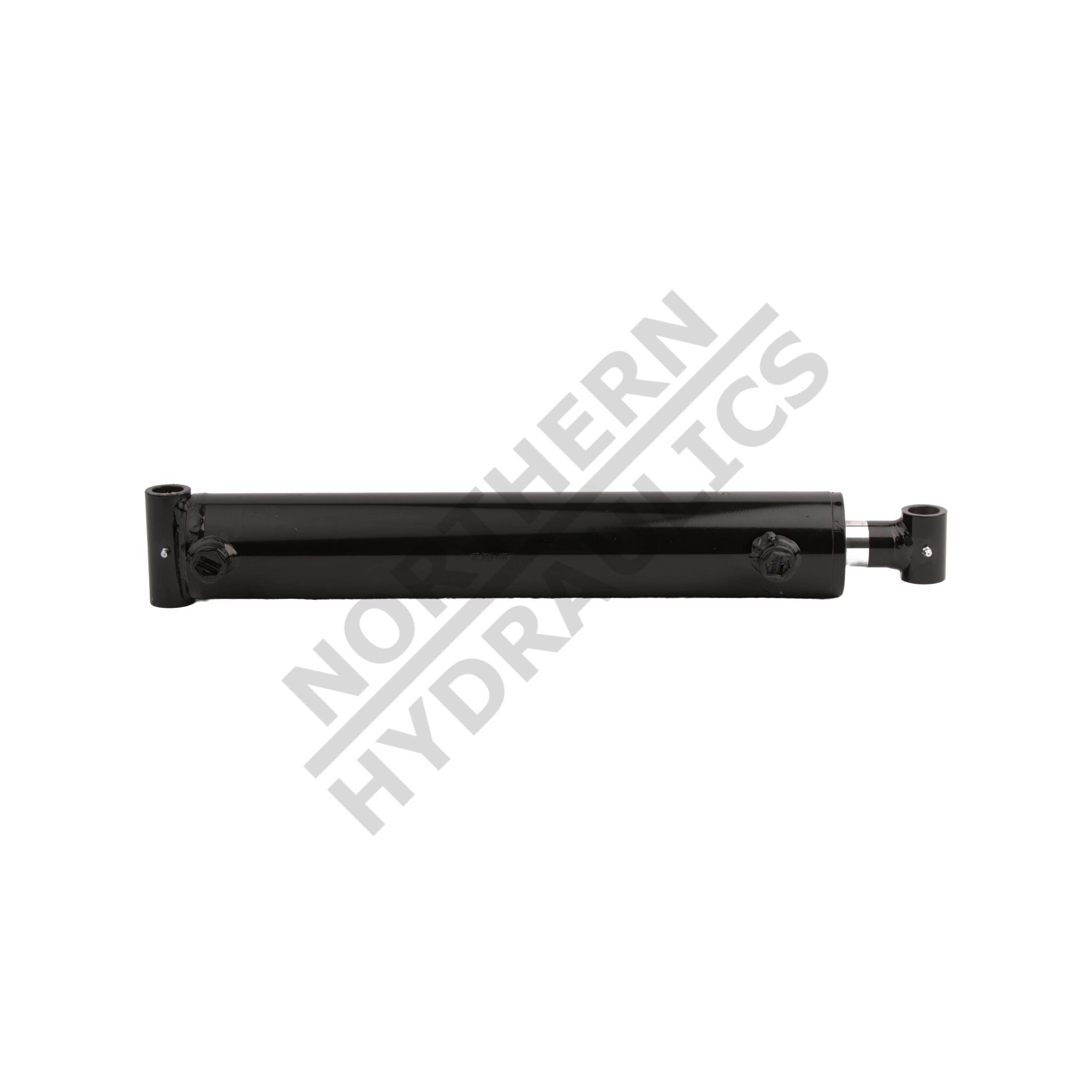

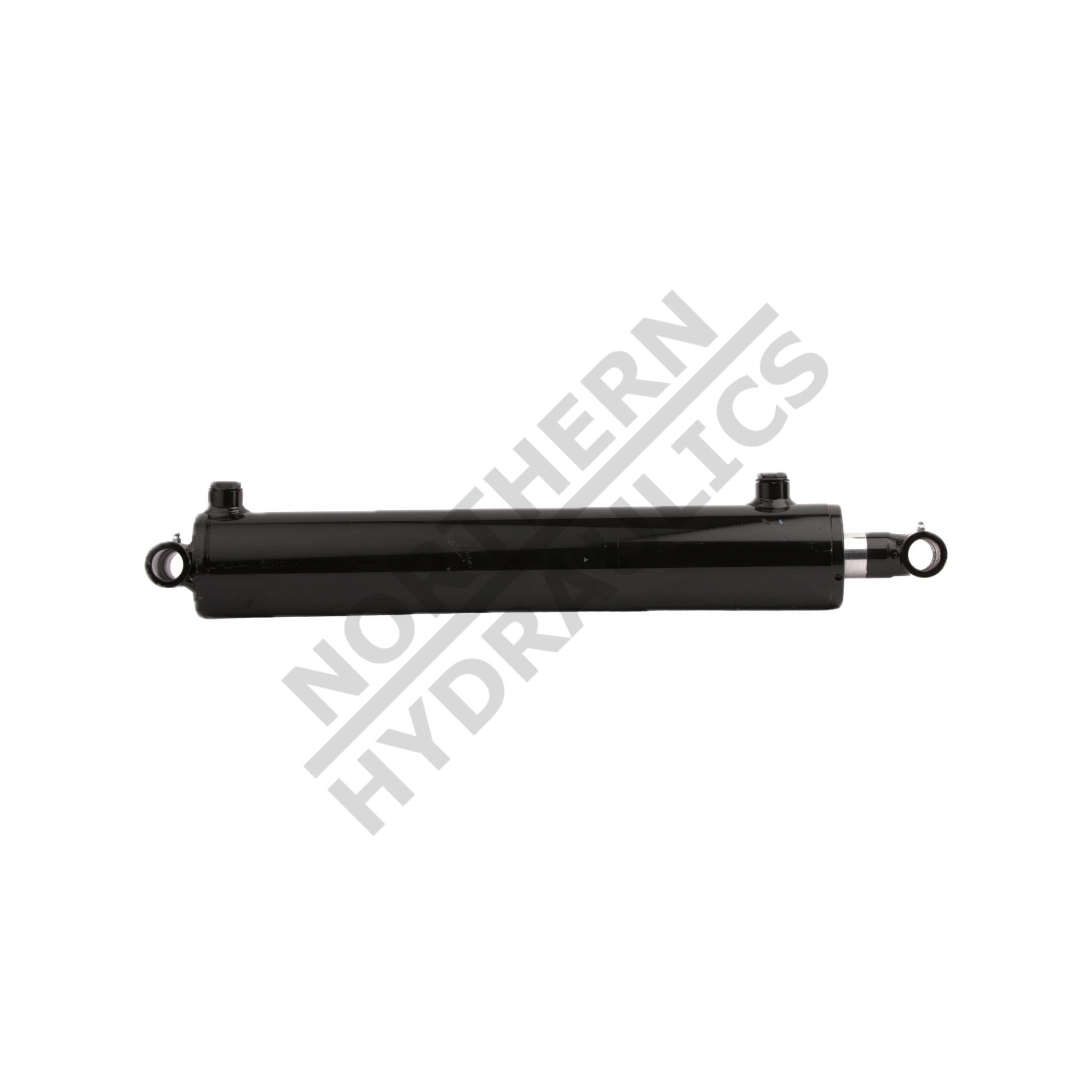

Introducing the WCTN2x28 Double Acting Hydraulic Cylinder
The WCTN2x28 hydraulic cylinder combines remarkable power with rugged durability, making it the ideal solution for heavy-duty applications. With a robust construction designed to withstand extreme conditions, this cylinder is perfect for various industries, including agriculture, construction, and manufacturing.
- Specifications:
- Outer Diameter: 2.38 inches
- Rod Diameter: 1.25 inches
- Overall Length: 37.5 inches
- Stroke Length: 28 inches
- Extended Length: 64 inches
- Retracted Length: 36 inches
- Pressure Rating: 3500 PSI
- Column Load Capacity: 6,200 lbs
- Oil Volume: 1.52 quarts
- Rod Type: Chrome Plated
- Rod End Type: Cross Tube
- Style: Welded
- Ports: SAE 6
- Action: Double Acting
Key Features:
- High strength design capable of delivering 3500 PSI, ensuring maximum performance.
- Double acting functionality allows for efficient and effective operation.
- Chrome plated rod enhances durability and reduces wear.
- The cross tube rod end design provides easier installation and maintenance.
- Lightweight construction at only 28 lbs for easy handling.
Usage Information:
This hydraulic cylinder is suitable for a wide range of applications, including but not limited to, front-end loaders, excavators, and other machinery requiring powerful hydraulic support. For optimal performance, ensure regular inspection and maintenance.
Shipping & Handling:
Same-Day Shipping: All orders made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Shipping in the Continental US!
The WCTN2x28 Hydraulic Cylinder is designed and manufactured by Northern Hydraulics, a trusted name in hydraulic solutions. For any questions about selecting the right hydraulic cylinder, do not hesitate to contact us at (800) 823-4937.
