Shop WCTN2.5×18 Hydraulic Cylinder with 18 in stroke & 3500 PSI. Durable welded design, free ground shipping, and 2-year warranty available.
Specifications
| Weight | 27 lbs |
|---|---|
| Dimensions | 30 × 4 × 4 in |
| Cylinder Bore | 2.5" |
| Cylinder Stroke Ranges | 18 |
| Cylinder Extended Length | 44 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 26 |
| Cylinder Port Size | ORB – 8 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.875 in |
| Cylinder Rod Diameter | 1.5 in |
| Cylinder Overall Length | 27.5 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 14,700 lbs |
| Cylinder Oil Volume | 1.53 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |
Overview

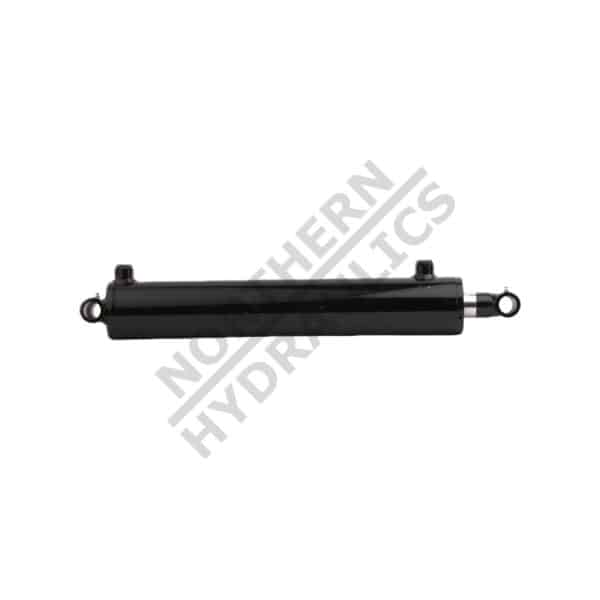

Introducing the WCTN2.5×18 Double Acting Hydraulic Cylinder, a robust hydraulic solution designed for efficiency and heavy-duty performance. With a generous capacity of 14,700 LBs column load and a 3500 PSI pressure rating, this cylinder is built to handle demanding applications with ease.
- Specifications:
- Outer Diameter: 2.875 in
- Rod Diameter: 1.5 in
- Overall Length: 27.5 in
- Stroke Length: 18 in
- Extended Length: 44 in
- Retracted Length: 26 in
- Oil Volume Capacity: 1.53 QTs
- Rod Type: Chrome Plated
- Rod End Type: Cross Tube
- Action: Double Acting
- Manufacturer: Northern Hydraulics
- Ports: SAE 8
This welded hydraulic cylinder stands out for its durability and reliability, making it perfect for a wide range of applications including agriculture, construction, and industrial machinery. Designed for heavy-duty use, it ensures maximum operational efficiency and longevity.
Additional Benefits:
- Free Ground Shipping on all orders.
- 2-Year Warranty for enhanced peace of mind.
- Heavy-duty construction to withstand harsh conditions.
- Compatible with various industrial applications.
For further assistance or inquiries about selecting the right equipment, please feel free to contact us at (800) 823-4937.
Order the WCTN2.5×18 Hydraulic Cylinder today and experience unparalleled performance in all your hydraulic applications!
WCTN2.5×18 Double Acting Hydraulic Cylinder – 2.875 in Outer Dia, 3500 PSI
SKU: WCTN2.5x18
$256.99 -7% $239.00
