2.5″ bore x 32″ stroke hydraulic cylinder with 3500 PSI. Double acting, 10,600 lbs column load, chrome plated rod. Free shipping on orders over $200.
Specifications
| Weight | 42 lbs |
|---|---|
| Dimensions | 44 × 4 × 4 in |
| Cylinder Bore | 2.5" |
| Cylinder Stroke Ranges | 32 |
| Cylinder Extended Length | 72 |
| Cylinder Style | Welded |
| Cylinder Retracted Length | 40 |
| Cylinder Port Size | ORB – 8 |
| Manufacturers | Northern Hydraulics |
| Cylinder Outer Diameter | 2.875 in |
| Cylinder Rod Diameter | 1.5 in |
| Cylinder Overall Length | 41.5 in |
| Cylinder PSI | 3500 PSI |
| Cylinder Column Load | 10,600 lbs |
| Cylinder Oil Volume | 2.72 qts |
| Cylinder Rod Type | Chrome Plated |
| Cylinder Rod End | Cross Tube |
| Cylinder Action | Double Acting |
Overview
- Specifications:
- Bore Diameter: 2.5 inches
- Stroke Length: 32 inches
- Overall Length: 41.5 inches
- Extended Length: 72 inches
- Retracted Length: 40 inches
- Maximum Pressure: 3500 PSI
- Column Load Capacity: 10,600 lbs
- Oil Volume: 2.72 quarts
- Rod Type: Chrome Plated
- Rod Diameter: 1.5 inches
- Rod End: Cross Tube
- Action: Double Acting
- Ports: SAE 8
- Style: Welded

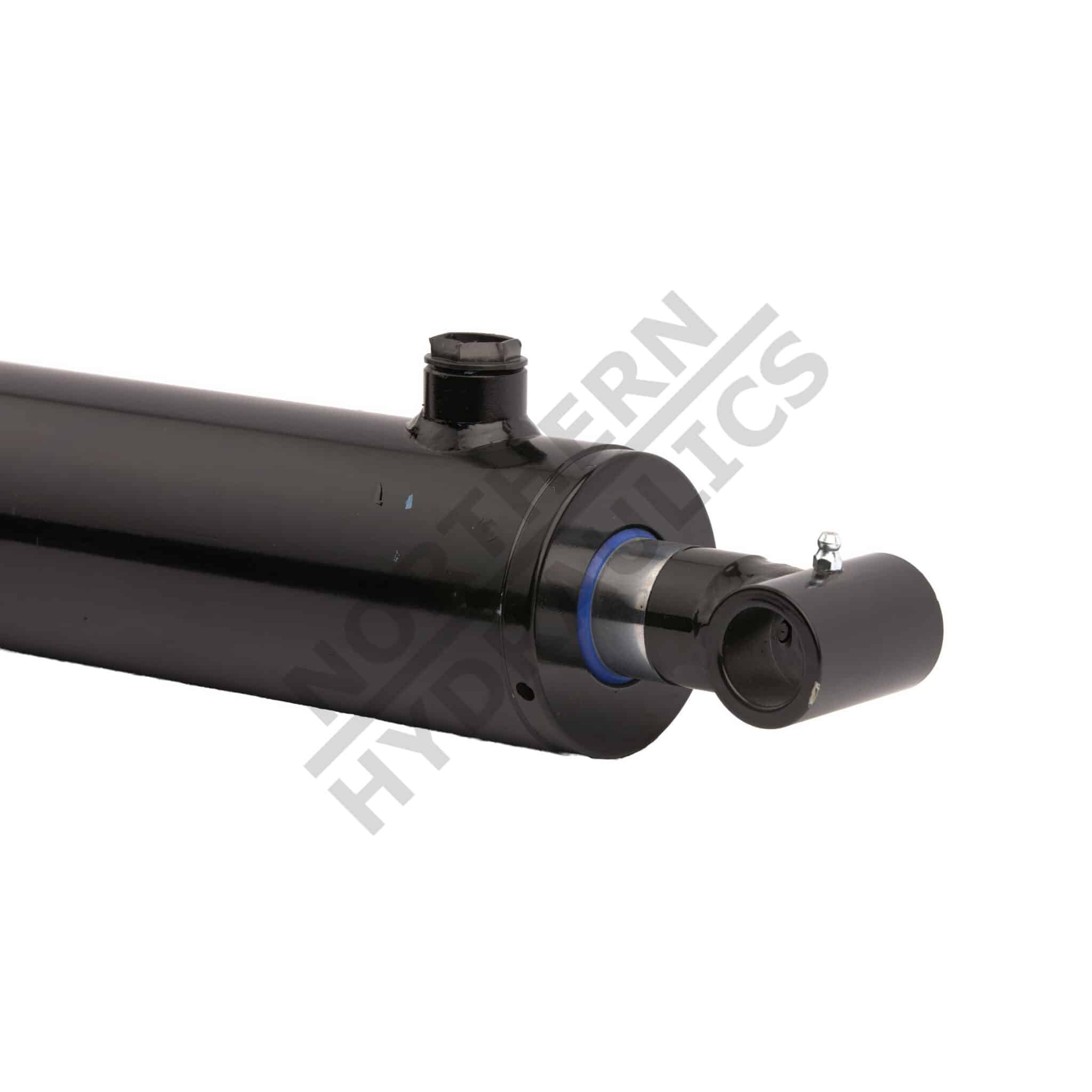

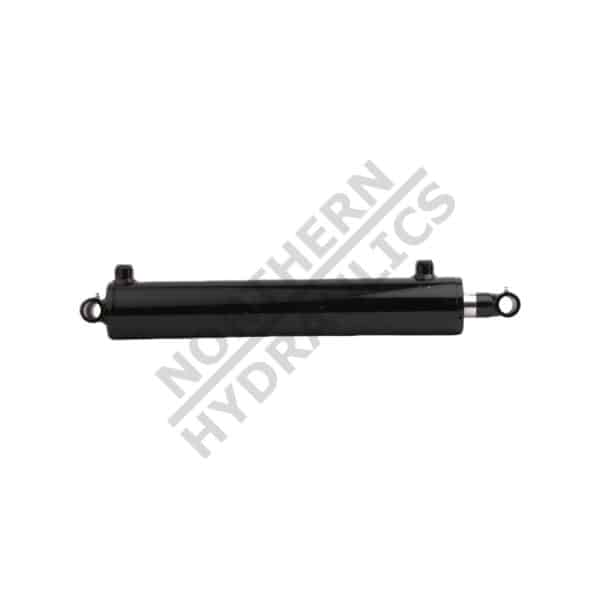

Experience heavy-duty performance with the WCTN2.5×32 hydraulic cylinder, a remarkable product from Northern Hydraulics. Boasting a 2.5-inch bore and an impressive 32-inch stroke, this hydraulic cylinder is engineered to provide reliable operation and outstanding strength.
This double-acting cylinder can handle up to 3500 PSI and offers a column load capacity of 10,600 lbs, making it the ideal choice for various industrial applications, including construction and manufacturing. Plus, the chrome-plated rod ensures durability and long-lasting performance in tough conditions.
Features:
- Heavy-duty performance designed for industrial use.
- Double-acting action for effective and versatile operation.
- High strength construction with welded style for enhanced stability.
- Chrome plated rod for increased resistance to wear and corrosion.
- Efficient oil volume of 2.72 quarts to maintain reliable functionality.
- Quick installation with convenient SAE 8 ports.
Usage Information:
The WCTN2.5×32 hydraulic cylinder can be used effectively in various applications, including lifting, pushing, and pulling tasks in machinery. It is compatible with hydraulic systems and can be easily integrated into existing setups without complication.
For proper maintenance, ensure regular inspections and check hydraulic fluid levels. Follow all manufacturer guidelines for operational safety and performance.
With Northern Hydraulics, you can trust that you are receiving a high-quality hydraulic cylinder built to withstand rigorous applications. We offer free shipping on orders over $200 within the continental US.
Order now to enhance your hydraulic systems with the WCTN2.5×32 hydraulic cylinder and experience the durability that comes with Northern Hydraulics!
